(9B-32) - AUGER BED

Запчасти Case IH 2144 (9B-32) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE

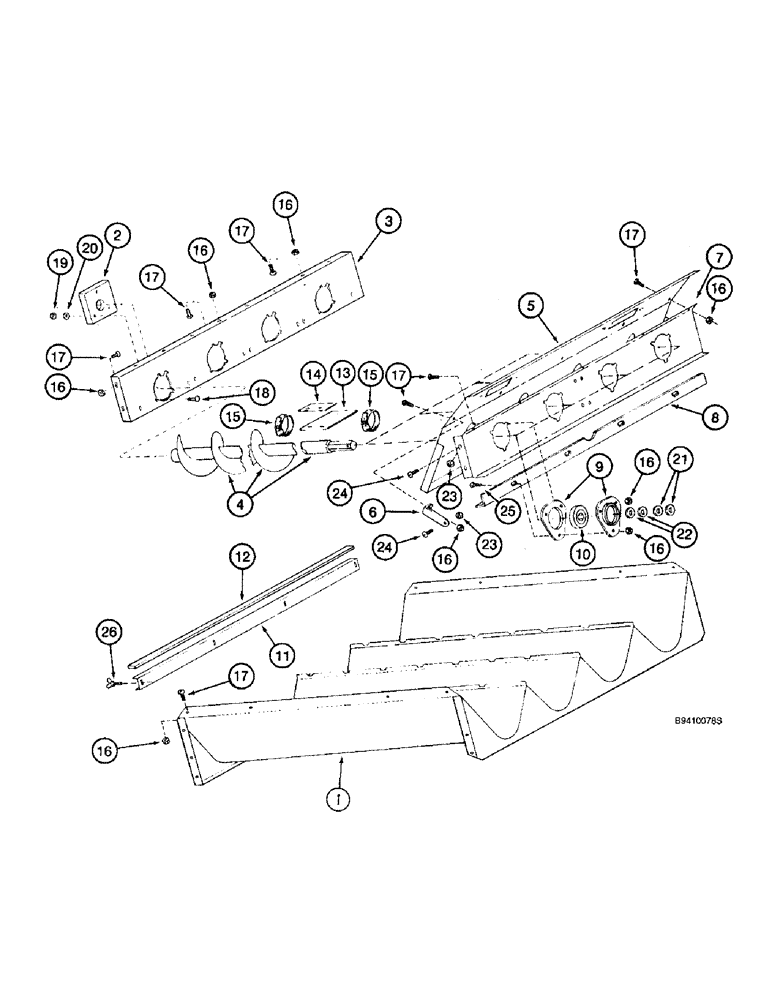

Схема запчастей Case IH 2144 - (9B-32) - AUGER BED (14) - ROTOR, CONCANVES & SIEVE
13
16
5
17
23
21
19
22
16
7
2
9
16
18
20
16
10
15
6
17
16
23
15
16
17
8
17
16
25
1
14
17
4
16
3
12
26
17
24
24
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

185038C6

TROUGH ASSY.

TROUGH - auger

1шт.

2

193414C2

BOARD

- front auger bearing

4шт.

3

1345013C3

SUPPORT

- center, front auger

1шт.

4

1308541C1

AUGER

- right-hand rotation

4шт.

5

1321373C1

PLATE

PANEL - filler, rotor to auger drive

1шт.

6

193554C1

SUPPORT

- pan

2шт.

7

1309225C1

SUPPORT

- auger drive gear

1шт.

8

188359C1

ANGLE

- auger support stiffener

1шт.

9

571424R1

FLANGE

- bearing, auger

8шт.

10

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - auger drive

4шт.

11

1319163C91

COVER

ASSEMBLY - auger trough clean out, Includes: Ref. 12

1шт.

12

1309426C1

SEALING STRIP,13mm W x 990mm L x 6mm Thk

- clean out trough cover

1шт.

1300666C91

KIT

- accessory, auger bed grain spreader, no longer available, order components

1шт.

13

1302112C1

STRIP

PLATE - auger bed grain spreader, Includes: Ref. 14 and 15

1шт.

14

1302113C1

BAR

- grain spreader plate

1шт.

15

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

18

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - carriage, 3/8 NC x 2-1/4 inch

12шт.

19

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

12шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

12шт.

21

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch

8шт.

22

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch

8шт.

23

231-5146

FLANGE NUT,3/8"-16

7шт.

25

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

4шт.

26

166667C1

THUMB SCREW,1/4" - 20 x 0.62"

BOLT - wing, clean out cover

4шт.

24

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.
