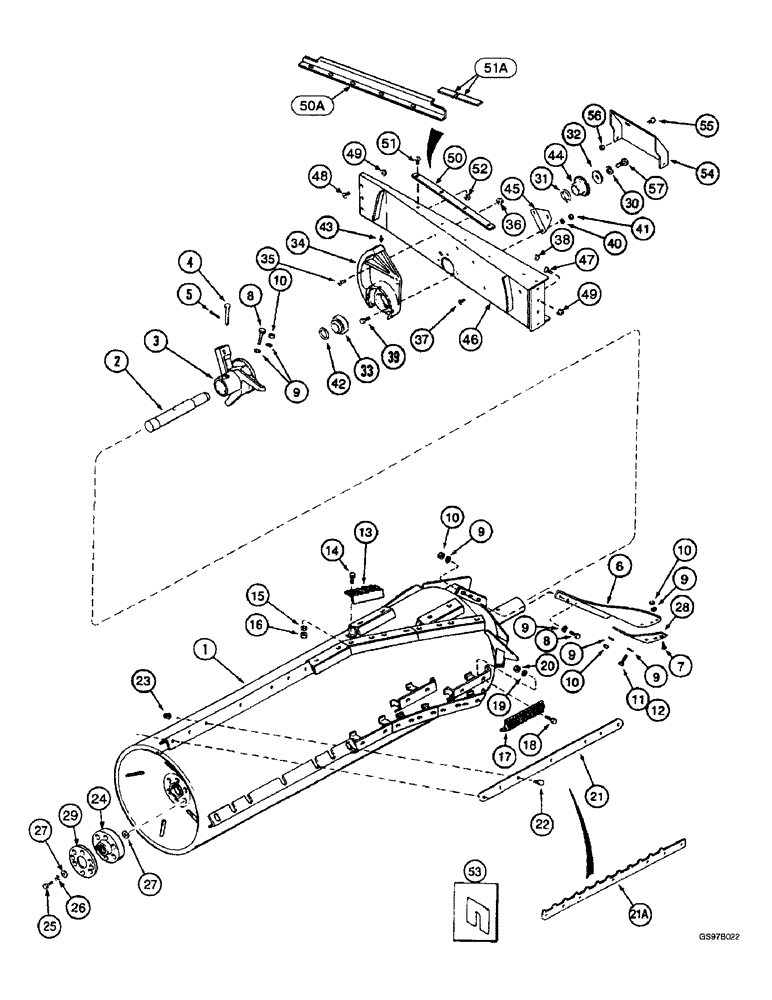

Запчасти Case IH 2144 (9B-10) - ROTOR, GRAIN AND CORN (14) - ROTOR, CONCANVES & SIEVE

1302214C96

ROTOR

ASSEMBLY - threshing, Includes: Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR - threshing, order rotor assembly 1302214C96

1шт.

2

191545C2

SHAFT

- rotor, front

1шт.

3

191546C2

IMPELLER

- rotor, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

1957446C3

SET OF BLADES

KIT - rotor blade, set of 3, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

BLADE - rotor, order kit 1957446C3

3шт.

7

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, 1/2 NC x 1-1/2 inch

9шт.

8

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

9шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

39шт.

10

199528A1

NUT

- hex, self-locking, 1/2 inch NC, grade 8

24шт.

11

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

3шт.

12

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

3шт.

13

1308829C2

BAR

- helical rasp

12шт.

13

1324583C3

BAR

- helical rasp support, chrome

12шт.

Not part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

24шт.

15

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

24шт.

16

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

24шт.

17

1308668C1

RASP BAR

BAR - straight, rasp

9шт.

17

1324582C2

RASP BAR

BAR - straight, rasp, chrome

9шт.

Not part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

18

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

18шт.

19

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

18шт.

20

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

18шт.

21

1303038C2

BAR

- rotor, rear straight

3шт.

21

1324580C2

BAR

- rotor, rear straight, chrome

3шт.

Not part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

21a

1302103C3

BAR

- rotor, with teeth

3шт.

Not part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

22

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

21шт.

23

231-5146

FLANGE NUT,3/8"-16

21шт.

24

1345307C1

COUPLING

- rotor drive

1шт.

25

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

6шт.

Included in Kit 1345453C1

1шт.

26

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

6шт.

Included in Kit 1345453C1

1шт.

27

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch

6шт.

Included in Kit 1345453C1

1шт.

28

183253C3

BAR

PLATE - wear

3шт.

28

1309185C3

BAR

PLATE - wear, chrome

3шт.

Not part of 1302214C96 rotor assembly and must be purchased separately.

1шт.

29

221189A1

SPACER

PLATE - rotor load ring, rear drive

1шт.

Included in Kit 1345453C1

1шт.

30

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

31

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

1345453C1

RUBBER INSULATOR

INSULATOR - rotor drive coupling, not used, not shown

6шт.

Included in Kit 1345453C1

1шт.

140500A1

PACKAGE

KIT - rotor drive hub update, Includes: Ref. 25, 26, 27 & 29

1шт.

32

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, special, 25/32 x 2-1/2 x 1/4 inch, rotor shaft front

1шт.

33

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING - rotor front

1шт.

34

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

35

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

36

231-5146

FLANGE NUT,3/8"-16

2шт.

37

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

2шт.

38

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

39

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

41

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

42

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - flat, special

1шт.

43

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

44

1979965C1

ROTOR

- multi-position tachometer

1шт.

45

1301239C1

BRACKET

- rotor tachometer

1шт.

46

193163C8

SUPPORT

- front bearing

1шт.

47

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

4шт.

48

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

3шт.

49

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

7шт.

50

1308967C1

BAR

- front door hold down, if used

1шт.

50a

231850A1

BAR

RETAINER - rotor front, if used

1шт.

Included in Kit 2252276A1

1шт.

51

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch, four used with bar 1308967C1, item 50, five used with retainer 231850A1, item 50A (Replaces screw 161945C1)

1шт.

Included in Kit 2252276A1

1шт.

51a

231851A1

DOOR SEAL,828mm L

- rotor, adhesive-backed, used with retainer 231850A1, item 50A

1шт.

Included in Kit 2252276A1

1шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Four used with bar 1308967C1, item 50; five used with retainer 2318501A1, item 50A

1шт.

Included in Kit 2252276A1

1шт.

1324208C1

SHIM KIT

KIT - shim, Includes: Ref. 53

1шт.

53

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch thick

28шт.

53

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch thick

28шт.

53

NSS

NOT SOLD SEPARAT

SHIM - 0.053 inch thick

28шт.

53

NSS

NOT SOLD SEPARAT

SHIM - 0.093 inch thick

28шт.

54

182845C4

SHIELD

- sensor

1шт.

55

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

56

131-872

SPRING NUT,Ret, 3/8"-16

- hex, 3/8 inch NC

3шт.

57

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.

252276A1

PACKAGE

KIT - rotor front door and cone, also includes support 185169C4, seal 233482A1, strips 234917A2 and 234918A2, and two retainers 250696A1, Includes: Ref. 50A, 51, 51A & 52

1шт.
