Запчасти Case IH 2144 (9B-04) - ROTOR DRIVE, PULLEY AND CAM (14) - ROTOR, CONCANVES & SIEVE

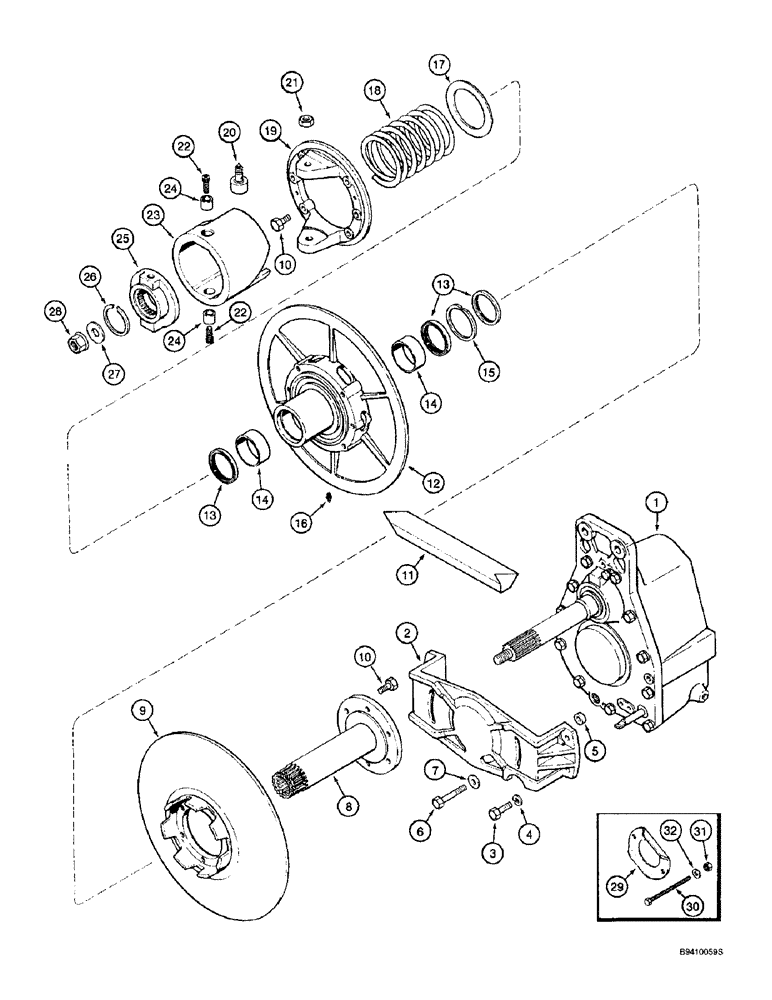

Схема запчастей Case IH 2144 - (9B-04) - ROTOR DRIVE, PULLEY AND CAM (14) - ROTOR, CONCANVES & SIEVE
24
32
20
22
22
14
13
10
4
2
11
5
29
14
18
12
27
30
19
16
24
3
23
28
15
7
21
8
26
25
17
13
6
31
9
10
1

Артикул

Название

Примечание

Количество

1

1315340C4

HOUSING

ASSEMBLY - gear, rotor drive, parts list Figure 9B-8

1шт.

1315340C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed

1шт.

2

194058C1

SUPPORT

- rear gear housing

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

5

194077C1

SPACER

- gear housing

2шт.

6

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

7

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

8

1315291C2

HUB

- fixed variable pulley, welded

1шт.

8

184489C1

HUB

- fixed variable pulley, machine forged

1шт.

9

1315292C2

PULLEY

- fixed variable

1шт.

10

310-1824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, self-locking, 1/2 NC x 1-1/2 inch, grade 8

12шт.

11

193923C4

V-BELT,2134.68 mm L

Rotor variable drive 2134.68 mm L

1шт.

12

1315294C3

PULLEY

ASSEMBLY - adjustable variable

1шт.

13

193965C91

SEAL

- pulley

3шт.

Part of KIT, part number 188839C92

1шт.

14

NSS

NOT SOLD SEPARAT

BUSHING - pulley, order kit 188839C92

2шт.

Part of KIT, part number 188839C92

1шт.

15

537602R1

RING

- pulley retaining

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

17

188210C91

CAM FOLLOWER

BEARING - thrust, rotor drive

1шт.

18

110844A1

SPRING

- rotor drive torque sensing

1шт.

refer to service bulletin NHE SB 036 97

1шт.

19

1315344C2

HUB

- cam follower

1шт.

20

1315343C1

BEARING,38.1 mm OD x 22.22 mm

- cam follower

2шт.

21

425-1110

NUT,5/8"-18, G5

2шт.

22

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower yoke pivot

2шт.

184478C1

CAM

ASSEMBLY - follower, torque sensing

1шт.

23

NSS

NOT SOLD SEPARAT

CAM - follower, torque sensing, order cam assembly 184478C1

1шт.

24

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- yoke pivot

2шт.

25

1315297C2

HUB,20T

CAM - torque sensing, rotor drive

1шт.

26

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- retaining, hub cam follower

1шт.

27

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 57/64 x 1-7/8 x 7/32 inch, hardened

1шт.

28

1315288C1

FLANGE NUT

- hex, self-locking, special, 7/8 inch NC

1шт.

29

1315304C2

PLATE

- torque spring

1шт.

30

1319996C2

ROD

BOLT - torque sensing spring, special, 11-1/2 inch

2шт.

31

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

2шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

KIT - repair, bushing and seal, variable pulley, Includes Refs. 13 and 14 above.

1шт.

This bushing might need machined after it is installed.

1шт.
