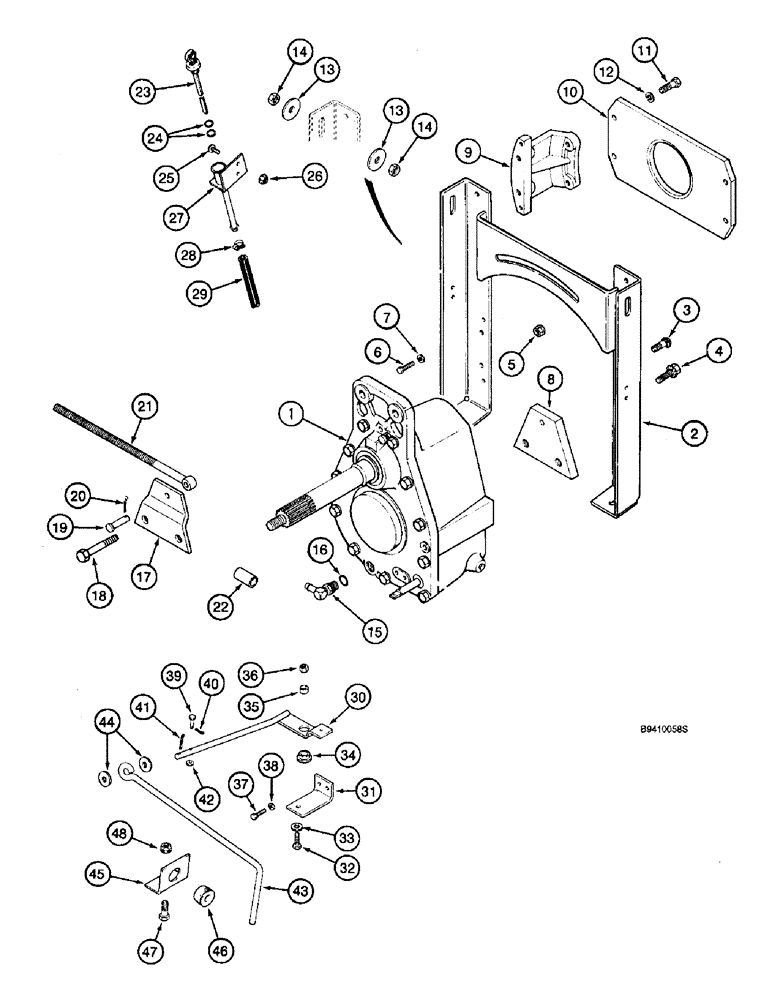

Запчасти Case IH 2144 (9B-02) - ROTOR DRIVE, MOUNTING (14) - ROTOR, CONCANVES & SIEVE

1

1315340C4

HOUSING

ASSEMBLY - gear, rotor drive, parts list Figure 9B-8

1шт.

1315340C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed

1шт.

2

1338395C1

SUPPORT ASSY.

SUPPORT - rotor drive

1шт.

3

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

188141C1

SUPPORT

- gear housing anchor

1шт.

9

181314C2

BLOCK

- housing support, front

2шт.

10

181315C1

PLATE

- gear housing support, front

1шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Incl Ref 13 - 16 1/2"

4шт.

13

495-81030

WASHER,21/32" x 2" x .179"

- flat, 21/32 x 2 x 11/64 inch

2шт.

KIT - repair, bushing and seal P/N 188839C92

1шт.

14

425-1010

NUT,5/8"-11, G5

2шт.

15

188272C1

ELBOW

- 90 degree, special, gear housing

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

188142C1

SUPPORT

- gear housing anchor

1шт.

18

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

19

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

PIN - headed, 1/2 x 2 inch

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

1шт.

21

188143C1

EYEBOLT

- gear housing

1шт.

22

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - 3/4 ID x 1-13/64 inch long, oil hose cover

1шт.

194066C91

DIPSTICK

GAUGE ASSEMBLY - rotor gear housing, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

GAUGE - rotor gear, order gauge assembly 194066C91

1шт.

24

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

25

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

27

193946C1

TUBE,12.7 mm OD

- gear housing gauge

1шт.

28

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

2шт.

29

NSS

NOT SOLD SEPARAT

HOSE - 19 inch (483 mm) long, cut from S118466X bulk hose below

1шт.

30

100398A1

LEVER ASSY.

LEVER - rotor drive shift

1шт.

31

100395A1

SUPPORT

- gear housing pivot

1шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

33

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

34

1979265C1

BUSHING

- shift lever

1шт.

35

1979327C1

SPACER

- lever

1шт.

36

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

37

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

39

439-5521

HEADED PIN,5/16" x 1 5/16"

PIN - headed, 5/16 x 1-5/16 inch

1шт.

40

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

41

432-1216

COTTER PIN,3/16" x 1"

2шт.

42

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

43

186648C2

ROD

- lever shaft control linkage

1шт.

44

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

2шт.

45

1979564C1

SUPPORT

- shift lever

1шт.

46

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID, control rod

2шт.

47

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

48

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

S118466X

LARGE HOSE

HOSE - bulk, 1/2 (13) ID x 300 inch (7620 mm) long

1шт.
