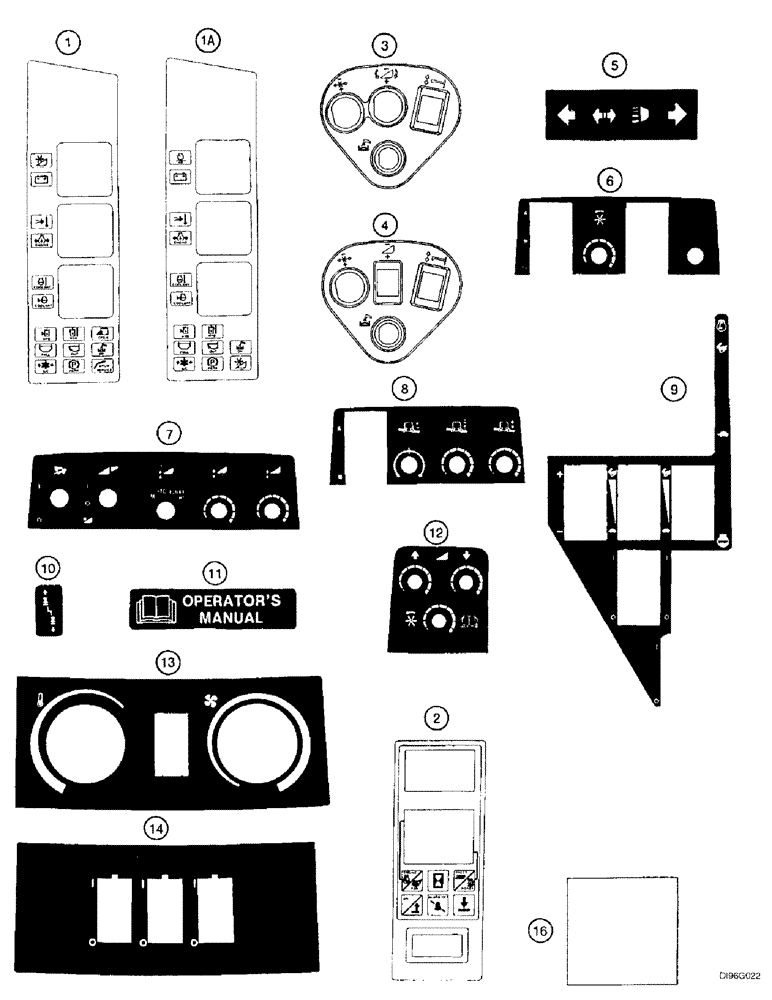

Запчасти Case IH 2144 (9H-42) - DECALS, CAB (12) - CHASSIS

1

139084A2

DECAL

- gauge and warning, instrument panel to JJC0173150

1шт.

1a

238210A1

DECAL

- gauge and warning, instrument panel, Start Serial: JJC0173150

1шт.

2

123716A1

DECAL

- keypad, instrument panel

1шт.

3

144107A2

DECAL

- propulsion control lever cover plate, models without field tracker

1шт.

4

144109A2

DECAL

- propulsion control lever cover plate

1шт.

5

120332A1

DECAL

- directional arrows, steering console cover

1шт.

6

NSS

NOT SOLD SEPARAT

DECAL - reel speed, right-hand console

1шт.

Part of KIT, part number 193469A1

1шт.

7

NSS

NOT SOLD SEPARAT

DECAL - separator, right-hand console

1шт.

Part of KIT, part number 193469A1

1шт.

8

NSS

NOT SOLD SEPARAT

DECAL - field tracker, right-hand console

1шт.

Part of KIT, part number 193469A1

1шт.

9

NSS

NOT SOLD SEPARAT

DECAL - concave, right-hand console

1шт.

Part of KIT, part number 193469A1

1шт.

10

NSS

NOT SOLD SEPARAT

DECAL - propulsion, right-hand console

1шт.

Part of KIT, part number 193469A1

1шт.

11

NSS

NOT SOLD SEPARAT

DECAL - operators manual, right-hand console

1шт.

Part of KIT, part number 193469A1

1шт.

12

NSS

NOT SOLD SEPARAT

DECAL - remote potentiometer, right-hand console

1шт.

Part of KIT, part number 193469A1

1шт.

13

139641A2

DECAL

- heating and air conditioning, overhead

1шт.

14

139642A2

DECAL

- rocker switch, overhead

1шт.

16

224636A1

DECAL

- connector cover, cab exterior

1шт.

193469A1

PACKAGE

KIT - decal, right hand console, Includes Refs. 6-12 above

1шт.

279142A1

DECAL

20th Anniversary, 20 rotary technology

1шт.
