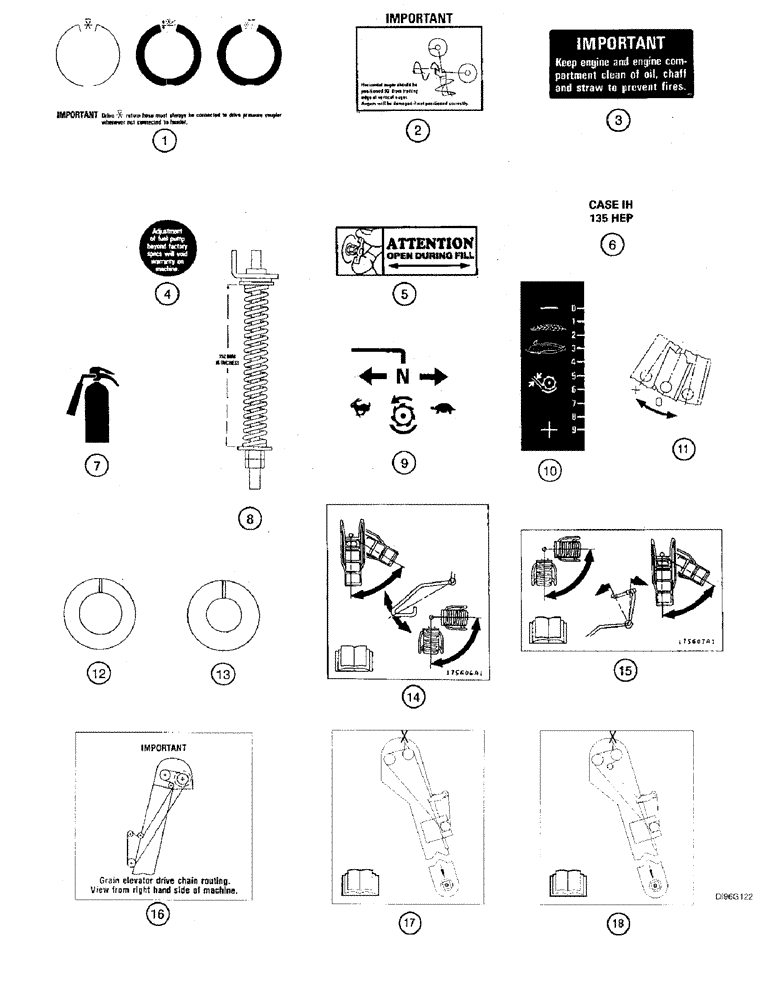

Запчасти Case IH 2144 (9H-40) - DECALS, IMPORTANT INSTRUCTIONS AND INFORMATION DECALS (12) - CHASSIS

1

1989604C1

DECAL

- Important, drive return hose must always be connected to drive pressure coupler

1шт.

1

1989607C1

DECAL

- Important, drive return hose must always be connected to drive pressure coupler, French

1шт.

1

1989605C1

DECAL

- Important, drive return hose must always be connected to drive pressure coupler, Spanish

1шт.

2

1989314C1

DECAL

- Important, horizontal auger should be positioned 90 degree from trailing edge of vertical auger

1шт.

2

1989648C1

DECAL

- Important, horizontal auger should be positioned 90 degree from trailing edge of vertical auger, French

1шт.

2

1989650C1

DECAL

- Important, horizontal auger should be positioned 90 degree from trailing edge of vertical auger, Spanish

1шт.

3

173881C1

DECAL

- Important, keep engine and engine compartment clean

1шт.

3

1300039C1

DECAL

- Important, keep engine and engine compartment clean, French

1шт.

3

1300395C1

DECAL

- Important, keep engine and engine compartment clean, Spanish

1шт.

4

184666A1

DECAL

- warranty, fuel pump, English

1шт.

4

184668A1

DECAL

- warranty, fuel pump, French

1шт.

4

184669A1

DECAL

- warranty, fuel pump, Spanish

1шт.

5

J910778

DECAL

- Caution, open during fill

1шт.

6

144378A1

DECAL

- Case IH, 135 HEP

3шт.

7

144483A1

DECAL

- fire extinguisher

1шт.

8

144369A1

DECAL

- elevator drive adjustment

1шт.

9

144377A1

DECAL

- rotor control

1шт.

10

1312068C1

DECAL

- concave indicator

1шт.

11

175784A1

DECAL

- vane position

1шт.

12

1345266C1

WASHER

- lock, white, special, see figure 8-37C for location in the reel drive system

1шт.

13

1541792C1

WASHER

WASHER - lock, red, special, see figure 8-42 for location in the reel fore and aft system

1шт.

14

175606A1

DECAL

- lower control, operator ladder

1шт.

15

175607A1

DECAL

- upper control, operator ladder

1шт.

16

1957261C1

DECAL

- Important, grain elevator drive chain routing, models with horizontal auger

1шт.

16

1979075C1

DECAL

- Important, grain elevator drive chain routing, French, models with horizontal auger

1шт.

16

1979078C1

DECAL

- Important, grain elevator drive chain routing, Spanish, models with horizontal auger

1шт.

17

239313A1

DECAL

- elevator inclined delivery GPS/AFS

1шт.

18

239311A1

DECAL

- elevator horizontal delivery GPS/AFS

1шт.
