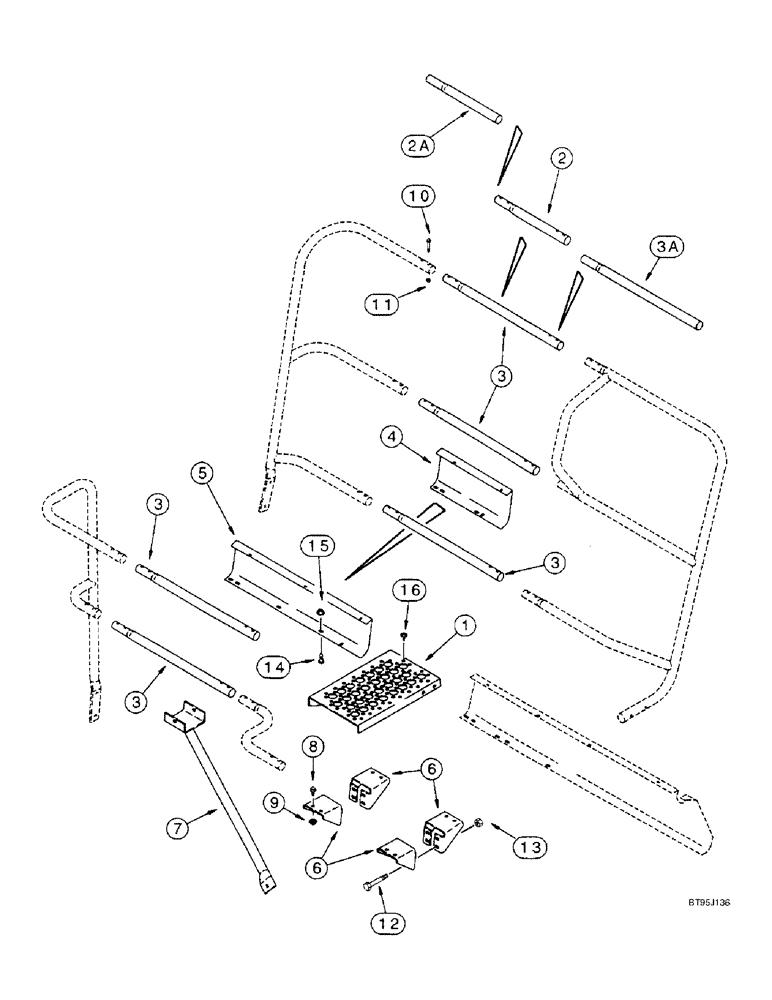

Запчасти Case IH 2144 (9H-30) - OPERATORS PLATFORM EXTENSION (12) - CHASSIS

1

124315A1

STEP

PLATFORM - extension, operators, 10 inch

1-2шт.

2

141588A1

HANDRAIL

- for 10 inch extension, 12-3/4 inch long, four mounting holes

4-5шт.

2a

195625A1

HANDRAIL

- for 10 inch extension, 12-3/4 inch long, upper handrail extension only, no mounting holes

1шт.

3

141589A1

HANDRAIL

- for 20 inch extension, 22-3/4 inch long, four mounting holes

4-5шт.

3a

195627A1

HANDRAIL

- for 20 inch extension, 22-3/4 inch long, upper handrail extension only, no mounting holes

1шт.

4

127719A2

SHIELD

CHANNEL - trim, for 10 inch extension

1шт.

5

127720A2

SHIELD

CHANNEL - trim, for 20 inch extension

1шт.

6

143819A1

SUPPORT

- operator platform

2-4шт.

7

144182A1

SUPPORT

- left-hand operator platform

1шт.

8

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4-8шт.

9

231-5146

FLANGE NUT,3/8"-16

4-8шт.

10

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4-10шт.

11

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4-10шт.

12

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

4-8шт.

13

231-5146

FLANGE NUT,3/8"-16

4-8шт.

14

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

1шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

16

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

2-4шт.
