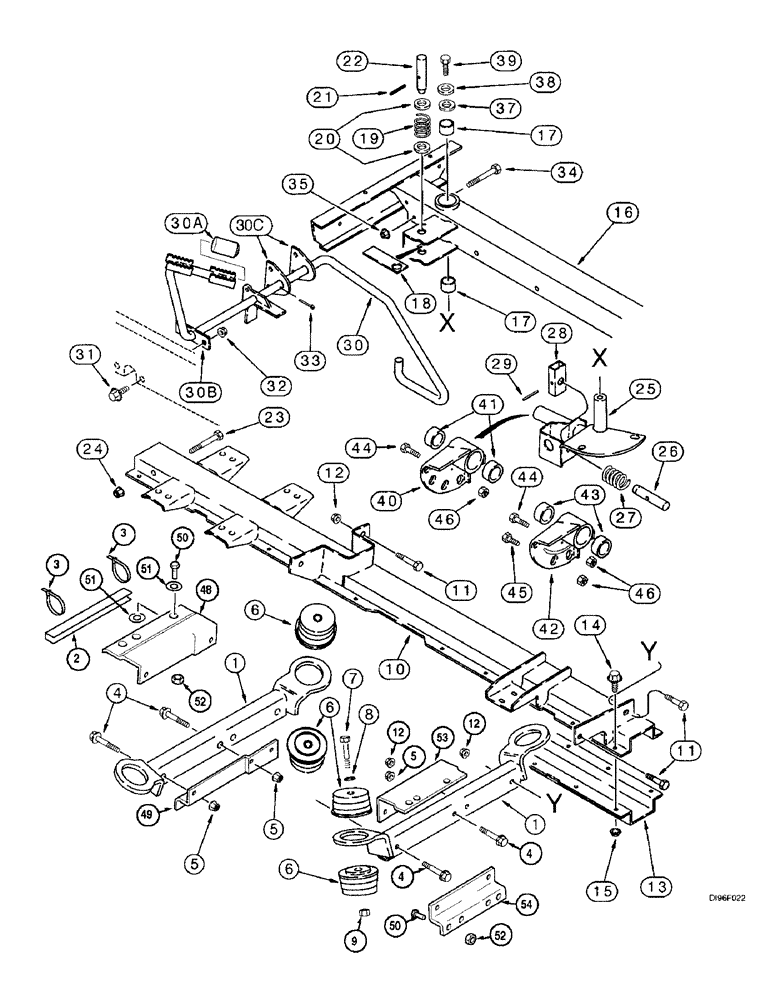

Запчасти Case IH 2144 (9H-28) - BEAM SUPPORT, CHANNEL AND LEFT HAND PIVOT (12) - CHASSIS

1

112052A1

SUPPORT

- cab isolator

2шт.

2

121574A1

SEAL PROTECTION

TRIM - edge, black, 10 inch (254 mm) long, cut from 1330108CX bulk trim, rear

1шт.

3

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie, front

2шт.

4

360-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

- hex flange, 1/2 NC x 4 inch, grade 8

5шт.

5

329-288

FLANGE NUT,Flg, 1/2"-13, G8

5шт.

6

123566A1

ISOLATOR

- cab mount

8шт.

7

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

- hex, 5/8 NC x 6 inch, grade 8

4шт.

8

CASD35009

WASHER,16.67mm ID x 63.5mm OD

- flat, special

4шт.

9

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

10

143520A2

SUPPORT

CHANNEL - left-hand operator platform

1шт.

11

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

- hex, 1/2 NC x 3-1/4 inch, grade 8

3шт.

12

131-946

FLANGE NUT,Flg, 1/2"-13, G8

- large hex flange, 1/2 inch NC

3шт.

13

182648A1

SUPPORT

CHANNEL - left-hand operator platform

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

23шт.

15

231-5146

FLANGE NUT,3/8"-16

24шт.

16

192351A1

BEAM

ASSEMBLY - left-hand platform, Includes: Ref. 17 and decal, see page 9H-37 for decal

1шт.

17

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

- platform beam

2шт.

18

126024A1

LEVER

- vertical latch

1шт.

19

126162A1

SPRING

- latch lever

1шт.

20

495-81275

WASHER,1.06" ID x 1.75" OD x 0.07" Thk

- flat, 1-1/16 x 1-3/4 x 1/16 inch

2шт.

21

438-11632

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

1шт.

22

126017A1

PIN,25.4mm OD x 127mm L

PIN - vertical

1шт.

23

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

- hex, 1/2 NC x 5 inch

1шт.

24

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

1шт.

25

224572A1

SHAFT

- ladder pivot (Replaces shaft 112055A1)

1шт.

26

126014A1

SPLIT PIN/SAFETY PIN

PIN - horizontal

1шт.

27

126162A1

SPRING

- ladder horizontal pin

1шт.

28

142025A1

TUBE,100 mm Length

- horizontal pin lever

1шт.

29

438-11632

LOCK PIN,1/4" x 2", Slotted

Pin, 1/4" x 2", Slotted

1шт.

30

113132A4

LEVER

ASSEMBLY - pivot latch, Includes: Ref. 30A

1шт.

30a

226172A1

PLUG

- rod, end cap

1шт.

30b

141922A2

PLATE

- outer lever mounting

2шт.

30c

143458A1

PLATE

- inner lever mounting

2шт.

31

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

33

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

34

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

2шт.

35

231-5146

FLANGE NUT,3/8"-16

2шт.

37

495-81238

WASHER,13/16" x 3" x .238", HDN

1шт.

38

142054A1

THRUST WASHER

- thrust, ladder

1шт.

39

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 20 - 2.5 x 40 mm

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.

40

142380A1

PIVOT ASSY.

PIVOT ASSEMBLY - with bushings, Includes: Ref. 41, four large holes and one small hole, no longer used, order pivot assembly 142380A2, item 42, Includes: Ref. 41

1шт.

41

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

- pivot

2шт.

42

142380A2

PIVOT

ASSEMBLY - with bushing, Includes: Ref. 43, three large holes, two small holes and a slot, Includes: Ref. 43

1шт.

43

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

- pivot

2шт.

44

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

1шт.

45

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

46

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

48

235731A1

SUPPORT

PLATE - cab support, left-hand upper

1шт.

49

235732A2

SUPPORT

PLATE - cab support, left-hand lower

1шт.

50

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 45 mm, class 10.9

14шт.

51

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

20шт.

52

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

14шт.

53

235723A1

SUPPORT

PLATE - cab support, right-hand upper

1шт.

54

235620A2

SUPPORT

PLATE - cab support, right-hand lower

1шт.
