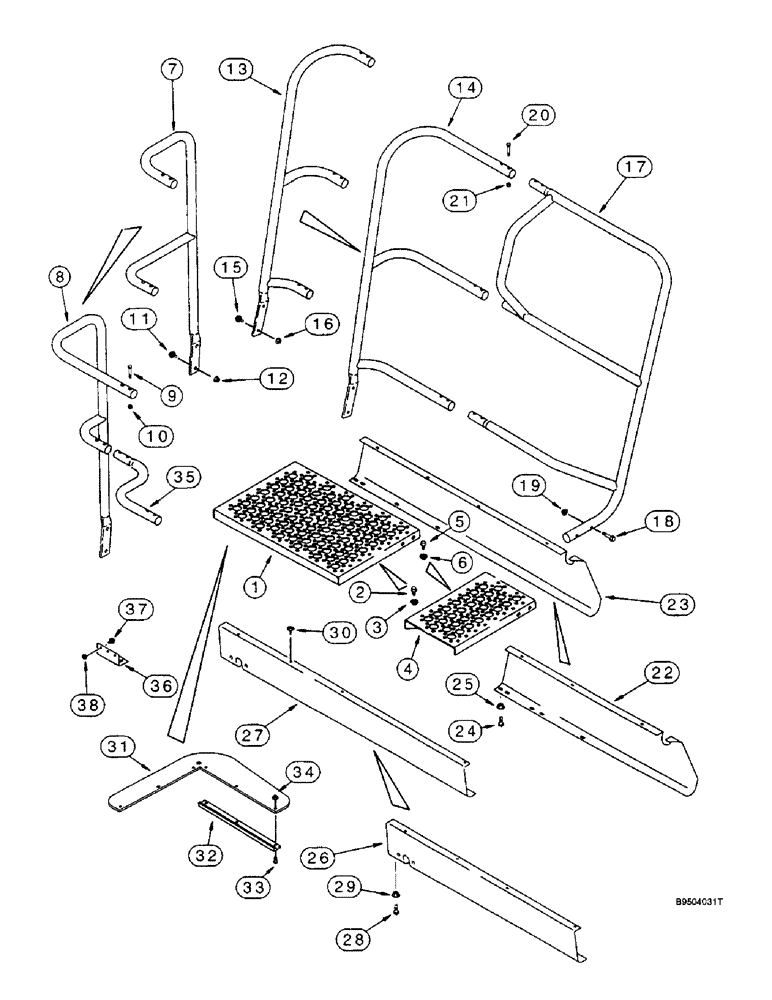

Запчасти Case IH 2144 (9H-26) - LEFT HAND OPERATORS PLATFORM (12) - CHASSIS

1

142163A2

PLATFORM

- operators, 30 inch

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

124315A1

STEP

PLATFORM - extension, operators, 10 inch, if used

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

7

141594A1

GRAB RAIL

HANDRAIL - rear, 30 inch platform

1шт.

8

141598A1

RAMP

HANDRAIL - rear, 40 inch platform

1шт.

9

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4-6шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4-6шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

13

141584A2

GRAB RAIL

HANDRAIL - front, 30 inch platform

1шт.

14

141590A2

RAMP

HANDRAIL - front, 40 inch platform

1шт.

15

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

141579A3

HANDRAIL

- front

1шт.

18

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

- hex serrated flange, 3/8 NC x 2 inch

2шт.

19

231-5346

FLANGE NUT,Flg, 3/8"-16

NUT - hex flange, self-locking, 3/8 inch NC

2шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

6шт.

21

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

6шт.

22

183369A2

CHANNEL

- trim, 30 inch platform

1шт.

23

127718A2

SUPPORT

CHANNEL - trim, 40 inch platform

1шт.

24

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

1шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

26

118941A1

GUARD

CHANNEL - left-hand rear trim, 30 inch platform

1шт.

27

127721A1

SHEET

CHANNEL - left-hand rear trim, 40 inch platform

1шт.

28

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

1шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

30

260-1448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan Phillips, No. 8-18 x 1/2 inch

5-8шт.

31

184869A1

COVER

FLAP - lever pivot

1шт.

32

184891A1

BRACKET

ANGLE - ladder flap support

1шт.

33

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

6шт.

34

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

35

182282A1

TUBE,33.35 mm OD

HANDRAIL - center

1шт.

36

141049A1

SUPPORT

BRACKET - handrail support

2шт.

37

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

38

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.
