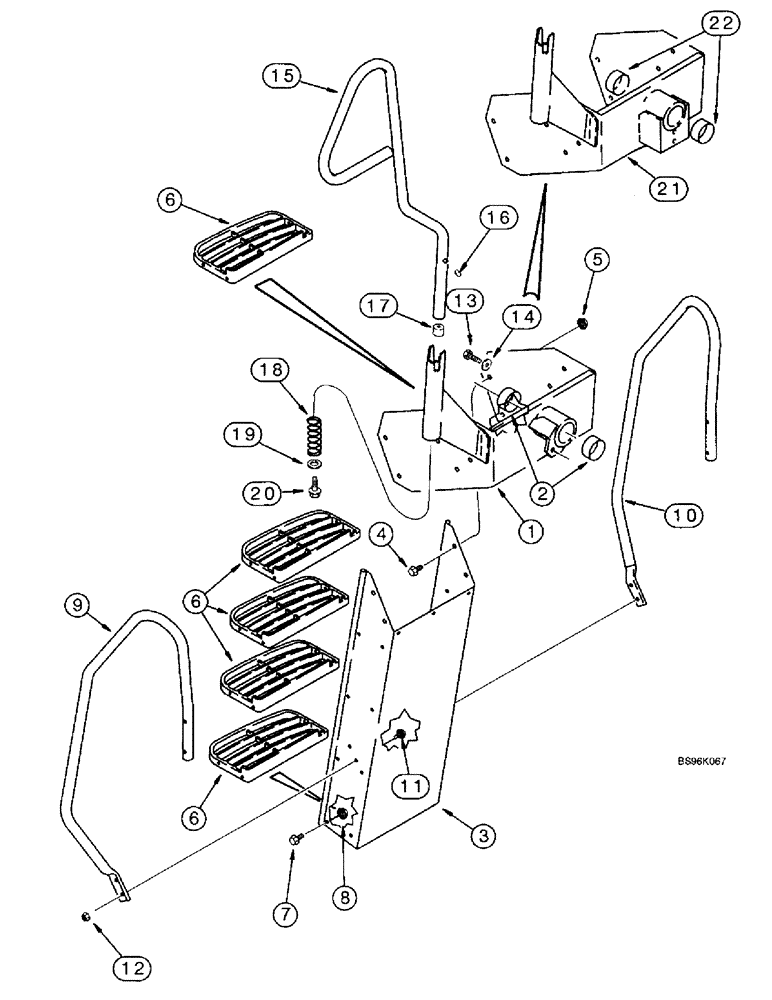

Запчасти Case IH 2144 (9H-24) - OPERATORS LADDER (12) - CHASSIS

1

142382A3

SUPPORT

ASSEMBLY - ladder, Includes: Ref. 2 also,includes angled shear bolt bracket, no longer used, for service order support 193980A2, item 21 below and pivot assembly 142380A2, item 44 shown on page 9H-3, Includes: Ref. 2

1шт.

2

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

- ladder support

2шт.

3

125495A1

CHASSIS

CHANNEL - ladder frame

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

Ladder frame channel to ladder support Hex Flg, 3/8"-16 x 3/4", Serr

7шт.

5

231-5146

FLANGE NUT,3/8"-16

7шт.

6

97050C3

STEP

- ladder

5шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

20шт.

8

231-5146

FLANGE NUT,3/8"-16

20шт.

9

182683A1

RAMP

HANDRAIL - ladder, right-hand

1шт.

10

182682A1

RAMP

HANDRAIL - ladder, left-hand

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

12

231-5146

FLANGE NUT,3/8"-16

8шт.

13

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 20 - 2.5 x 40 mm

1шт.

14

495-81238

WASHER,13/16" x 3" x .238", HDN

1шт.

15

184280A3

TUBE

ASSEMBLY - operators deck gate, Includes: Ref. 16

1шт.

16

438-13236

LOCK PIN,1/2" x 2 1/4", Slotted

Pin, 1/2" x 2 1/4", Slotted

1шт.

17

140225A2

TUBE,17.4 mm Length

CONNECTOR - handrail

1шт.

18

182339A2

SPRING

- compression, operators deck gate

1шт.

19

495-81123

WASHER,0.34" ID x 1.75" OD x 0.18" Thk

- flat, 11/32 x 1-3/4 x 11/64 inch

1шт.

20

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 30 mm

1шт.

21

193980A2

SUPPORT

ASSEMBLY - ladder, includes shear bolt bracket with two holes, Includes: Ref. 22

1шт.

22

142381A1

BUSHING,50.72mm ID x 55.58mm OD x 25.65mm L

- ladder support

2шт.
