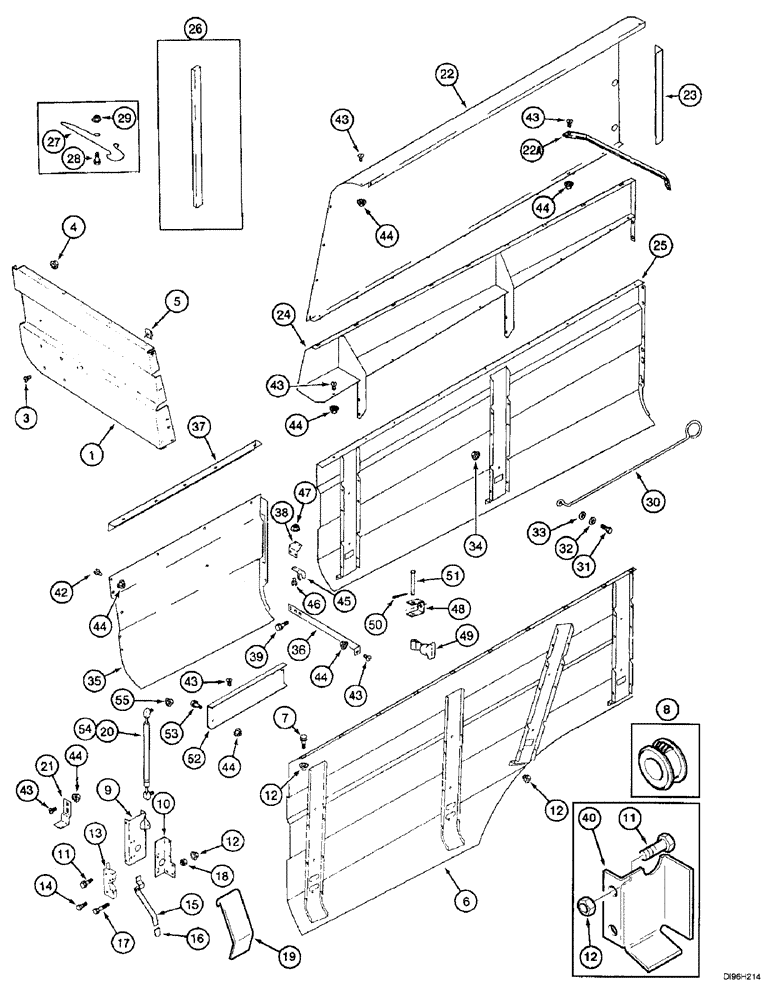

Запчасти Case IH 2144 (9H-12) - LEFT HAND DOOR AND SHIELDS (12) - CHASSIS

1

104148A3

SUPPORT

- tail lamp, left-hand

1шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

5

488837C1

SPRING NUT

- speed, 5/16 inch

3шт.

6

139776A3

DOOR ASSY.

DOOR - left-hand, forward

1шт.

7

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

8

353-462

BUSHING,12.7mm ID x 15.88mm OD x mm L

- snap, Australia only

1шт.

9

175605A2

SUPPORT

BRACKET - cylinder mounting, lower

1шт.

10

139680A3

SUPPORT

BRACKET - latch, lower left-hand

1шт.

11

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

13

141224A1

LATCH

- door

1шт.

14

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

15

182204A1

LEVER

- latch

1шт.

16

176203A2

PROTECTOR

CAP - lever end

1шт.

17

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

18

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

19

182582A1

LEVER

- latch, Australia only

1шт.

20

140311A3

GAS STRUT

CYLINDER - hydro-lift door

1шт.

21

143442A2

SUPPORT

BRACKET - door stop, front

1шт.

22

142567A3

PANEL

- rear upper left-hand trim

1шт.

22a

223817A1

SUPPORT

BRACKET - left-hand rear upper trim panel

1шт.

23

140514A1

SUPPORT

ANGLE - shield stiffener, upper left-hand

1шт.

24

142568A2

PANEL

- rear trim door, upper left-hand

1шт.

25

142569A3

PANEL

- rear trim door, lower left-hand

1шт.

26

187885C1

SEALING STRIP

- 26 inch (660 mm) long, cut from 87281C1 bulk seal below

2шт.

27

176438A1

STEM

ROD - door support

1шт.

28

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

30

176953A3

PROP

ROD - left-hand rear trim support

1шт.

31

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

32

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

33

495-81145

WASHER,13/32" x 1 3/4" x .120"

- flat, 13/32 x 1-3/4 x 1/8 inch

2шт.

34

231-5146

FLANGE NUT,3/8"-16

2шт.

35

129176A4

SHEET

SHIELD - left-hand rear fixed trim

1шт.

36

131431A1

ANGLE BAR

ANGLE - fixed trim, lower left-hand rear

1шт.

37

183368A2

SUPPORT

ANGLE - left-hand rear trim

1шт.

38

130184A1

SUPPORT

BRACKET - trim door rear latch

1шт.

87281C1

RUBBER STRIP,38mm W x 749mm L x 19mm Thk

- bulk, 600 inch (15240 mm) long

1шт.

39

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

40

183475A1

COVER

- latch arm, Australia only

1шт.

42

190553A1

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- slotted truss head, painted head, 5/16 NC x 3/4 inch

9шт.

43

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

45

L105124

LATCH HOOK

HOOK - latch

1шт.

46

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

2шт.

47

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

48

188103C1

BRACKET

- hood anchor

1шт.

49

494307C1

LATCH

HOOK - hold down, latch

1шт.

50

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

51

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

1шт.

52

1319563C1

SUPPORT

- handle

1шт.

53

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

54

1340345C1

BALL STUD

STUD - ball, cylinder mounting

2шт.

55

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.
