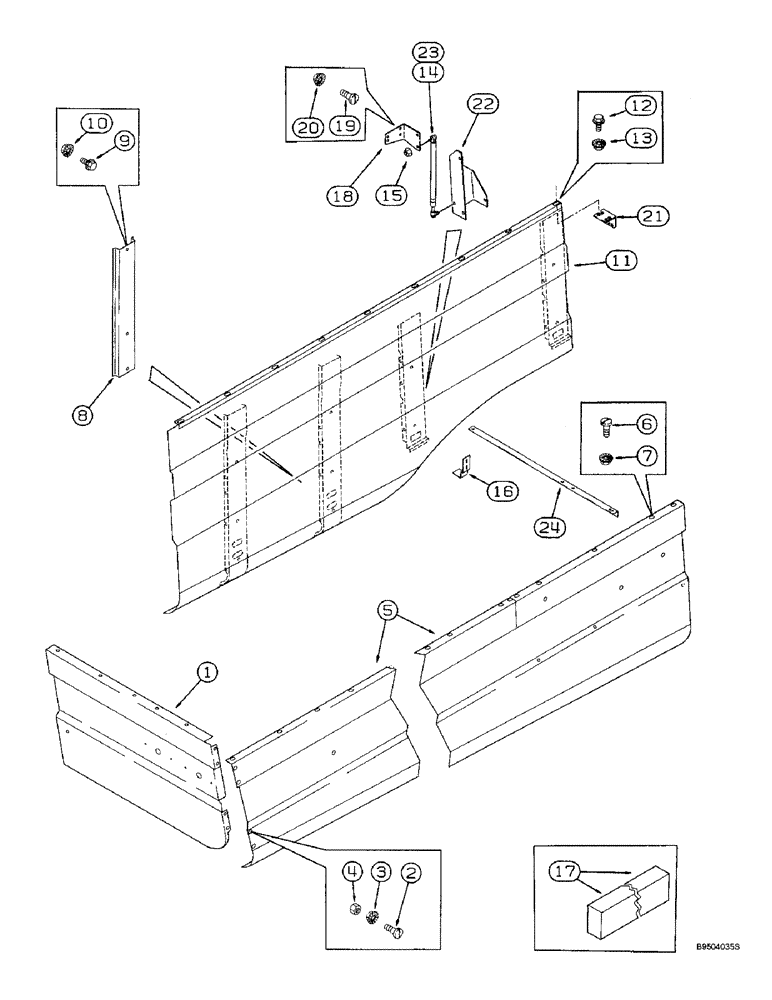

Запчасти Case IH 2144 (9H-10) - RIGHT HAND DOOR AND SHIELD (12) - CHASSIS

1

193812C6

SHEET

SUPPORT - tail lamp, right-hand

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

8шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

4

488837C1

SPRING NUT

- speed, 5/16 inch

3шт.

5

193734C7

PANEL

SHIELD - rear trim, right-hand

1шт.

6

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

2шт.

6

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

11шт.

6

190553A1

SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- slotted truss head, painted head, 5/16 NC x 3/4 inch

5шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

18шт.

8

1319563C1

SUPPORT

- handle

2шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

11

139777A3

HOOD

DOOR - right-hand, forward

1шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

9шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

14

140311A3

GAS STRUT

CYLINDER - hydro-lift door

1шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

16

143442A2

SUPPORT

BRACKET - door stop, front

1шт.

17

187885C1

SEALING STRIP

- 26 inch (660 mm) long, cut from 87281C1 bulk seal below

1шт.

18

139771A2

SUPPORT

ANGLE - cylinder mounting, upper right-hand

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

21

181333A1

ANGLE BAR

BRACKET - hinge support

1шт.

22

176083A2

SUPPORT

- door cylinder, see Fig. 9D-34, item 17

1шт.

23

1340345C1

BALL STUD

STUD - ball, cylinder mounting

2шт.

24

194604C3

ANGLE BAR

ANGLE - shield support

1шт.

87281C1

RUBBER STRIP,38mm W x 749mm L x 19mm Thk

- bulk, 600 inch (15240 mm) long

1шт.
