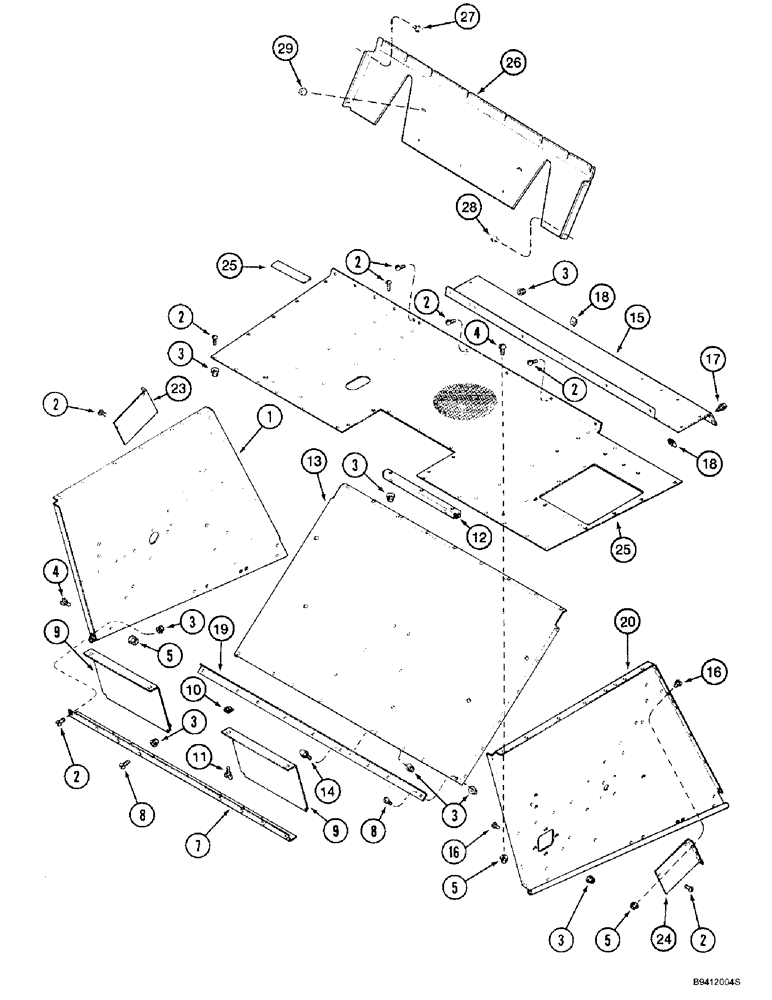

Запчасти Case IH 2144 (9H-08) - SEPARATOR HOOD AND SIDES (12) - CHASSIS

1

189800A1

PROTECTION PLATE

SIDE - separator, left-hand, includes decals, see page 9H-37 for decals

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

5

231-5146

FLANGE NUT,3/8"-16

12шт.

7

192309C2

ANGLE

- rear support

1шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

9

189798A2

COVER

SUPPORT - hood rear access, includes decals

2шт.

10

488837C1

SPRING NUT

- speed, 5/16 inch

4шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

12

186971C1

ANGLE

- rear deck support

1шт.

13

1324988C3

DEFLECTOR

- straw discharge

1шт.

14

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

9шт.

15

1541957C1

SHEET

SUPPORT - engine deck

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

17

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

18

488837C1

SPRING NUT

- speed, 5/16 inch

11шт.

19

194305C1

ANGLE

- deflector stiffener

1шт.

20

195620A1

SHEET

SIDE - separator, right-hand

1шт.

23

185104C1

SUPPORT

- separator hood, left-hand

1шт.

24

185105C1

SUPPORT

- separator hood, right-hand

1шт.

25

1317744C9

SHEET

SUPPORT - rear deck

1шт.

26

195138C5

SUPPORT

- dust shield

1шт.

27

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

3шт.

28

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

6шт.
