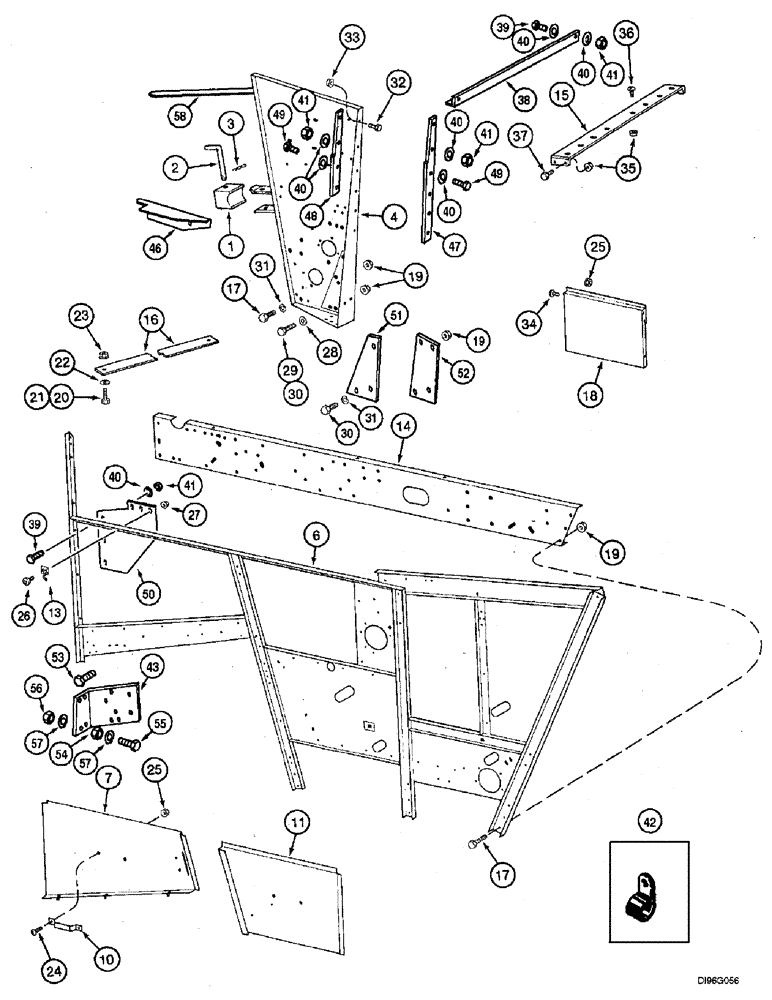

Запчасти Case IH 2144 (9H-04) - LEFT HAND SEPARATOR DOORS, SIDE AND SUPPORTS (12) - CHASSIS

1

1989327C2

RETAINER

BLOCK - feeder pivot

1шт.

2

192533C2

ROD

- feeder pivot block

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

4

139619A6

SUPPORT

POST - side, left-hand front, includes decal, see page 9H-37 for decal

1шт.

5

120253C1

CONDUIT

- 8-1/4 inch (210 mm) long, cut from 1262114C1 bulk conduit below, not shown

1шт.

6

1970184C9

SIDE ASSY.

SIDE - separator, left-hand

1шт.

7

192081C1

DOOR

- separator, left-hand front

1шт.

10

160638C1

HANDLE

- door

2шт.

11

192940C1

DOOR

- separator, left-hand

1шт.

13

167800C1

CLIP

- door retaining clip

10шт.

14

1327695C8

SUPPORT

- separator, main, left-hand

1шт.

15

195316C1

SUPPORT ASSY.

SUPPORT - engine deck

1шт.

16

196315C2

BAR

- separator frame diagonal support

1шт.

17

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

13шт.

18

181085C2

DOOR

- separator

1шт.

19

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

17шт.

20

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

2шт.

21

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

23

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

3шт.

24

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

4шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

26

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

10шт.

27

231-51409

SERRATED NUT,Flg, USR, #10-24

10шт.

28

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

2шт.

29

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

2шт.

30

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

4шт.

31

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

10шт.

32

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

8шт.

33

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

8шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

5шт.

35

231-5146

FLANGE NUT,3/8"-16

16шт.

37

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

38

222134A2

SUPPORT

ANGLE - stiffener, side frame, 1302 mm

1шт.

39

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

8шт.

40

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

20шт.

41

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

15шт.

1262114C1

CONDUIT

- bulk, 31 inch (787 mm) long

1шт.

42

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

42

515-25254

CLAMP,1", Insul, 1/2" Bolt

P-type 1", Insul, 1/2" Bolt

1шт.

43

220612A1

SUPPORT

BRACKET - reinforcement

1шт.

46

234958A1

SUPPORT

ANGLE - support, upper front post

1шт.

47

233327A2

LARGE PLATE

STRAP - vertical, separator support

1шт.

48

235234A2

LARGE PLATE

STRAP - vertical, support, front post side, left-hand

1шт.

49

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

7шт.

50

233468A1

LARGE PLATE

PLATE - reinforcement, left-hand side corner

1шт.

51

233326A1

LARGE PLATE

PLATE - reinforcement, front left-hand post

1шт.

52

233324A1

LARGE PLATE

PLATE - support, front left-hand post

1шт.

53

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

53

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

53

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

- hex serrated flange, 5/16 NC x 1-1/4 inch

4шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

54

231-5146

FLANGE NUT,3/8"-16

2шт.

55

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

55

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

1шт.

55

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

56

231-5146

FLANGE NUT,3/8"-16

2шт.

56

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

4шт.

57

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

58

235386A2

LARGE PLATE

STRAP - support, feeder pivot, 884 mm

1шт.

59

188062C1

STRIP

SEAL - 5-1/2 inch (140 mm) long, cut from 1338148CX bulk seal below, for use between separator side doors and auger bed, not shown

4шт.

1338148CX

SEAL

- bulk, foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

36

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

12шт.
