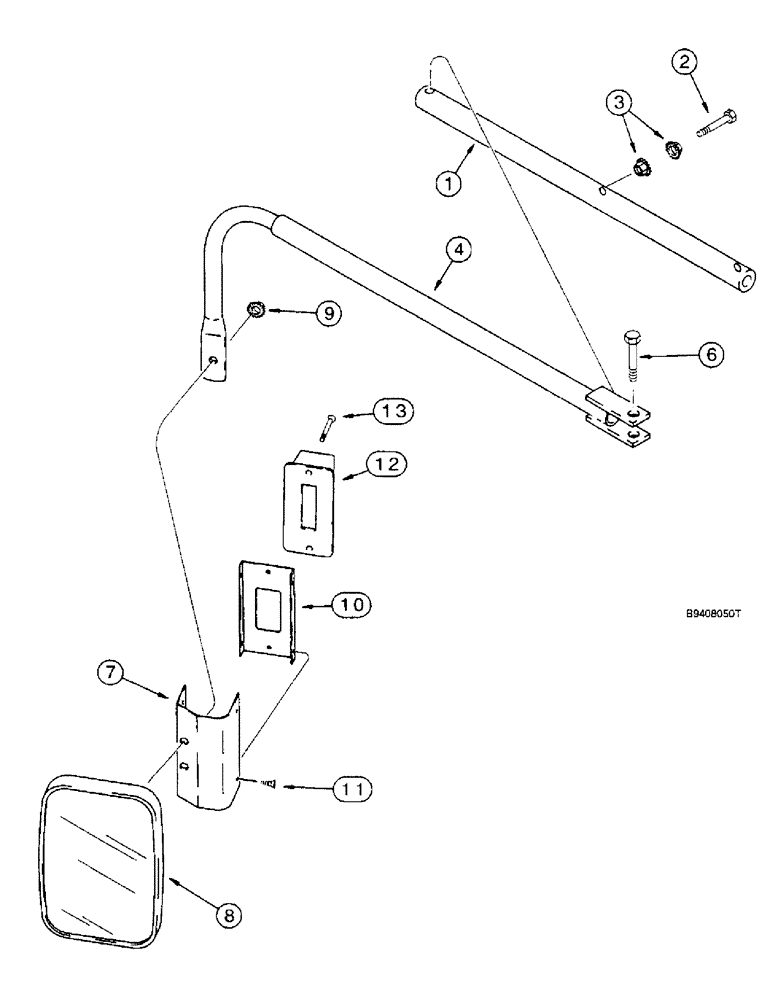

Запчасти Case IH 2144 (9G-54) - CAB, REAR VIEW MIRROR WITH WARNING LAMP (10) - CAB & AIR CONDITIONING

1

178325A2

SUPPORT TUBE,12.5 mm ID, 38.1 mm OD

SUPPORT - mirror

2шт.

2

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 60 mm

4шт.

3

825-51412

FLANGE NUT,M12, Flg Ser

4шт.

4

178591A3

SUPPORT

BRACKET - rear view mirror, left-hand

1шт.

5

178342A3

SUPPORT

BRACKET - rear view mirror, right-hand, not shown

1шт.

6

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

7

127959A2

SUPPORT

BRACKET - mounting, mirror and warning lamp

2шт.

8

1283403C1

MIRROR

- rear view

2шт.

9

122379A1

FLANGE NUT

- hex serrated flange, 3/8 inch NC

2шт.

10

127960A1

SUPPORT

- warning lamp

2шт.

11

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

8шт.

12

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list Figure 4-48

2шт.

13

1974614C2

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 2 1/4"

SCREW, SELF TAP, , Special Cross Pan Hd, #10-24 x 2 1/4"

4шт.
