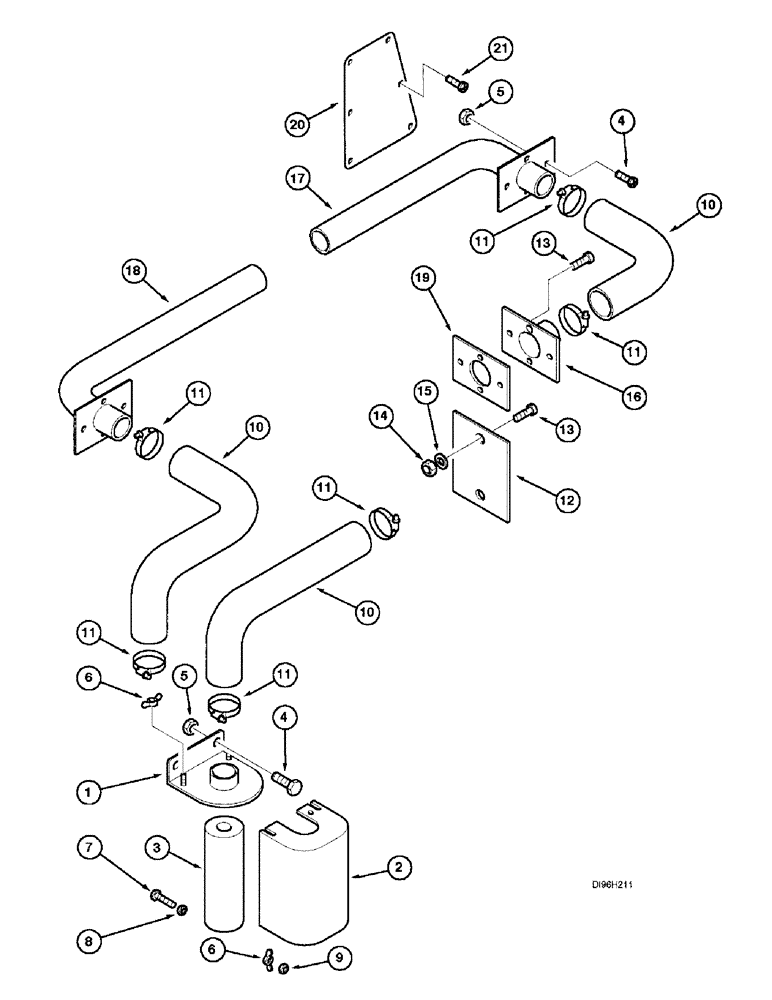

Запчасти Case IH 2144 (9G-41A) - HEATING AND AIR CONDITIONING SYSTEM, CAB AIR CONDITIONING, COMBINE S/N JJC0173150 AND AFTER (10) - CAB & AIR CONDITIONING

1

243176A1

SUPPORT

HOLDER - air filter

1шт.

2

247720A1

COVER

- air filter

1шт.

3

247752A1

CAB FILTER

FILTER - air

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

10шт.

5

825-51410

FLANGE NUT,M10, Flg Ser

- hex serrated flange, 10 mm - 1.5

10шт.

6

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

3шт.

7

113-83

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5, Full Thd

1шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

9

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

10

236561A1

AIR HOSE,63.50 mm ID x 545.00 mm

- Air duct, Cut from 236559A1 bulk hose below 63.50 mm ID x 545.00 mm

1-2шт.

11

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

CLAMP - adjustable, 2-1/16 - 3 inch diameter

2-4шт.

12

240454A1

LARGE PLATE

PLATE - cover, Serial Range: -JJC0173150

1шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

13

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8", Serial Range: -JJC0173150

1шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

, Serial Range: -JJC0173150

2шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

15

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch, Serial Range: -JJC0173150

2шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

16

246752A1

PLATE

- cover, air intake, left-hand, Serial Range: -JJC0173150

1шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

17

248808A1

PIPE

- air, left-hand, Serial Range: -JJC0173150

1шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

18

248810A1

PIPE

- air,right-hand, Serial Range: -JJC0173150

1шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

19

247058A1

GASKET,5mm Thk

- cover, air intake plate, Serial Range: -JJC0173150

1шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

20

240448A1

LARGE PLATE

PLATE - cover, Serial Range: -JJC0173150

1шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

21

282-1758

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-drilling tapping, hex washer head, No. 10-16 x 1/2 inch, Serial Range: -JJC0173150

6шт.

Use on equipment prior to combine P.I.N. JJC0173150

1шт.

236559A1

HOSE,63.5mm ID x 1270mm L

63.50 mm ID x 15240.00 mm Bulk

1шт.
