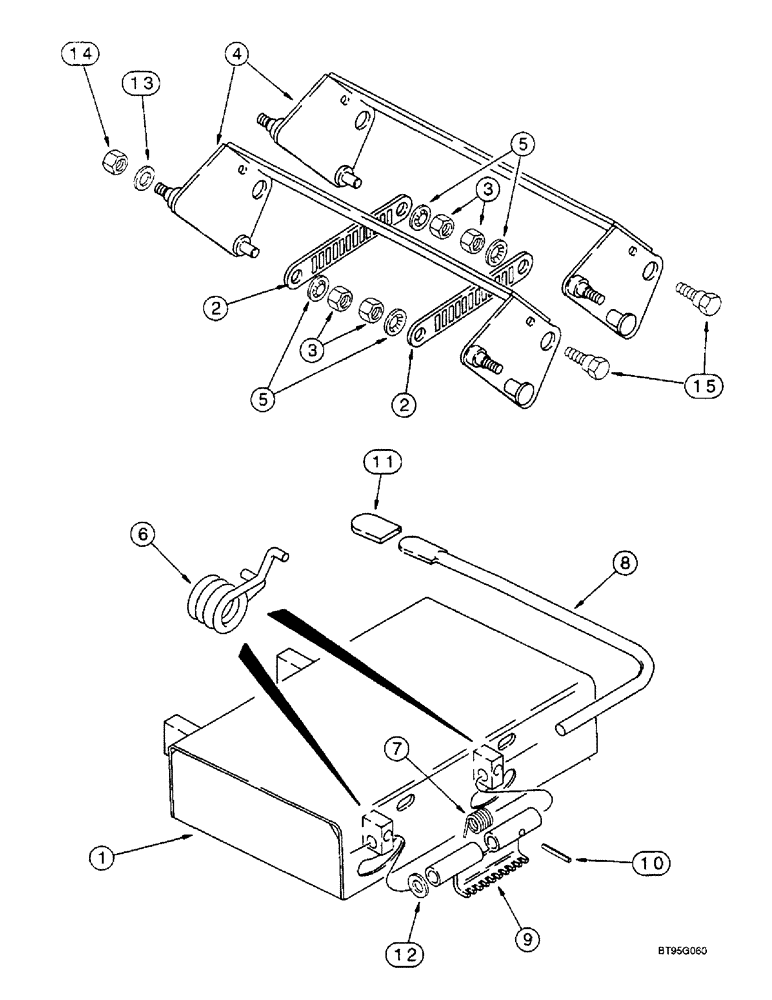

Запчасти Case IH 2144 (9G-36) - HEIGHT ADJUSTMENT SEAT, HEIGHT ADJUSTING (10) - CAB & AIR CONDITIONING

180612A1

SEAT ASSY.

SEAT ASSEMBLY - height adjustment, Includes: Ref. 1 - 15 and P/N 180617A1, also includes items shown on Figure 9G-34

1шт.

180617A1

PACKAGE

ADJUSTER ASSEMBLY - height, seat

1шт.

1

180618A1

LARGE PLATE

BASE - height adjuster, Includes: P/N 180617A1, and Ref. 1 - 14

1шт.

180619A1

LINK

ASSEMBLY - cross

1шт.

2

A47383

LINK

LEVER - adjusting

2шт.

3

231-4206

LOCK NUT,Hex, 3/8"-16, GB

NUT, LOCK, Hex, 3/8"-16, GB

4шт.

4

NSS

NOT SOLD SEPARAT

LINK - cross

2шт.

5

NSS

NOT SOLD SEPARAT

WASHER - flat, special

4шт.

6

A47384

SPRING

- height adjuster, (Replaces spring D82863)

1шт.

180620A1

PACKAGE

KIT - height adjusting, Includes: Ref. 7 - 12

1шт.

7

A47382

SPRING

- latch

1шт.

8

180624A1

LEVER

- height adjusting

1шт.

9

NSS

NOT SOLD SEPARAT

LATCH - height adjusting

1шт.

10

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

1шт.

11

180623A1

BUTTON

KNOB - lever

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - flat, special

4шт.

13

NSS

NOT SOLD SEPARAT

WASHER - flat, special

4шт.

14

232-4246

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

15

180627A1

LOCK BOLT,Shldr, Hex, 1/2" - 13 x 19mm

BOLT - shoulder

4шт.
