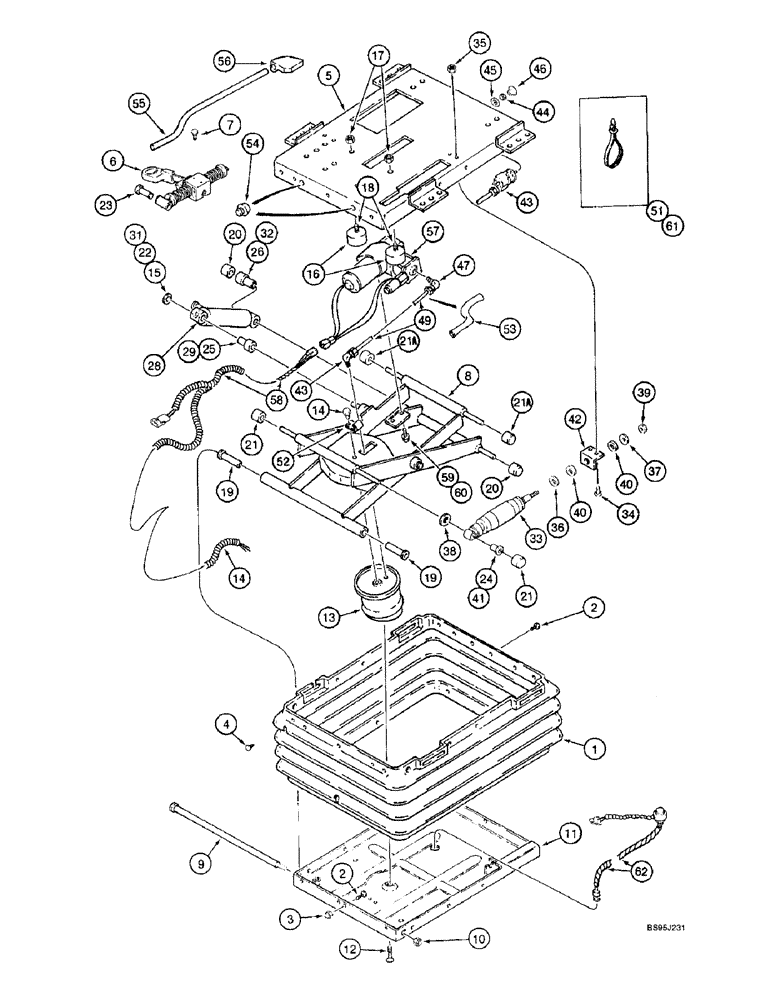

Запчасти Case IH 2144 (9G-30) - AIR SUSPENSION SEAT, SUSPENSION (10) - CAB & AIR CONDITIONING

180577A2

SEAT ASSY.

SEAT ASSEMBLY - air suspension, Includes: Ref. 1 - 63 and P/N 1990647C2 also includes items shown on Figures 9G-20 and 9G-30

1шт.

1990647C2

KIT

- boot, suspension, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BOOT - suspension

1шт.

132872A1

KIT

- boot pin, package of 23 retainers and 3 dome nuts, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

FASTENER - christmas tree

20шт.

3

NSS

NOT SOLD SEPARAT

NUT - acorn

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP - retaining

3шт.

180590A1

SUSPENSION

KIT - suspension service, Includes: Ref. 5 - 18

1шт.

5

180591A1

PLATE

HOUSING - upper

1шт.

6

180592A1

SHOCK ABSORBER

LATCH - isolator

1шт.

7

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

2шт.

8

1990643C1

FRAME ASSY

ARM - scissor, suspension

1шт.

9

A49529

SHAFT

- bushing tube

1шт.

10

231-4206

LOCK NUT,Hex, 3/8"-16, GB

NUT, LOCK, Hex, 3/8"-16, GB

1шт.

11

226560A1

HOUSING

- lower

1шт.

12

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat Phillips, 3/8 NC x 3/4"

1шт.

13

197793A1

SPRING

KIT - air spring

1шт.

14

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

15

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

180593A1

KIT

- bumper, included in the kit is a spacer which is not used, Includes: Ref. 16 - 18

2шт.

16

NSS

NOT SOLD SEPARAT

BUMPER - seat

2шт.

17

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

18

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

2шт.

180594A3

KIT

KIT - rollers and bearings, Includes: Ref. 19 - 27

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - shaft

2шт.

20

NSS

NOT SOLD SEPARAT

ROLLER - bearing

2шт.

21

NSS

NOT SOLD SEPARAT

ROLLER - tube

4шт.

21a

NSS

NOT SOLD SEPARAT

ROLLER - Delrin, wide

2шт.

22

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

23

NSS

NOT SOLD SEPARAT

BEARING - isolator tube

1шт.

24

NSS

NOT SOLD SEPARAT

BEARING - shock

1шт.

25

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - patch bar, not used, not shown

1шт.

1344250C2

KIT

- shock absorber, suspension, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

ABSORBER - shock

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, upper

1шт.

30

A45519

WASHER

- flat, plastic, special, 33/64 x 1-1/8 x 1/16 inch, not used, not shown

1шт.

31

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING - suspension shock, lower

1шт.

227546A1

KIT

- shock, fore/aft (Replaces kit 1990646C3), Includes: Ref. 33 - 41

1шт.

33

NSS

NOT SOLD SEPARAT

SHOCK - fore/aft

1шт.

34

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

35

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

36

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

37

NSS

NOT SOLD SEPARAT

WASHER - flat, 21/64 x 1 x 5/64, not used, not shown

1шт.

38

NSS

NOT SOLD SEPARAT

SPACER - shock

1шт.

39

230-4715

LOCK NUT,5/16"-24, GA

NUT - hex, self-locking, 5/16 inch NF

1шт.

180577A2

SEAT ASSY.

SEAT ASSEMBLY - air suspension, also includes items shown on Figures 9G-20 and 9G-30

1шт.

180590A1

SUSPENSION

KIT - suspension service, continued from previous page

1шт.

227546A1

KIT

- shock, fore/aft, continued from previous page (Replaces kit 1990646C3)

1шт.

40

A49679

BUSHING

- rubber

2шт.

41

NSS

NOT SOLD SEPARAT

BEARING - shock

1шт.

42

1981845C1

ANGLE

- mounting

1шт.

1981852C3

SWITCH

ASSEMBLY - air control, Includes: Ref. 43 - 46

1шт.

43

NSS

NOT SOLD SEPARAT

SWITCH - air

1шт.

44

NSS

NOT SOLD SEPARAT

NUT - hex jam, 5/8 inch NF, special

1шт.

45

493-11065

LOCK WASHER,Ext-Int Tooth, 5/8"

WASHER, LOCK, Ext-Int Tooth, 5/8"

1шт.

46

1987186C2

KNOB

- switch

1шт.

1990548C4

KIT

- air line and fittings, Includes: Ref. 47 - 52

1шт.

47

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, special

2шт.

48

NSS

NOT SOLD SEPARAT

TEE - male, special, not used, not shown

1шт.

49

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 x 38 inch

1шт.

50

NSS

NOT SOLD SEPARAT

ADAPTER - tube, not used, not shown

1шт.

51

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

52

NSS

NOT SOLD SEPARAT

CLAMP - J-type

1шт.

53

179026A1

TUBE

SLEEVE - guard, 3/8 (10) ID x 24-1/4 inch (615 mm) long

1шт.

54

133422A1

BUMPER

- seat

2шт.

55

180596A1

LEVER

ROD - actuator

1шт.

56

180597A1

HANDLE

KNOB - actuator rod

1шт.

180600A1

PACKAGE

KIT - compressor, air suspension seat, Includes: Ref. 57 - 61

1шт.

57

NSS

NOT SOLD SEPARAT

COMPRESSOR - seat

1шт.

58

180599A1

WIRE HARNESS

HARNESS - air suspension seat

1шт.

59

495-31022

WASHER,#10

2шт.

60

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan Phillips, No. 8 NC x 3/8"

2шт.

61

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

6шт.

62

180601A1

WIRE HARNESS

HARNESS - seat, operator present

1шт.

63

A45054

BUMPER,Neoprene

- seat, not shown

1шт.
