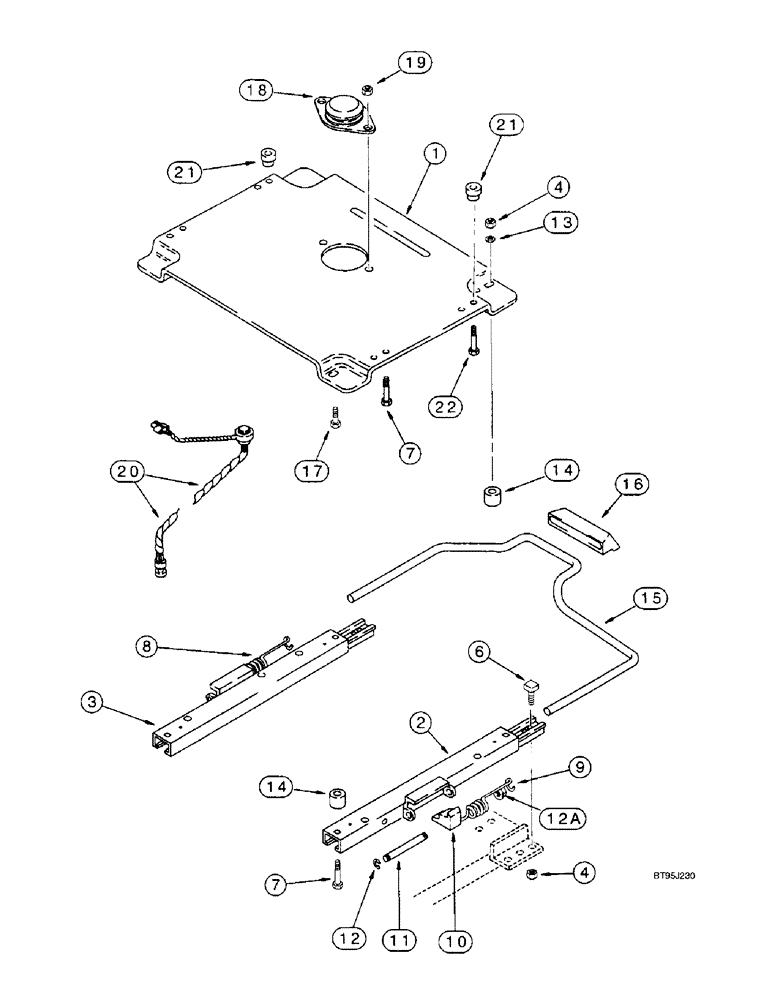

Запчасти Case IH 2144 (9G-28) - AIR SUSPENSION SEAT, PLATE AND SLIDES (10) - CAB & AIR CONDITIONING

180577A2

SEAT ASSY.

SEAT ASSEMBLY - air suspension, Includes: Ref. 1 - 22, also includes items on Figures 9G-20, and 9G-30

1шт.

1

180583A2

LARGE PLATE

PLATE - seat adapter, slide

1шт.

132875A1

SLIDE

KIT - seat slide, Includes: Ref. 2 - 12A

1шт.

2

NSS

NOT SOLD SEPARAT

SLIDE - locking, right-hand

1шт.

3

NSS

NOT SOLD SEPARAT

SLIDE - locking, left-hand

1шт.

4

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

8шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, not used, not shown

4шт.

6

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2-4шт.

8

135513A1

SPRING

- torsion, left-hand

1шт.

9

135514A1

SPRING

- torsion, right-hand

1шт.

10

NSS

NOT SOLD SEPARAT

BLOCK - spring

2шт.

11

NSS

NOT SOLD SEPARAT

PIN - torsion

2шт.

12

103-1131

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

2шт.

12a

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

NUT - push-on type, 1/4 x 17/32 inch

2шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

14

134144A1

SPACER

- plate

4шт.

15

180585A1

LEVER

- slide control

1шт.

16

180587A1

HANDLE

KNOB - slide control

1шт.

17

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

- machine, pan Phillips, 1/4 NC x 5/8 inch

2шт.

18

242306A1

SWITCH

- seat (Replaces switch 1983395C1)

1шт.

19

NSS

NOT SOLD SEPARAT

NUT - locking tab weld, 1/4 inch NC

2шт.

20

180601A1

WIRE HARNESS

HARNESS - seat, operator present

1шт.

21

700711545

CUP WASHER

SPACER - cupped

2шт.

22

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.
