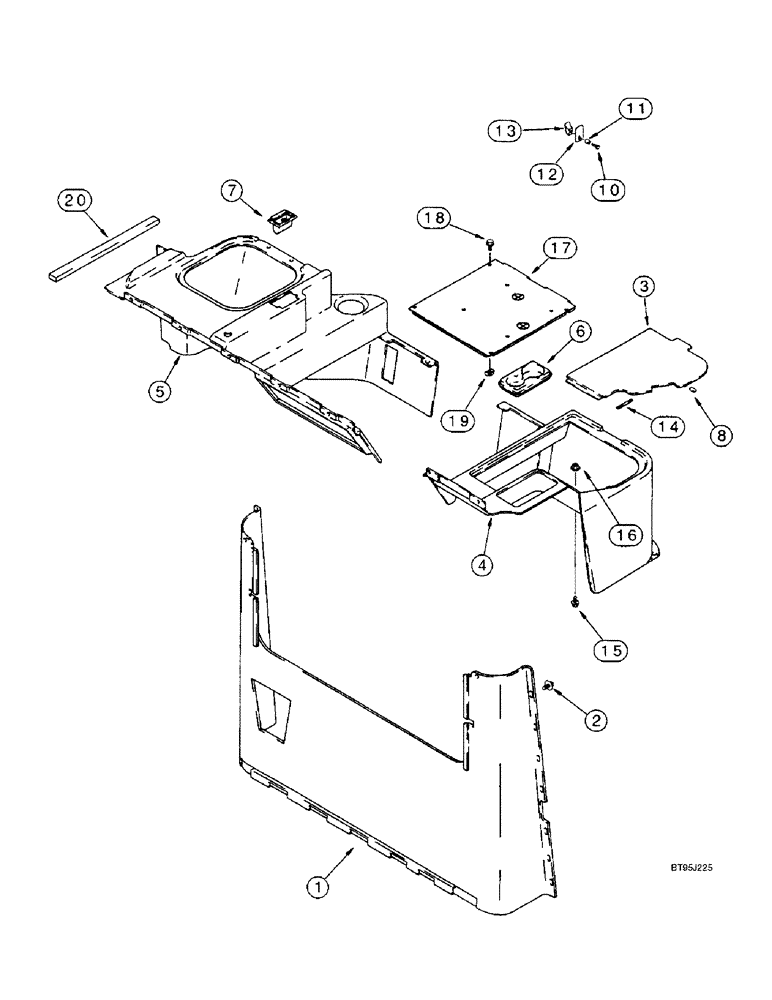

Запчасти Case IH 2144 (9G-14) - CAB, INTERIOR (10) - CAB & AIR CONDITIONING

198900A2

PANEL

ASSEMBLY - rear trim, Serial Range: -JJC0173150

1шт.

224515A1

PANEL

ASSEMBLY - rear trim, Start Serial: JJC0173150

1шт.

1

NSS

NOT SOLD SEPARAT

PANEL - rear trim, order panel assembly

1шт.

2

121064A1

CLASP

FASTENER - christmas tree

14шт.

3

189286A1

PANEL

COVER - fuse access, includes fuse and relay decal, see page 9H-39 for decal, Serial Range: -JJC0172845

1шт.

3

140320A1

COVER

- fuse access, see page 9H-39 for decal, Start Serial: JJC0172845

1шт.

4

140322A1

COVER

- pedestal, right-hand

1шт.

5

140321A2

COVER

- pedestal, left-hand

1шт.

6

1344244C1

TRAY

- utility, coffee cup holder

1шт.

7

124234A1

TRAY

ASHTRAY - cab

1шт.

8

121067A1

FASTENER

- velcro, 1 (25.4) x 12 inch (305 mm) long, cut from 121068A1 bulk stock below

4шт.

10

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

SCREW, SELF TAPPING, Hex Hd, #10 x 1 1/4"

1шт.

11

60-6576T1

SPACER

- coat hook

1шт.

12

60-6520T1

PLATE

- coat hook support

1шт.

13

3234176R1

COAT HOOK

HOOK - coat

1шт.

14

1990258C1

SEAL

SEAL - foam, adhesive-backed, 3-5/32 inch (80 mm) long, cut from 187874C1 bulk seal below

1шт.

16

231-51409

SERRATED NUT,Flg, USR, #10-24

18шт.

17

NSS

NOT SOLD SEPARAT

SUPPORT - seat

1шт.

18

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

19

786618C1

NUT

- U-type, 5/16 inch NC

4шт.

20

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

SEAL - foam, adhesive-backed, 19-5/8 inch (500 mm) long

1шт.

121068A1

CLASP

VELCRO - bulk, adhesive-backed, 1 inch wide, purchase locally

1шт.

187874C1

GASKET

SEAL - bulk, adhesive-backed, 1/8 (3) x 3/8 (10) x 600 inch (15240 mm) long

1шт.

15

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

18шт.
