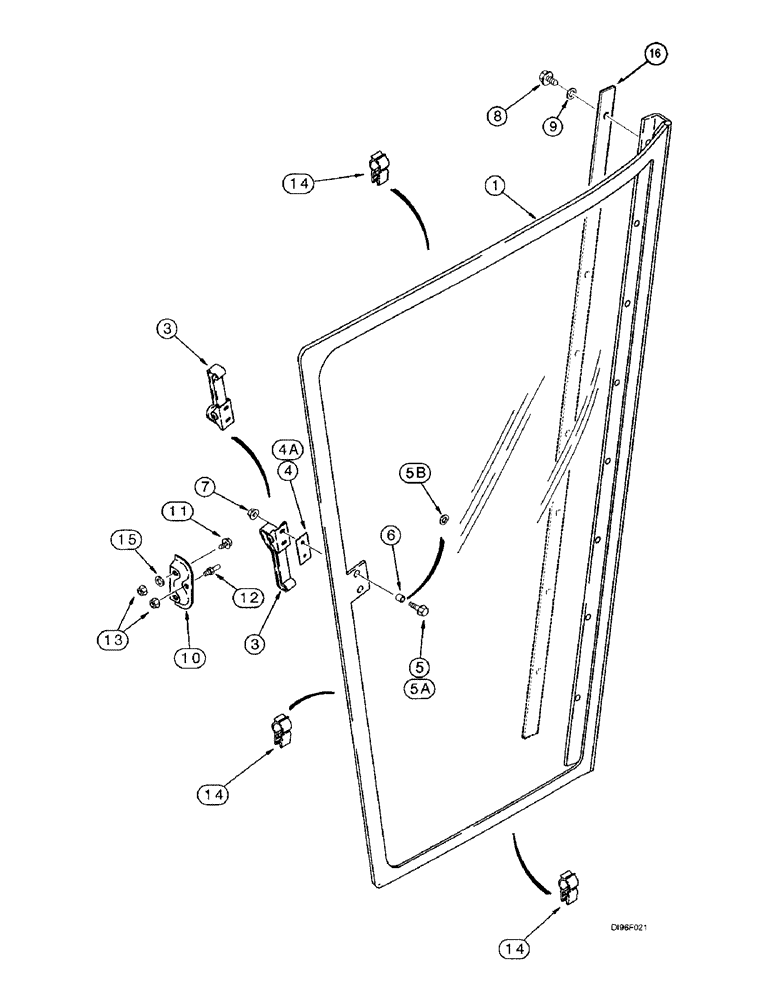

Запчасти Case IH 2144 (9G-06) - CAB, RIGHT HAND DOOR ASSEMBLY (10) - CAB & AIR CONDITIONING

1

186390A2

GLASS

- Glass, RH, Incl. hinge

1шт.

3

1955184C1

LEVER

- door, right-hand

1шт.

4

1955189C1

PIVOT PLATE

CUSHION - glass, 1-1/4 (32) x 2-3/4 inch (70 mm), lever, used with bolt 117096A1, item 5, if used

1шт.

4a

194190A2

GASKET,3.2mm Thk

CUSHION - glass, 1-3/16 (30) x 2-7/16 inch (62 mm), lever, used with bolt 97006C1, item 5A and washer 225913A1, item 5B, if used

1шт.

5

117096A1

FLANGE BOLT

BOLT - hex flange. special, 6 - 1 x 16 mm, used with 1955189C1, item 4, if used

2шт.

5a

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, special, 6 - 1 x 20 mm, used with item 4A, 194190A2 cushion and item 5B, 225913A1 washer, if used

2шт.

5b

225913A1

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

- flat, special, used with cushion 194190A2, item 4A and bolt 97006C1, item 5A, if used

2шт.

6

109171C1

BUSHING,6.6mm ID x 8.74mm OD x 6.46mm L

- bolt, door glass

2шт.

7

97005C1

FLANGE NUT

- hex flange, self-locking, special, 6 mm - 1

2шт.

8

281-14512

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW, SELF TAPPING, Hex Wash Hd, #10 x 3/4"

8шт.

9

495-31022

WASHER,#10

8шт.

10

117723A2

SUPPORT

BRACKET - pin mounting, door catch

1шт.

11

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

12

117724A1

PIN,10mm OD x 37.8mm L

- door catch

1шт.

13

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

14

234089A1

DOOR SEAL

SEAL - door, 176-1/2 inch (4483 mm) long (Replaces seal 1990761C2)

1шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

16

193316A1

SHIM

- door hinge

1шт.
