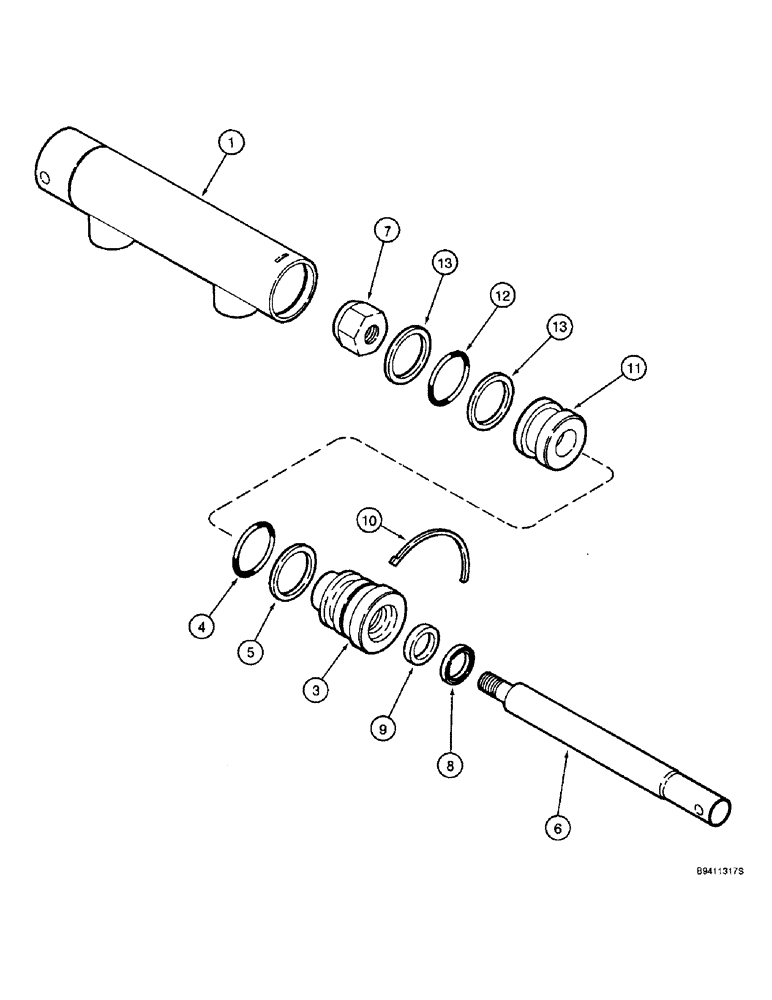

Запчасти Case IH 2144 (8-52) - FEEDER CLUTCH AND SEPARATOR CLUTCH CYLINDERS (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
133405C92
CYLINDER
ASSEMBLY - feeder clutch, 2 (51) ID x 2-1/2 inch (63 mm) stroke, Includes: 1 - 13
1шт.
87337239R
REMAN-HYD CYLINDER
2144 CASE IH AXIAL-FLOW COMBINE, Assembly Feeder Clutch, 2 (51) ID x 2-1/2 inch (63 mm) stroke (1/95-12/97), Reman for New PN 133405C92
1шт.
87337239C
CORE-HYD CYLINDER
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - cylinder, order cylinder assembly 133405C92
1шт.
3
108641C1
GLAND
- cylinder
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING - 1-5/8 x 2 inch, order kit 63884C92
1шт.
5
NSS
NOT SOLD SEPARAT
WASHER - O-ring backup, order kit 63884C92
1шт.
6
108639C1
PISTON ROD
ROD - piston, cylinder
1шт.
7
232-41110
NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
1шт.
8
NSS
NOT SOLD SEPARAT
WIPER - piston rod seal, order kit 63884C92
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL - piston rod urethane, order kit 63884C92
1шт.
10
NSS
NOT SOLD SEPARAT
WIRE - retaining, order kit 63884C92
1шт.
11
108640C2
PISTON
- cylinder
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - 1-5/8 x 2 inch, order kit 63884C92
1шт.
13
NSS
NOT SOLD SEPARAT
WASHER - backup, O-ring, order kit 63884C92
2шт.
63884C92
SEAL KIT
KIT - seal, includes: Ref. 4, 5, 8, 9, 10, 12 & 13
1шт.
133408C92
CYLINDER,Double Acting, 25.4mm Rod, 63.5mm Stroke
ASSEMBLY - separator clutch, 2 (51) ID x 12-1/2 inch (318 mm) stroke, Includes: Ref. 1 - 13
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - cylinder, order cylinder assembly 133408C92
1шт.
3
108641C1
GLAND
- cylinder
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING - 1-5/8 x 2 inch, order kit 63884C92
1шт.
5
NSS
NOT SOLD SEPARAT
WASHER - backup, O-ring, order kit 63884C92
1шт.
6
108639C1
PISTON ROD
ROD - piston, cylinder
1шт.
7
232-41110
NUT,5/8"-11, GC
NUT, LOCK, 5/8"-11, GC
1шт.
8
NSS
NOT SOLD SEPARAT
WIPER - piston rod seal, order kit 63884C92
1шт.
9
NSS
NOT SOLD SEPARAT
SEAL - urethane, piston rod, order kit 63884C92
1шт.
10
NSS
NOT SOLD SEPARAT
WIRE - retaining, order kit 63884C92
1шт.
11
108640C2
PISTON
- cylinder
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - 1-5/8 x 2 inch, order kit 63884C92
1шт.
13
NSS
NOT SOLD SEPARAT
WASHER - backup, O-ring, order kit 63884C92
2шт.
63884C92
SEAL KIT
KIT - seal, includes: Ref. 4, 5, 8, 9, 10, and 12
1шт.
