Запчасти Case IH 2144 (8-50) - SEPARATOR AND UNLOADER CLUTCH VALVE ASSEMBLY, 131152A1 (07) - HYDRAULICS

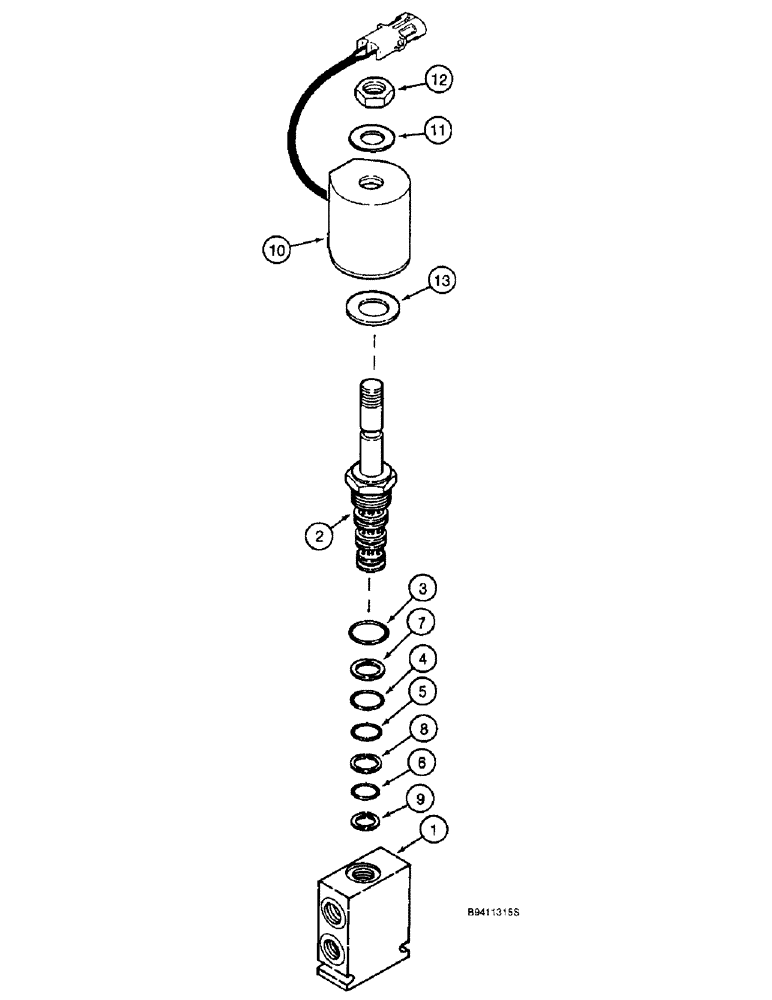

Схема запчастей Case IH 2144 - (8-50) - SEPARATOR AND UNLOADER CLUTCH VALVE ASSEMBLY, 131152A1 (07) - HYDRAULICS
10
13
4
1
9
3
8
11
2
5
7
6
12

Артикул

Название

Примечание

Количество

131152A1

CONTROL VALVE

VALVE ASSEMBLY - separator/unloader clutch, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 131152A1

1шт.

2

187849C1

SOLENOID VALVE

VALVE - solenoid, 4-way, cartridge only

1шт.

187850C1

SEAL KIT

KIT - seal replacement, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - upper

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - middle, large

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - middle, small

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - lower

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - backup, large O-ring

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup, small O-ring

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - backup, lower O-ring

1шт.

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

COIL AND HOUSING - solenoid

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - valve

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - cover

1шт.

Выбрано товаров: 16
