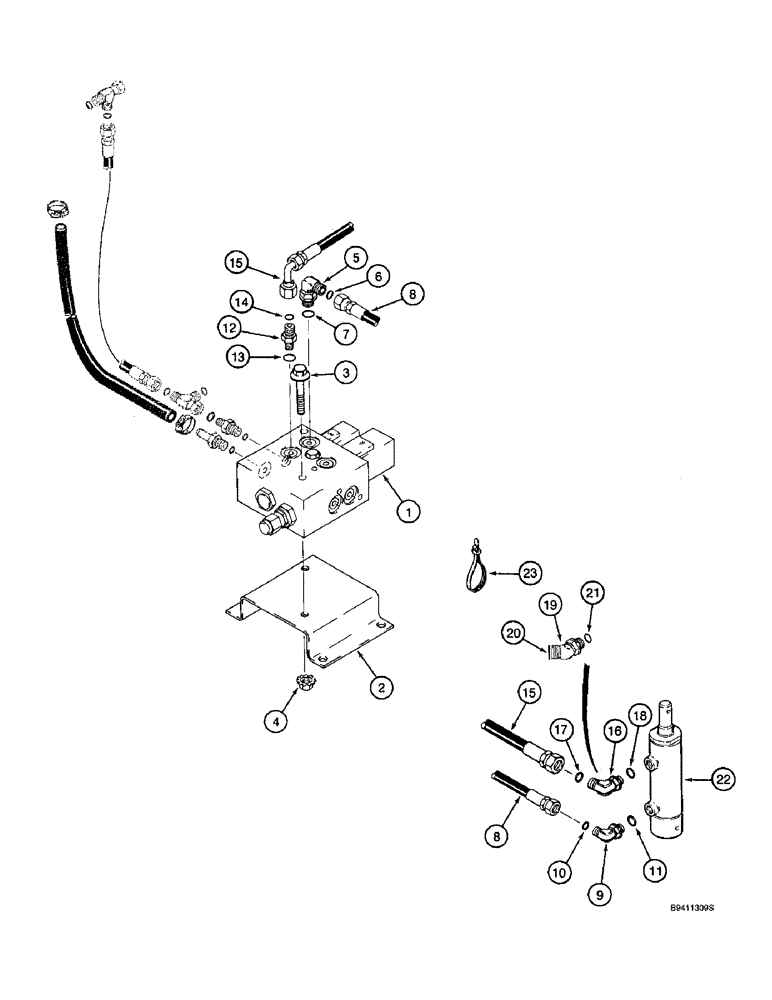

Запчасти Case IH 2144 (8-44) - FEEDER CLUTCH SYSTEM (07) - HYDRAULICS

1

129010A3

VALVE

ASSEMBLY - parking brake and feeder clutch, parts list Figure 8-34

1шт.

2

128293A1

SUPPORT

BRACKET - mounting, valve

1шт.

3

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm

2шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

5

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 6 and7

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

128047A1

HOSE

- base end of feeder clutch cylinder, 61-13/16 inch (1570 mm) long

1шт.

9

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 10 and 11

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 13 and 14 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

131391A2

HOSE

- rod end of feeder clutch cylinder, 61-13/16 inch (1570 mm) long

1шт.

16

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º, 13/16-16 face seal x 9/16-18 inch Adj O-ring boss, Units without a rock trap, Incl Ref 20 and 21

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

201-321

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 45 degree, 13/16-16 face seal x 9/16-18 inch adjustable O-ring boss, units with a rock trap

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

133405C92

CYLINDER

ASSEMBLY - 2 (51) ID x 2-1/2 inch (63 mm) stroke, feeder clutch, parts list Figure 8-52

1шт.

22

87337239R

REMAN-HYD CYLINDER

2144 CASE IH AXIAL-FLOW COMBINE, Assembly 2 (51) ID x 2-1/2 inch (63 mm) stroke, Feeder Clutch (1/95-12/97), Reman for New PN 133405C92

1шт.

22

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

23

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

125829A1

PRESSURE SWITCH

parking brake pressure

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
