Запчасти Case IH 2144 (8-42) - REEL FORE AND AFT, AND LIFT SYSTEMS (07) - HYDRAULICS

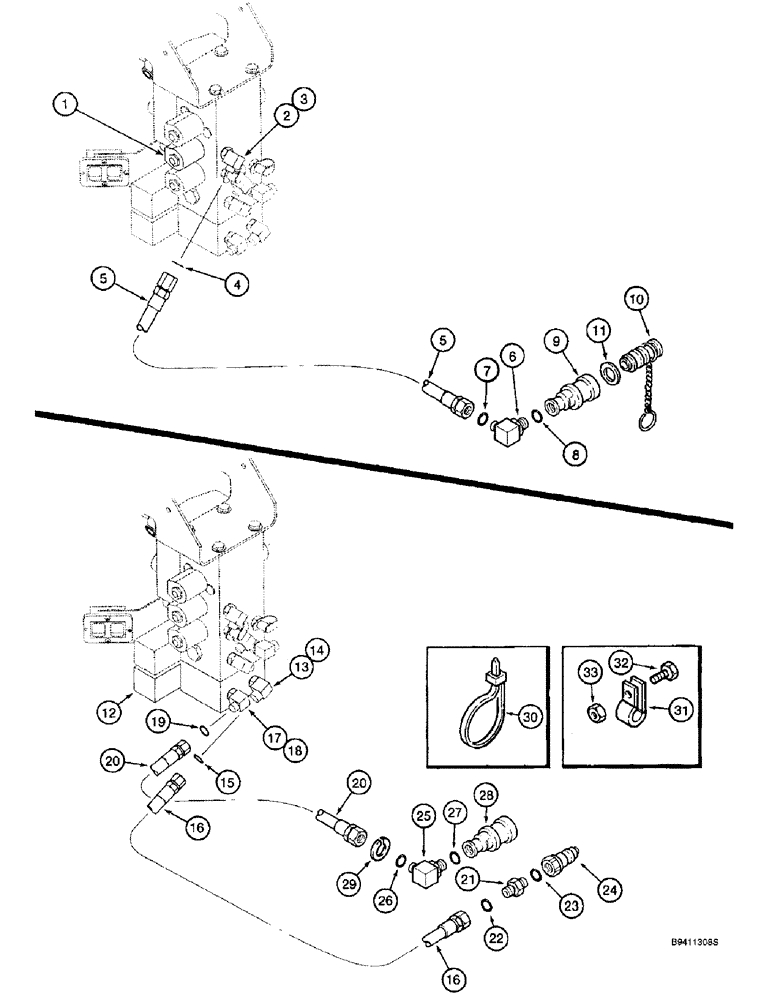

Схема запчастей Case IH 2144 - (8-42) - REEL FORE AND AFT, AND LIFT SYSTEMS (07) - HYDRAULICS
15
23
7
11
22
9
10
20
33
3
19
18
6
16
20
2
29
16
28
17
24
26
4
8
30
25
31
32
27
5
1
5
13
12
14
21

Артикул

Название

Примечание

Количество

1

124566A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift with reel fore and aft, parts list Figure 8-28

1шт.

2

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

90°, 9/16"-18 x 9/16"-18, Adj, ORFS, Includes Ref. 3, 4

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

128029A1

HOSE

- reel lift, 114-1/4 inch (2900 mm) long

1шт.

6

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 11/16-16 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 7, 8

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing female, 7/8-14 inch

1шт.

10

1954133C1

PLUG

PLUG ASSEMBLY - coupling, dust, Includes: Ref. 11

1шт.

11

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- dust plug

1шт.

12

131153A2

CONTROL VALVE

VALVE ASSEMBLY - reel fore and aft, Includes: P/N 134112A1 parts list Figure 8-28

1шт.

13

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90 degree, 11/16-16 face seal x 9/16-18 inch adjustable O-ring boss, Includes: Ref. 14, 15, reel fore and aft

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Reel fore and aft -012, 90 Duro, .364" ID x .070" Thk

1шт.

16

1989471C1

HOSE

- reel aft, 150 inch (3810 mm) long, reel fore and aft, Includes: P/N 134112A1

1шт.

17

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

90°, 9/16"-18 x 9/16"-18, Adj, ORFS, Reel fore and aft, Includes Ref. 18 & 19

1шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Reel fore and aft -011, 90 Duro, .301" ID x .070" Thk

1шт.

20

128029A1

HOSE

- reel fore, 114-1/4 inch (2900 mm) long, reel fore and aft, Includes: P/N 134112A1

1шт.

21

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

ADAPTER - straight, 11/16-16 face seal x 7/8-14 inch O-ring boss, Includes: Ref. 22, 23, reel fore and aft

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Reel fore and aft

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Reel fore and aft -016, 90 Duro, .614" ID x .070" Thk

1шт.

24

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF, reel fore and aft, Includes: P/N 134112A1

1шт.

25

201-362

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 11/16-16 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 26, 27, reel fore and aft

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Reel fore and aft

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Reel fore and aft -016, 90 Duro, .614" ID x .070" Thk

1шт.

28

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing female, 7/8-14 inch, reel fore and aft, Includes: P/N 134112A1

1шт.

29

1541792C1

WASHER

WASHER - lock, red, special, reel fore and aft

1шт.

30

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, reel fore and aft

1шт.

31

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Reel fore and aft 1/2", Insul, 3/8" Bolt

1шт.

32

409-7612

BOLT,3/8"-16 x 1.09" OAL

Reel fore and aft Hex Flg, 3/8"-16 x 3/4", Serr

1шт.

33

231-5146

FLANGE NUT,3/8"-16

Reel fore and aft Flg, USR, 3/8"-16

1шт.

134112A1

VALVE

KIT - field, reel fore and aft, includes: Ref. 12, 16, 20, 24 & 28, reel fore and aft

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Reel fore and aft

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Reel fore and aft

1шт.

Выбрано товаров: 34
