Запчасти Case IH 2144 (8-28) - CONTROL VALVE, HEADER LIFT WITH FORE AND AFT VALVE ASSEMBLY (07) - HYDRAULICS

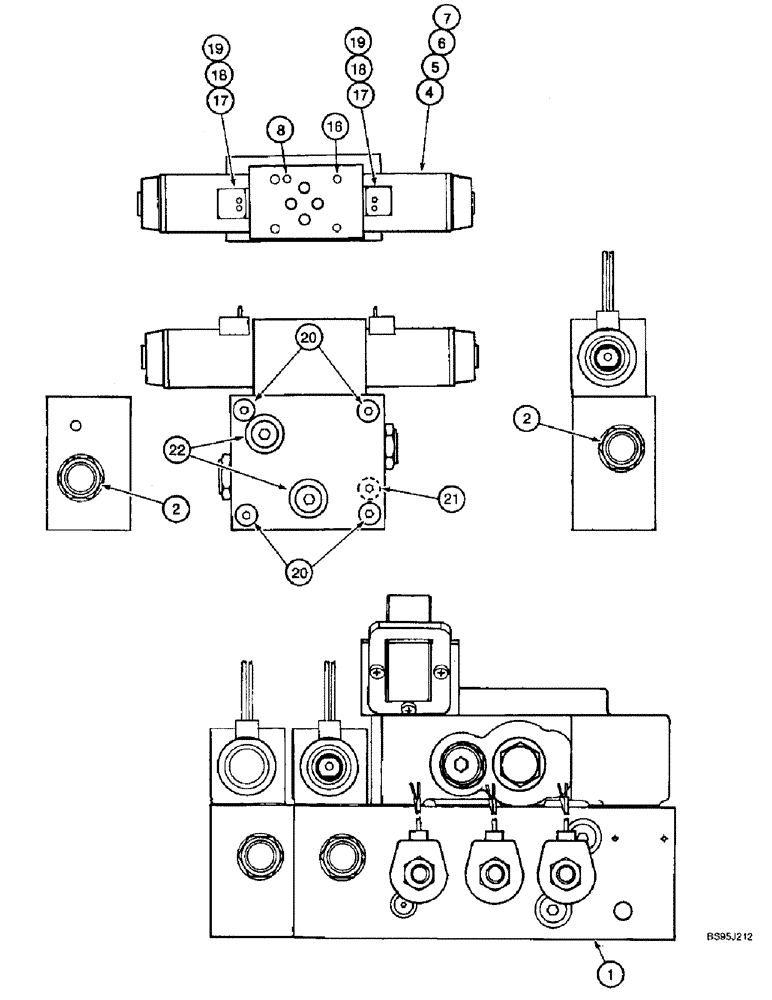

Схема запчастей Case IH 2144 - (8-28) - CONTROL VALVE, HEADER LIFT WITH FORE AND AFT VALVE ASSEMBLY (07) - HYDRAULICS
17
8
6
16
4
20
2
16
2
5
19
19
20
21
1
22
7
18
17

Артикул

Название

Примечание

Количество

124566A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift with reel fore and aft, Includes: Ref. 1 - 22

1шт.

1

124565A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift, parts list Figure 8-26

1шт.

131153A2

CONTROL VALVE

VALVE ASSEMBLY - reel fore and aft, Includes: Ref. 2 - 22

1шт.

2

190712A1

VALVE

ASSEMBLY - check, single pilot operated, Includes: Ref. 3

2шт.

3

1260872C91

SEAL KIT

KIT - seal replacement, check valve, not shown

1шт.

190990A1

VALVE

ASSEMBLY - 4-way, 3 position, stack, Includes: Ref. 4 - 19

1шт.

4

196736A1

BODY

ARMATURE - solenoid

2шт.

5

196737A1

SPLIT PIN/SAFETY PIN

PIN - push

2шт.

6

196738A1

SPRING

- centering

2шт.

7

196739A1

WASHER

- special

2шт.

8

196710A1

PLUG

- orifice

1шт.

9

191120A1

SEAL KIT

KIT - seal replacement, 4-way, 3 position valve, not shown, no longer available as a unit, order components, Includes: Ref. 10 - 15

1шт.

10

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

4шт.

11

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

12

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

2шт.

13

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

2шт.

14

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

15

S83071

BACK-UP RING

RING - backup

2шт.

16

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW, , Mounting Hex Soc Hd, #10-24 x 1 1/4"

4шт.

17

191119A1

SOLENOID

- coil, with diode, 12 volt, DC

2шт.

18

188106A1

NUT

- special, solenoid coil

2шт.

19

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

2шт.

20

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

4шт.

21

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

22

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

2шт.
