Запчасти Case IH 2144 (8-26) - CONTROL VALVE, HEADER LIFT VALVE ASSEMBLY (07) - HYDRAULICS

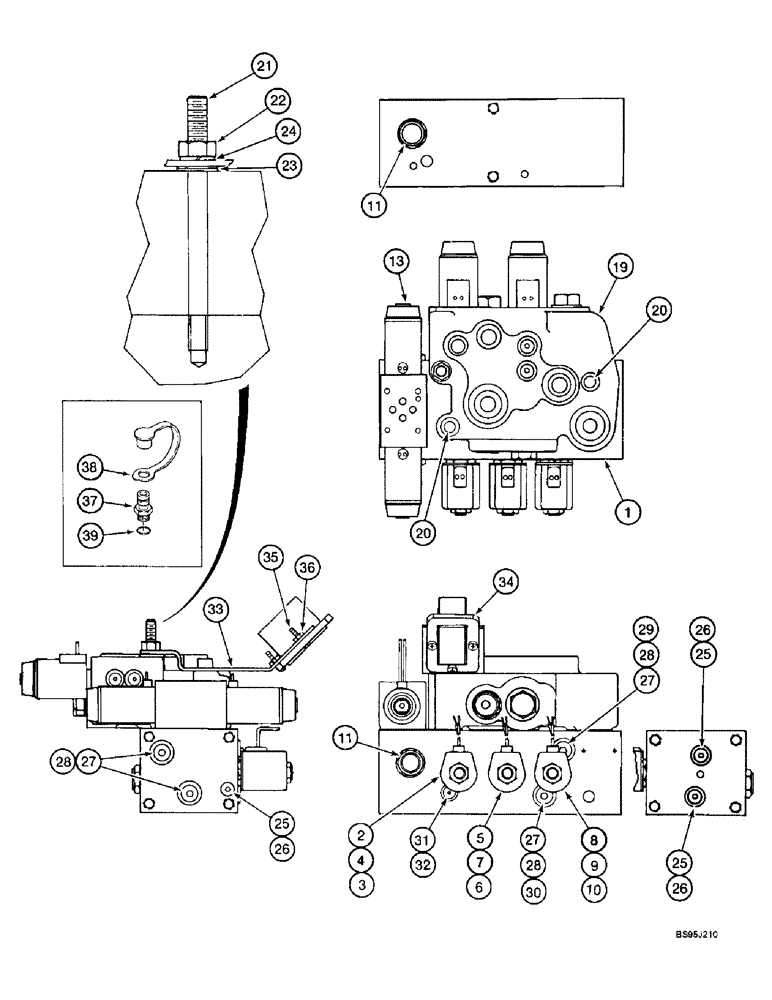

Схема запчастей Case IH 2144 - (8-26) - CONTROL VALVE, HEADER LIFT VALVE ASSEMBLY (07) - HYDRAULICS
1
2
7
26
19
11
28
13
25
27
9
25
34
26
6
30
32
37
10
8
27
11
31
25
39
4
20
27
28
36
20
5
21
38
3
29
35
23
33
26
28
22
24

Артикул

Название

Примечание

Количество

124565A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - header lift valve, order valve assembly 124565A3, Includes: Ref. 1 - 36

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - solenoid, 2-way, sense line, order components, Includes: Ref. 2 - 4

1шт.

2

191121A1

VALVE

- solenoid, 2-way, cartridge only, sense line

1шт.

3

149942C1

SEAL KIT

KIT - seal replacement, 2-way solenoid valve

1шт.

4

190715A1

SOLENOID

- coil, with diode and connector, 12 volt, DC

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - solenoid, 2-way, reel lift, order components, Includes: Ref. 5 - 7

1шт.

5

190710A1

VALVE

- solenoid, 2-way, cartridge only, reel lift

1шт.

6

149942C1

SEAL KIT

KIT - seal replacement, 2-way solenoid valve

1шт.

7

190715A1

SOLENOID

- coil, with diode and connector, 12 volt, DC

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - solenoid, 3-way, reel lift, order components, Includes: Ref. 8 - 10

1шт.

8

190711A1

VALVE

ASSEMBLY - solenoid, 3-way, cartridge only, reel lift

1шт.

9

1260872C91

SEAL KIT

KIT - seal replacement, 3-way solenoid valve

1шт.

10

190715A1

SOLENOID

- coil, with diode and connector, 12 volt, DC

1шт.

11

190712A1

VALVE

ASSEMBLY - check, single pilot operated, Includes: Ref. 12

2шт.

12

1260872C91

SEAL KIT

KIT - seal replacement, check valve, not shown

1шт.

13

190717A1

VALVE

ASSEMBLY - 4-way, 3 position, stack, complete, parts list Figure 8-26

1шт.

19

186572A1

CONTROL VALVE

VALVE ASSEMBLY - header height, parts list figure 8-32

1шт.

20

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

2шт.

21

190716A1

STUD

- special, 10 - 1.5 x 130 mm

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

24

892-11010

LOCK WASHER,M10

1шт.

25

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 26 Hex Soc, 7/16"-20 ORB

3шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

27

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 28 Hex Soc, 9/16"-18 ORB

4шт.

29

190713A1

PLUG

- orifice, 0.036 inch diameter

1шт.

30

190714A1

PLUG

- orifice, 0.055 inch diameter

1шт.

31

86632547

PLUG,Hex, 5/16"-24 ORB

Includes Ref. 32 Hex Soc, 5/16"-24 ORB

4шт.

32

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

33

141440A1

SUPPORT

BRACKET - electrical connector

1шт.

34

225417C1

ELEC CONNECTOR,Male, 24 Pin, 16 - 18

CONNECTOR - electrical, 24 pin

1шт.

35

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

- machine, pan Phillips, 4 - 0.7 x 20 mm

3шт.

36

832-10404

NUT,M4 x 0.7, Cl 8.8

NUT - hex, self-locking, 4 mm - 0.7

3шт.

37

1541849C1

COUPLING

ASSEMBLY - diagnostic, not included with header lift valve assembly, Includes: Ref. 38 and 39

2шт.

38

H434163

DUST CAP

CAP - dust

1шт.

40

235719A1

PORT

ORIFICE - restrictor, unloader swing valve, .026 inch diameter, not shown

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
