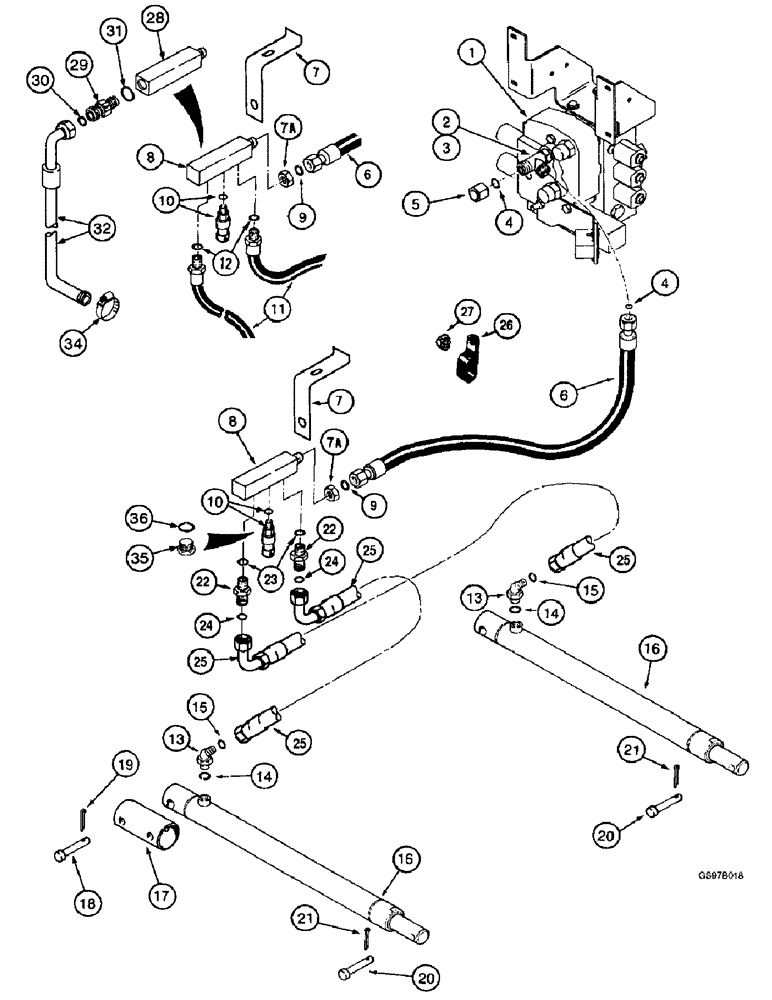

Запчасти Case IH 2144 (8-22) - HEADER LIFT SYSTEM (07) - HYDRAULICS

1

124565A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift, parts list Figure 8-26

1шт.

2

201-420

TEE,1"-14 x 7/8"-14 Run, ORFS

- 1-14 face branch x face x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 3 and 4

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

5

201-906

CAP,1"-14 ORFS

- hex, 1-14 inch face seal

1шт.

6

128024A2

HOSE,15.88mm ID x 2160mm L

- header lift supply, 85 inch (2160 mm) long

1шт.

7

136489A1

SUPPORT

- manifold bulkhead fitting

1шт.

7a

201-919

BHD LOCK NUT,1" - 14

NUT, Blkhd, 1"-14

1шт.

8

128700A1

MANIFOLD

ASSEMBLY - bulkhead, lift cylinder hoses, Includes: Ref. 9 and 10

1шт.

9

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

122761A1

SENSOR

- header float pressure, see figure 4-24 for electrical harness connection, if used

1шт.

11

128027A1

HOSE,12.7mm x 1070mm L, 13/16" - 16 ORFS Female Swivel Straight, 3/4" - 16 ORB Male Fixed Straight

ASSEMBLY - manifold to header lift cylinders, 42-1/8 inch (1070 mm) long, Includes: Ref. 12

2шт.

12

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

13

201-348

ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

45°, 13/16"-16 x 3/4"-16. Adj, ORFS, Models without rock trap, Includes items 14 & 15

2шт.

13a

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

- 90°, 13/16-16 face seal x 3/4-16" adjustable O-ring boss, Models with rock trap, Not shown, Incl. Ref. 14 and 15

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

1986556C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 2-7/8 (73) ID x 22-15/16 inch (582 mm) stroke, head lift, no longer available, order cylinder assembly 251807A2

2шт.

16

87385882R

REMAN-HYD CYLINDER

2144, Reman For New P/N's 1986556C2, 251807A1 & A2, 87385882

2шт.

16

87385882C

CORE-HYD CYLINDER

Return Number

2шт.

16

251807A2

CYLINDER

ASSEMBLY - header lift, 2-7/8 (73) ID x 22-15/16 inch (582 mm) stroke, part number stamped on cylinder (Replaces cylinder assembly 1986556C2), Includes: Ref. 16A

2шт.

16

87385882R

REMAN-HYD CYLINDER

Reman for new P/N 251807A2

2шт.

16

87385882C

CORE-HYD CYLINDER

Return Number

2шт.

16a

188292A2

SEAL KIT

KIT - seal, repair, to service 1986556C2 cylinder assembly, not shown

1шт.

16a

251811A1

SEAL KIT

KIT - seal, repair, used with cylinder assembly 251807A2, not shown

1шт.

17

124059A2

TUBE SPACER

TUBE - extension, lift cylinder, used with 54-1/2 inch feeder models with rock trap

2шт.

18

439-52092

HEADED PIN,1 1/4" x 5 3/4"

PIN - headed, 1-1/4 x 5-3/4 inch, extension tube to cylinder, if used

2шт.

18

242303A1

PIN

- mounting, 1-1/4 x 6-1/2 inch, extension tube to cylinder, not shown, if used

2шт.

19

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2-4шт.

20

439-52092

HEADED PIN,1 1/4" x 5 3/4"

PIN - headed, 1-1/4 x 5-3/4 inch, header lift cylinder mounting, if used

4шт.

20

242303A1

PIN

- mounting, 1-1/4 x 6-1/2 inch, header lift cylinder mounting, not shown, if used

4шт.

21

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

4-8шт.

22

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 13/16-16 face seal x 3/4-16 inch O-ring boss, Includes Ref. 23 and 24

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

235849A1

HOSE

- manifold to header lift cylinders, 48 inch (1220 mm) long

2шт.

26

470375C1

CLAMP,1", Insul, 3/8" Bolt

- double, purchase locally

1шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

28

249910A1

MANIFOLD

- feeder lift valve cylinders, thermal relief protection

1шт.

29

252300A1

VALVE

- thermal relief

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Thermal relief valve

1шт.

31

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Thermal relief valve -012, 90 Duro, .364" ID x .070" Thk

1шт.

32

254734A1

FLEXIBLE HOSE

HOSE - thermal relief valve drain, 33-13/16 inch (860 mm) long

1шт.

33

254733A1

HOSE,0.38" ID x 30.00"

Parking Brake Valve Return, Cut from Bulk Hose P/N S118400X Below, Used with Hose 254734A1, Iem 32 Above, Not Shown 0.38" ID x 30.00"

1шт.

34

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable #6, 0.44/0.78 Type M Worm

1шт.

35

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

If used Hex Hd, 3/8"-24 ORB

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE - bulk, 3/8 (10) x 5/8 (15) x 300 inch (7620 mm) long

1шт.

36

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.
