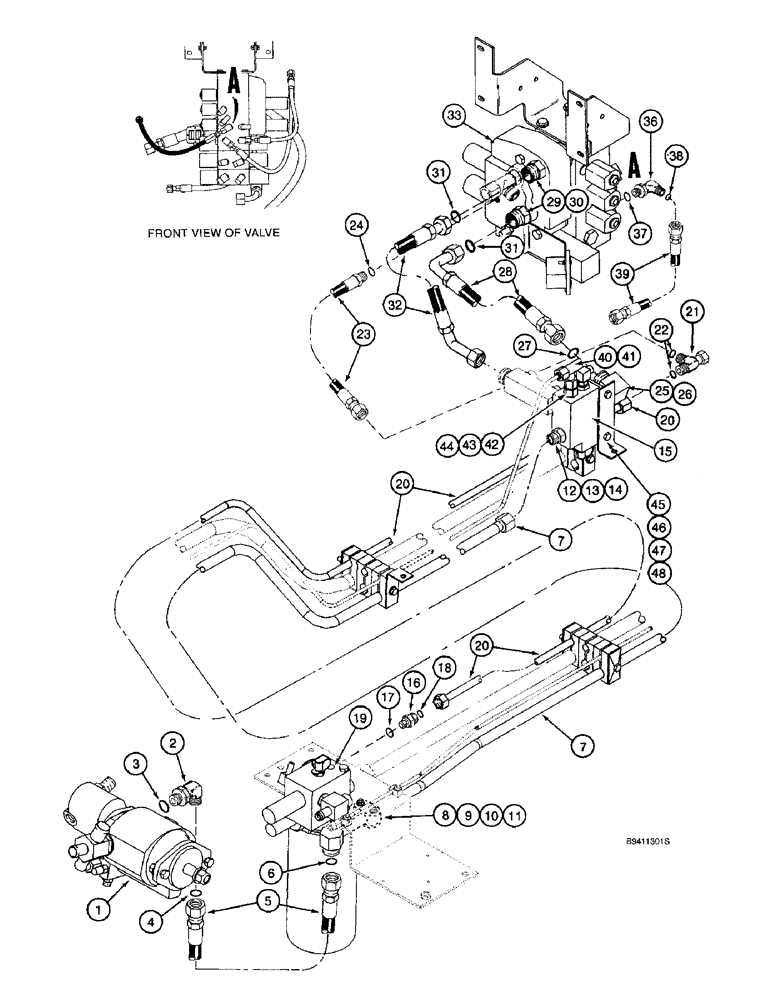

Запчасти Case IH 2144 (8-20) - HEADER LIFT VALVE SUPPLY SYSTEM (07) - HYDRAULICS

1

123266A2

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary, tandem, parts list figure 8-18

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 3 and 4

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

127988A1

FLEXIBLE HOSE

HOSE - header lift supply, 33 inch (840 mm) long

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

7

124367A2

HYD TUBE,0.75" OD, 1957.9, 221.6 mm Length

TUBE - header lift supply

1шт.

8

1541538C1

CLAMP

- two piece, 3/4 inch OD tube

1шт.

9

1541537C1

PLATE

- clamp

1шт.

10

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

11

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

12

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Adapter, straight, Includes Ref. 13 and 14 1 3/16"-12 ORFS x 7/8"-14 ORB

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

114851A2

VALVE

ASSEMBLY - priority, steering, parts list figure 5-48

1шт.

16

201-126

HYD CONNECTOR,13/16"-16 ORFS x 9/16"-20 ORB

ADAPTER - straight, 13/16-16 face seal x 9/16-18 inch O-ring boss, Includes: Ref.17 and 18

1шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

19

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator, see figure 8-36 for correct assembly, Includes: Ref. 19A

1шт.

19a

222894A1

VALVE POPPET

VALVE ASSEMBLY - pressure reducing, not shown (Replaces valve assembly 190708A1), Includes: Ref. 19B

1шт.

19b

190709A1

SEAL KIT

KIT - seal repair, valve cartridge, not shown

1шт.

20

126869A1

TUBE

- supply, from pressure regulator

1шт.

21

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

- 13/16-16 inch face branch x face x swivel face

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

128101A1

FLEXIBLE HOSE

HOSE ASSEMBLY - header lift valve regulator supply, 27-3/16 inch (690 mm) long, Includes: Ref. 24

1шт.

25

201-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

- 90 degree, 1-3/16-12 face seal x 7/8-14 inch adjustable O-ring boss, Includes: Ref. 26 and 27

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

28

135829A2

HOSE,15.88mm ID x 470mm L

- header lift valve supply, 18-1/2 inch (470 mm) long

1шт.

29

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Includes Ref. 30 and 31 1 3/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

32

128097A1

HOSE,19.05mm ID x 710mm L

- header lift valve return, 28 inch (710 mm) long

1шт.

33

124565A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift, parts list figure 8-26, if used

1шт.

33

124566A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift with reel fore and aft, parts list Fig. 8-28 if used

1шт.

33

124567A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift with reel fore and aft and field tracker, parts list Fig. 8-30, if used

1шт.

33

124567A3R

REMAN-HYD VALVE

Reman VALVE ASSEMBLY - header lift with reel fore and aft and field tracker, parts list Fig. 8-30, if used

1шт.

33

124567A3C

CORE-VALVE HYD

Core Return Number

1шт.

36

201-324

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

90°, 9/16"-18 x 9/16"-18, Adj, ORFS, Includes Ref. 37 & 38

1шт.

38

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

39

127995A1

HOSE

- pump signal to header lift valve, 29-1/8 inch (740 mm) long

1шт.

40

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

- 11/16-16 inch swivel face seal branch x face seal x face seal, Includes: Ref. 41

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

42

128328A1

FITTING

ADAPTER - special, includes orifice check valve, Includes: Ref. 43 and 44

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

44

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

45

124574A1

SUPPORT

BRACKET - priority valve mounting

1шт.

46

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

47

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

48

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

2шт.

32

128097A1

HOSE,19.05mm ID x 710mm L

- header lift valve return, 28 inch (710 mm) long

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
