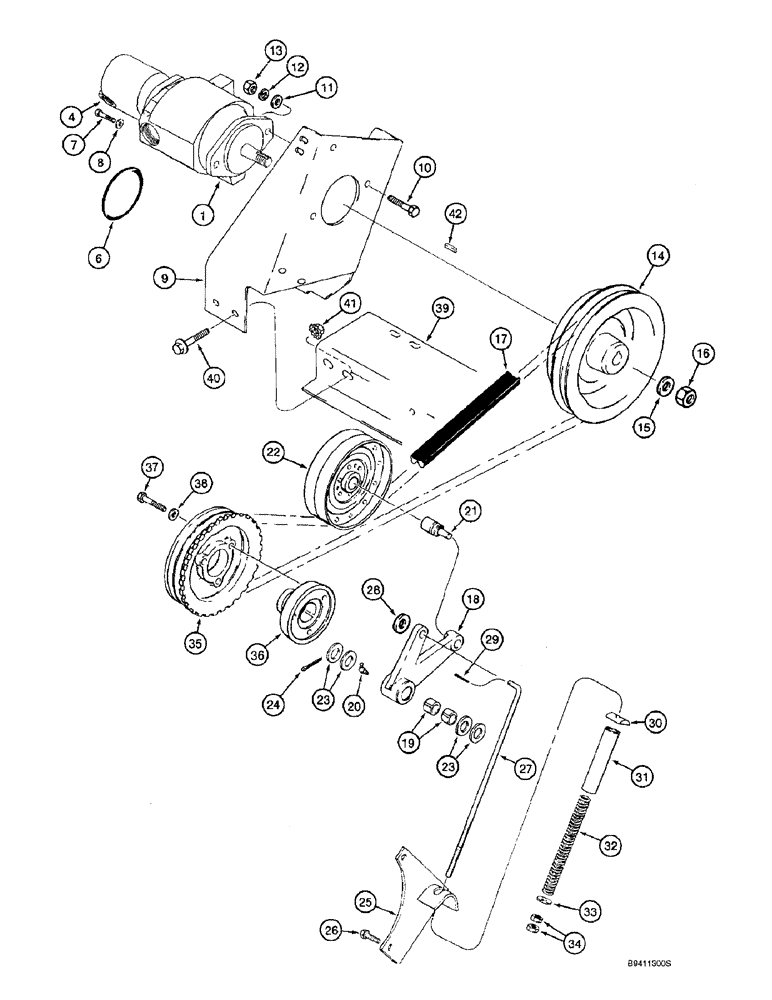

Запчасти Case IH 2144 (8-18) - AUXILIARY PUMP, DRIVE AND MOUNTING (07) - HYDRAULICS

123266A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary, tandem, no longer available, order pump assembly 123266A2

1шт.

123266A2

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary, tandem, Includes: Ref. 1 - 8

1шт.

1

187702A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - piston type, front, Includes: Ref. 2

1шт.

1

87338787R

REMAN-HYD PUMP

PUMP ASSEMBLY - piston type, front

1шт.

1

87338787C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

187731A1

SEAL KIT

KIT - seal repair, piston pump, not shown

1шт.

3

187732A1

EQUALIZER

COMPENSATOR - piston pump, not shown

1шт.

4

187703A1

PUMP, HYDRAULIC

PUMP ASSEMBLY - gear type, rear, pump assembly 123266A1 only, no onger available, order pump assembly 233428A1, item 5A below Includes: Ref. 5

1шт.

5

1272638C2

SEAL KIT

KIT - seal, not shown, pump assembly 123266A1 only

1шт.

5a

233428A1

PUMP, HYDRAULIC,25.2 CC

PUMP ASSEMBLY - gear type, rear, not shown, number stamped on part 26010-RZE, pump assembly 123266A2 only

1шт.

5b

233429A1

SEAL KIT

KIT - seal, not shown, pump assembly 123266A2 only

1шт.

6

238-6042

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

Used between pumps -042, 90 Duro, 3.239" ID x .070" Thk

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

8

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch, pump assembly 123266A1 only

2шт.

8

495-81265

WASHER,.391" x 5/8" x .065"

- flat, 25/64 x 5/8 x 1/16 inch, pump assembly 123266A2 only

2шт.

9

112452A1

SUPPORT

- auxiliary pump

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

11

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

123804A1

PULLEY

- drive, auxiliary pump

1шт.

15

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

1шт.

16

231-46112

LOCK NUT,3/4"-16, GB

NUT - hex, self-locking, 3/4 inch NF

1шт.

17

1541700C1

V-BELT,2490.62 mm L

Drive, Auxiliary Pump 2490.62 mm L

1шт.

18

1330517C1

LEVER

ASSEMBLY - auxiliary pump drive

1шт.

19

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

- lever

2шт.

20

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

21

274844R91

BEARING ASSY,30mm OD x 73.66mm L

- idler pulley

1шт.

22

192865C1

PULLEY

- idler, 8 inch OD

1шт.

23

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

24

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

25

194729C2

SUPPORT

- pump drive pivot

1шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

27

191823C1

ROD

- auxiliary drive jackshaft

1шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

29

432-1216

COTTER PIN,3/16" x 1"

1шт.

30

194652C1

PIVOT

- rod

1шт.

31

1989254C1

SPACER

- 6-1/2 inch (165 mm) long

1шт.

32

V368

SPRING

- drive rod

1шт.

33

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

35

1330488C1

PULLEY

- drive, auxiliary pump, 8.85 inch OD

1шт.

36

196482C2

HUB

- drive pulley

1шт.

37

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

3шт.

38

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

39

123837A1

SUPPORT

CHANNEL - support, jackshaft and auxiliary pump

1шт.

40

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex flange, 1/2 NC x 1-1/4 inch, grade 8

4шт.

41

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

4шт.

42

194022A1

KEY

KEY - pump shaft

1шт.
