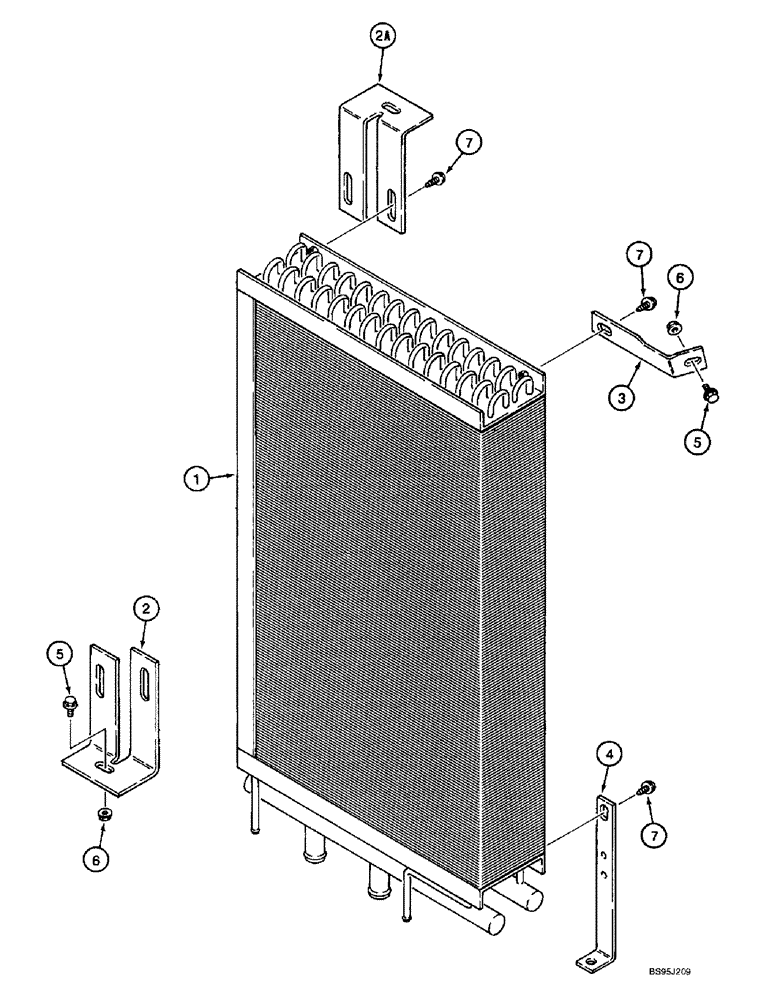

Запчасти Case IH 2144 (8-13A) - OIL COOLER AND MOUNTING, COMBINE P.I.N. JJC0173150 AND AFTER (07) - HYDRAULICS

1

195441A2

COOLER

- combination, fuel and oil

1шт.

2

197431A2

SUPPORT

- oil cooler, lower

1шт.

2a

197430A2

SUPPORT

- oil cooler, upper

1шт.

3

1541787C2

ANGLE

SUPPORT - oil cooler, upper, right-hand

1шт.

4

1324914C3

ANGLE

SUPPORT - oil cooler, lower, right-hand

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

7

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.
