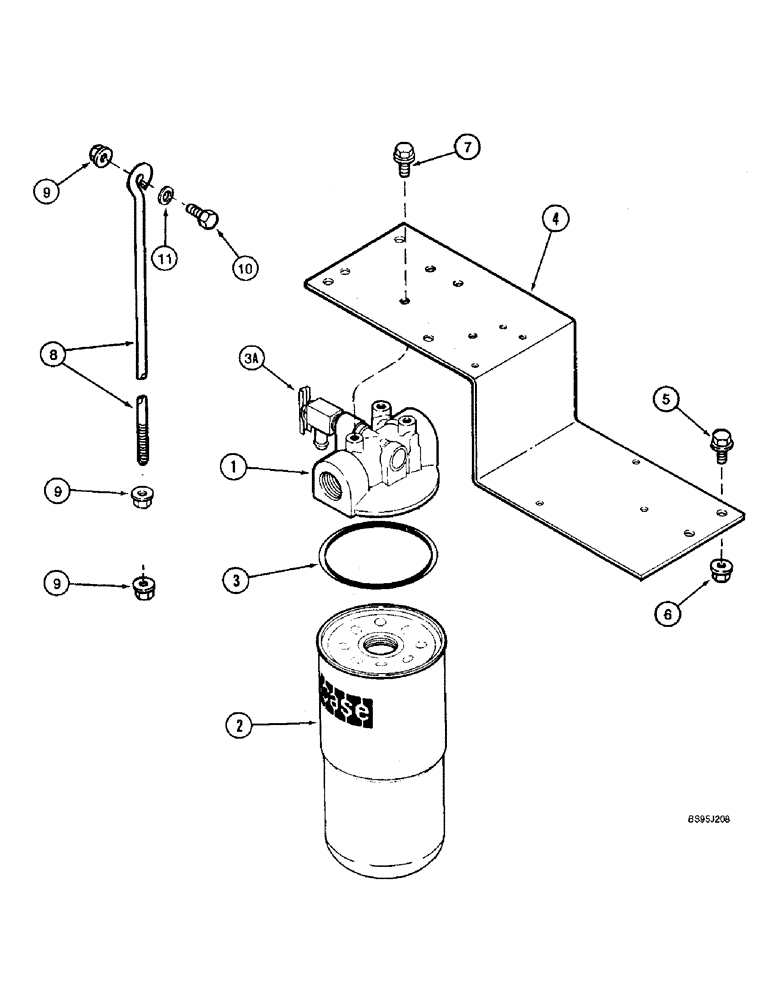

Запчасти Case IH 2144 (8-06) - HYDRAULIC RETURN FILTER (07) - HYDRAULICS

87784C92

HYDRAULIC OIL FILTER

FILTER ASSEMBLY - return, Includes: Ref. 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter, order filter assembly 87784C92

1шт.

2

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter, order kit 1329214C1

1шт.

Both elements must be changed at the same time.

1шт.

3

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter element, order kit 1329214C1

1шт.

3a

301803R1

SHUT-OFF VALVE

VALVE - shutoff, drain

1шт.

4

124802A2

SUPPORT

BRACKET - mounting, return filter

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Return filter mounting Hex Flg, 3/8"-16 x 1", Serr

2шт.

6

231-5146

FLANGE NUT,3/8"-16

Return filter mounting Flg, USR, 3/8"-16

2шт.

7

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

- hex serrated flange, 3/8 NC x 1/2 inch, return filter mounting

3шт.

8

1541545C2

STEM

ROD - filter bracket, return filter mounting

1шт.

9

231-5146

FLANGE NUT,3/8"-16

Return filter mounting Flg, USR, 3/8"-16

3шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Return filter mounting Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

11

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch, return filter mounting

1шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - filter element, includes two (2) elements, four (4) gaskets and instructions, return filter mounting

1шт.
