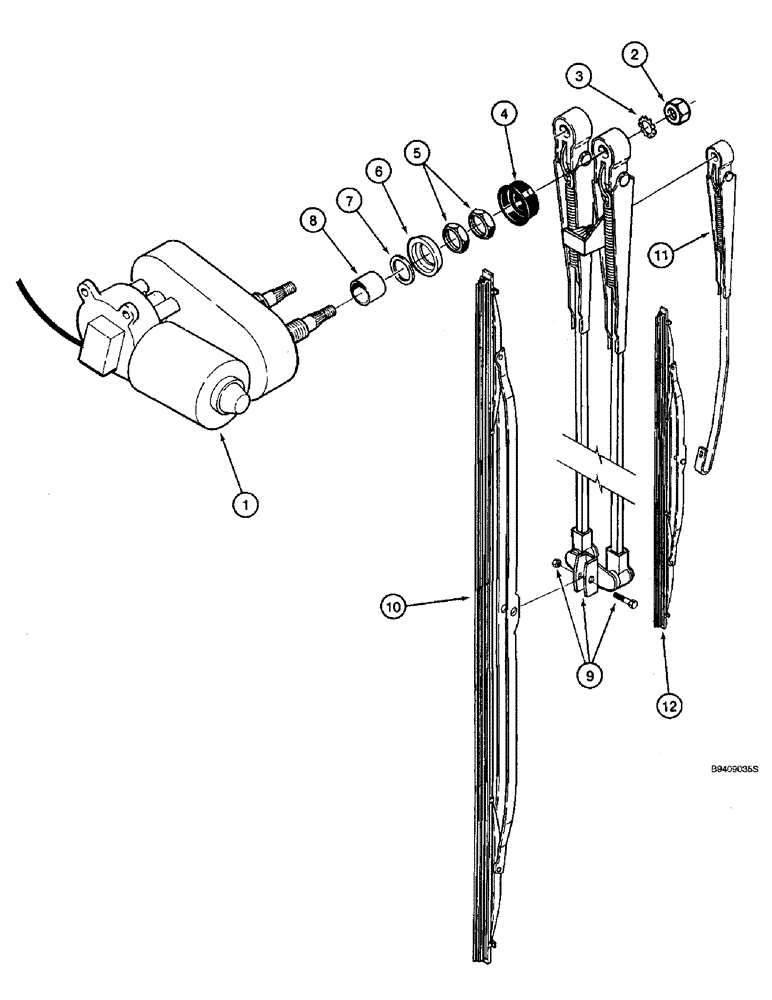

Запчасти Case IH 2144 (4-68) - WINDSHIELD WIPER ASSEMBLY, DOUBLE BLADE (06) - ELECTRICAL

137838A1

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper, double blade, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - wiper, order motor assembly 137838A1

1шт.

138013A1

REPAIR KIT

KIT - wiper motor, Includes: Ref. 2 - 7

1шт.

2

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

2шт.

4

NSS

NOT SOLD SEPARAT

COVER - dust, order kit 138013A1

2шт.

5

NSS

NOT SOLD SEPARAT

NUT - special, jam, order kit 138013A1

4шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - seal, order kit 138013A1

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rubber, order kit 138013A1

2шт.

8

123936A1

SPACER

- motor to mounting bracket

2шт.

9

123150A1

WIPER ARM

ARM - wiper, 1000 mm long

1шт.

10

123151A1

WIPER BLADE

BLADE - wiper, 1000 mm long

1шт.

11

231284A1

WIPER ARM

ARM - wiper, 176 mm long (Replaces arm 123152A1)

1шт.

12

231283A1

WIPER BLADE

BLADE - wiper, 330 mm long (Replaces blade 123153A1)

1шт.
