Запчасти Case IH 2144 (4-52) - BATTERY AND BATTERY CABLES (06) - ELECTRICAL

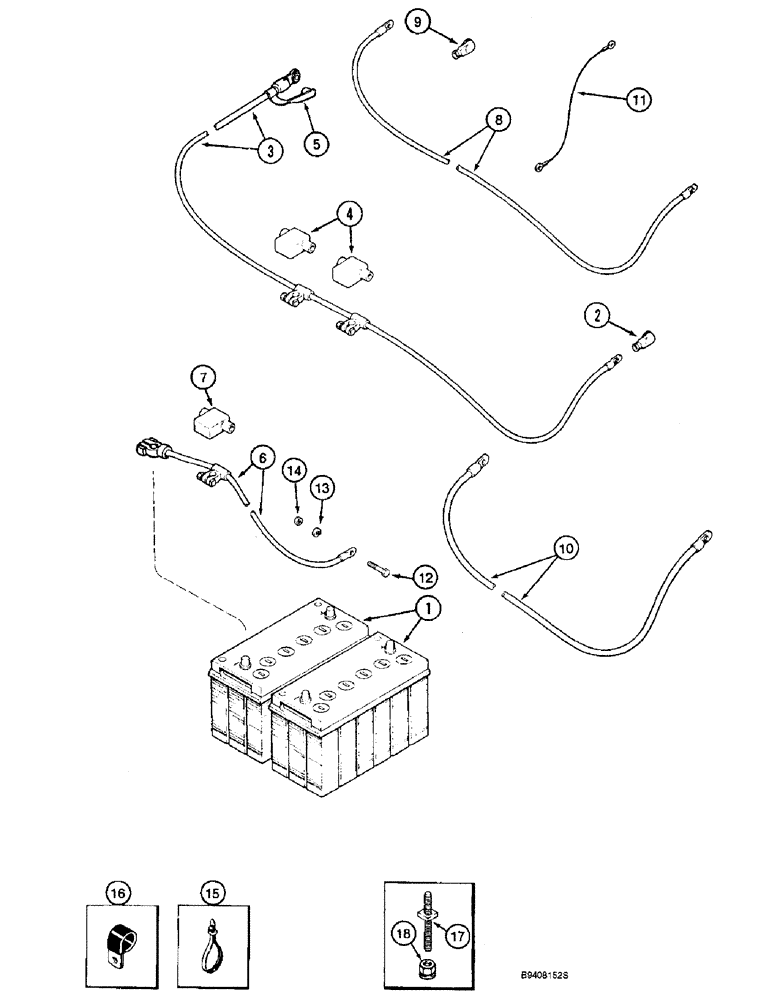

Схема запчастей Case IH 2144 - (4-52) - BATTERY AND BATTERY CABLES (06) - ELECTRICAL
13
4
12
17
14
18
9
11
15
3
2
1
5
6
8
10
16
7

Артикул

Название

Примечание

Количество

1

BMF31E

DRY BATTERY

BATTERY - dry, 12 volt

2шт.

2

S115407

BOOT

- rubber, battery cable

1шт.

3

185267A1

CABLE

ASSEMBLY - battery, positive, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

BOOT - battery cable

2шт.

5

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

6

125843A2

CABLE

ASSEMBLY - battery, ground, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

BOOT - battery cable

1шт.

8

128738A3

CABLE

- cab power

1шт.

9

NSS

NOT SOLD SEPARAT

BOOT - cable

1шт.

10

128742A2

NEG BATTERY CABLE

CABLE, BATTERY (NEG.), Ground, Engine

1шт.

11

128739A1

CABLE

- ground

2шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

702093C1

CABLE TIE

STRAP - tie

2шт.

16

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

5шт.

17

128289A1

BOLT,5/16" - 18 x 2 3/16"

BOLT - battery cable, special

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

Выбрано товаров: 18
