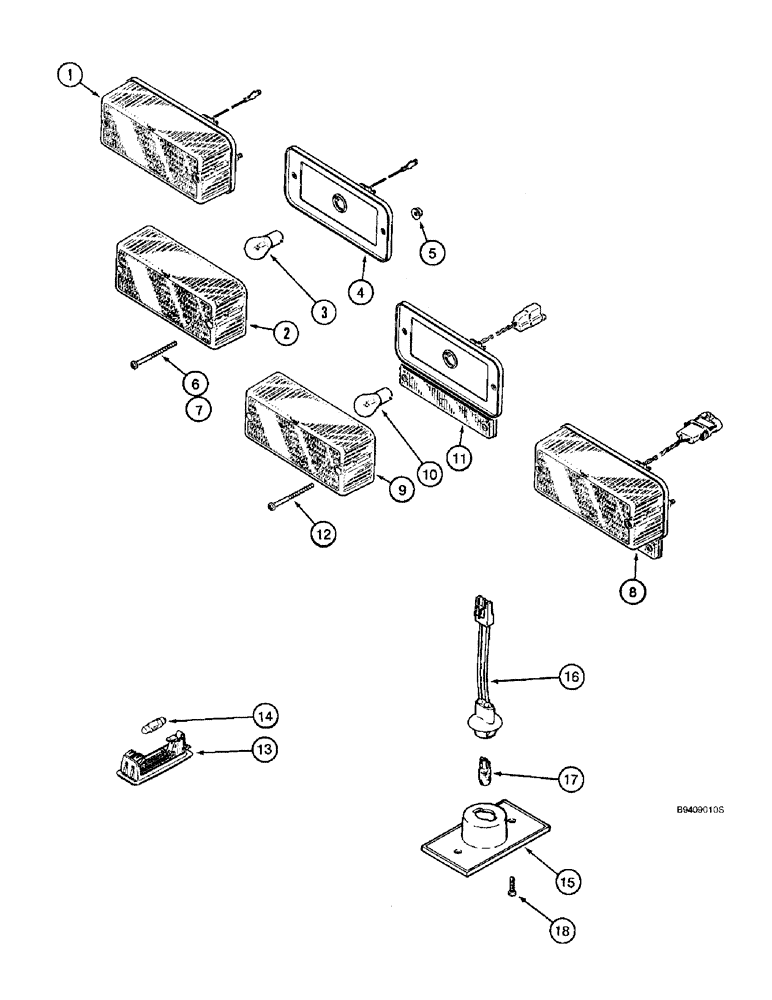

Запчасти Case IH 2144 (4-48) - LAMP ASSEMBLIES, WARNING LAMP, STOP AND TAIL LAMP, DOME LAMP AND CONSOLE LAMP (06) - ELECTRICAL

1

130882C91

LAMP

LAMP ASSEMBLY - warning, Includes: Ref. 2 - 4

4шт.

2

130883C1

LENS

- amber

1шт.

3

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - back, order lamp assembly 130882C91

1шт.

5

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

6

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 2-1/4 inch

4шт.

7

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

- machine, pan Phillips, No. 10 NC x 2-1/4 inch

4шт.

8

92260C1

LAMP,12V, 27W, Red

ASSEMBLY - stop and tail, Includes: Ref. 9 - 11

2шт.

9

216045C1

LENS

- red, stop and tail lamp assembly

1шт.

10

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, stop and tail lamp assembly

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - back, order lamp assembly 92260C1, stop and tail lamp assembly

1шт.

12

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 2-1/4 inch, stop and tail lamp assembly

4шт.

13

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, Includes: Ref. 14

2шт.

14

E35556

BULB,12V, 10W

Dome Lamp Assy 12V, 10W

1шт.

83882C91

LAMP

ASSEMBLY - console illumination, console lamp assembly, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

LENS - console lamp, order lamp assembly 83882C91, console lamp assembly

1шт.

16

107329C1

WIRE HARNESS

SOCKET AND CABLE - bulb, console lamp assembly

1шт.

17

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, console lamp assembly

1шт.

18

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, , Console lamp assembly Cross Pan Hd, M4.8 x 19, Coated

2шт.
