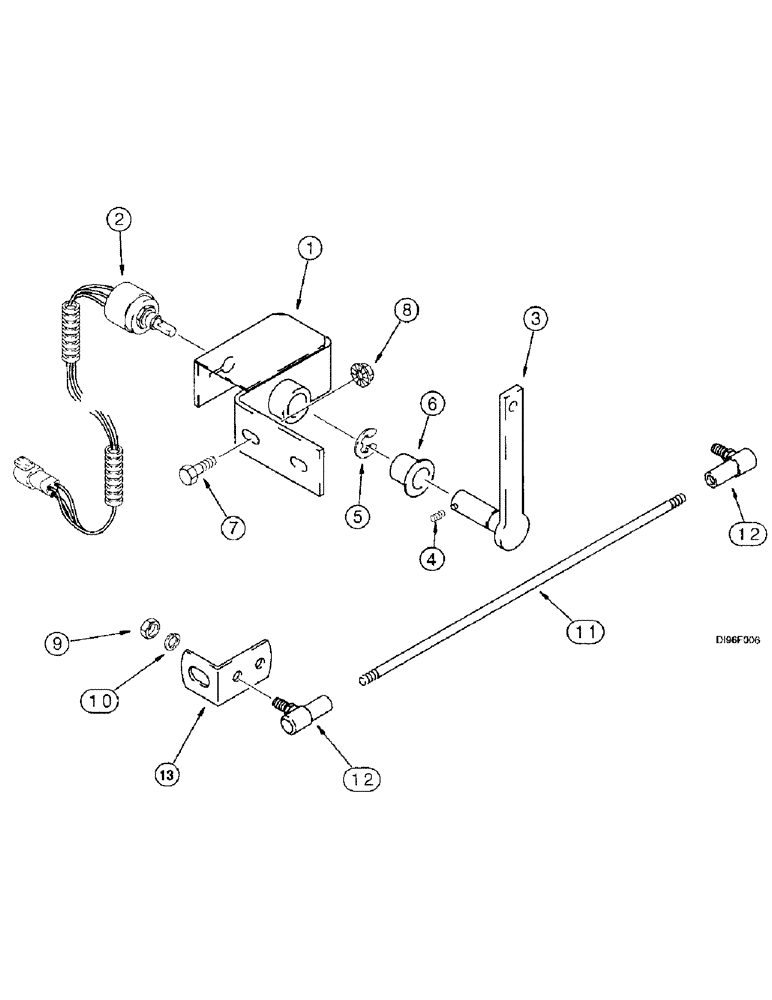

Запчасти Case IH 2144 (4-38) - FEEDER POSITION COMBINATION MOUNTING (06) - ELECTRICAL

226071A2

POTENTIOMETER

Assembly, Yield Monitor, Right-Hand, Includes: Ref. 1 - 5

1шт.

143220A3

POTENTIOMETER

Return-to-Cut, Left-Hand, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SUPPORT - potentiometer, order potentiometer assembly

1шт.

2

122756A3

POTENTIOMETER,1000 Ohm, 8V

Single, 1K, Feeder Position 1000 Ohm, 8V

1шт.

3

143225A3

LEVER

ASSEMBLY - potentiometer, Includes: Ref. 4

1шт.

4

878-1046

SET SCREW,Hex Skt, M4 x 6mm, Cup Pt

Hex Socket, 4 - 0.7 x 6 mm, Cup Point, Potentiometer

1шт.

5

103-3350

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

6

A164914

BUSHING,12.72mm ID x 15.93mm OD x 15.75mm L

Potentiometer

1шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

9

425-114

NUT,1/4"-28, G5

4шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

127474A1

STUD

- special, 1/4 NF x 6-1/2 inch

1шт.

12

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, 1/4 inch NF

2шт.

13

127308A2

SUPPORT

BRACKET - rear, potentiometer

1шт.
