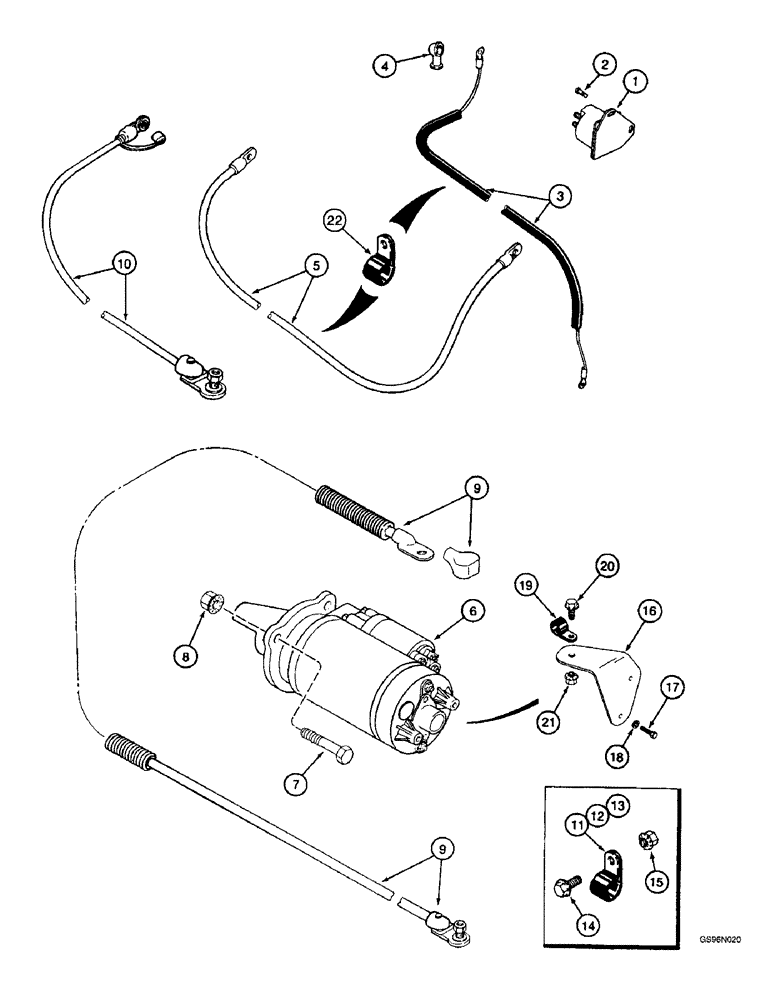

Запчасти Case IH 2144 (4-36) - FEEDER REVERSER HARNESS (06) - ELECTRICAL

1

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, parts list Figure 4-2

1шт.

2

261-1478

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

2шт.

3

128740A3

CABLE

ASSEMBLY - reverser relay, Serial Range: -JJC0172845

1шт.

3

231322A1

CABLE

ASSEMBLY - reverser relay, Includes: Ref. 4, Start Serial: JJC0172845

1шт.

4

399470R1

BOOT

- cable

1шт.

5

128741A2

CABLE

- feeder reverser "S" to JJC0172845

1шт.

5

231400A1

CABLE

- feeder reverser JJC0172845 to

1шт.

6

245927C92

STARTING MOTOR

MOTOR ASSEMBLY - feeder reverser, parts list Figure 4-64

1шт.

6

245927C93R

REMAN-STARTER

Reman for New PN 245927C92

1шт.

6

245927C93C

CORE-STARTER

Return Number

1шт.

7

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

3шт.

8

231-5146

FLANGE NUT,3/8"-16

3шт.

9

185265A1

CABLE

- feeder reverser motor to JJC0172845

1шт.

9

232263A1

CABLE

- feeder reverser motor JJC0172845 to

1шт.

10

185266A1

CABLE

- feeder reverser extension to JJC0172845

1шт.

10

185267A1

CABLE

- feeder reverser extension, includes two boots, Start Serial: JJC0172845

1шт.

11

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

P-type 1 1/4", Insul, 1/2" Bolt

2шт.

12

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

P-type, Replaces 1" ID clamp 515-24254 1 1/8", Insul, 3/8" Bolt

2шт.

13

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

, Serial Range: JJC0172845-JJC0172845

1шт.

14

409-7612

BOLT,3/8"-16 x 1.09" OAL

Clamp mounting Hex Flg, 3/8"-16 x 3/4", Serr

3шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4", Clamp mounting, used with item 13 clamp

2шт.

15

231-5146

FLANGE NUT,3/8"-16

Clamp mounting Flg, USR, 3/8"-16

3шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Clamp mounting, used with item 13 clamp, Serial Range: -JJC0172845

2шт.

Used on combines prior to P.I.N. JJC0172845 only

1шт.

16

231515A1

SUPPORT

BRACKET - mounting, feeder reverser motor, Serial Range: -JJC0172845

1шт.

Used on combines prior to P.I.N. JJC0172845 only.

1шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

, Serial Range: -JJC0172845

2шт.

Used on combines prior to P.I.N. JJC0172845 only.

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4", Serial Range: -JJC0172845

2шт.

Used on combines prior to P.I.N. JJC0172845 only.

1шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt, Serial Range: -JJC0172845

1шт.

Used on combines prior to P.I.N. JJC0172845 only.

1шт.

20

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch, Serial Range: -JJC0172845

1шт.

Used on combines prior to P.I.N. JJC0172845 only.

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Serial Range: -JJC0172845

1шт.

Used on combines prior to P.I.N. JJC0172845 only.

1шт.

22

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.
