Запчасти Case IH 2144 (4-34) - FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL

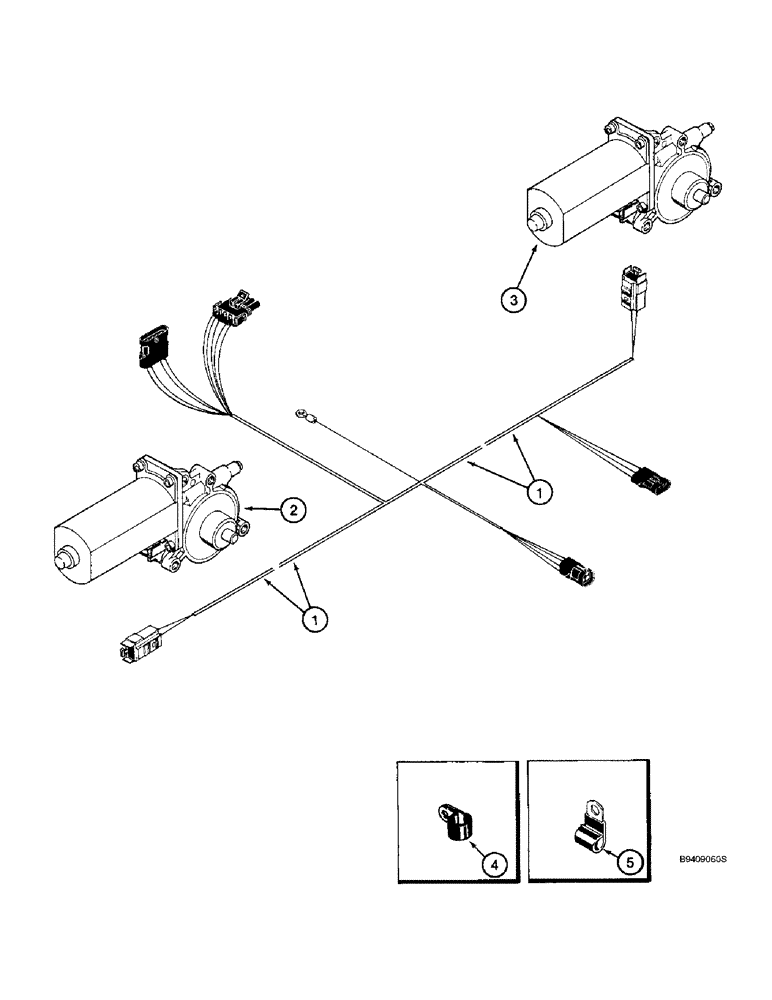

Схема запчастей Case IH 2144 - (4-34) - FAN AND ROTOR SPEED HARNESS (06) - ELECTRICAL
2
1
5
3
1
4

Артикул

Название

Примечание

Количество

1

184397A1

HARNESS

- fan and rotor speed

1шт.

2

111787A2

MOTOR, ELECTRIC

MOTOR - electric, rotor speed

1шт.

2

111787A2R

REMAN-ELECTRIC MOTOR

MOTOR - electric, rotor speed

1шт.

2

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

3

111787A2

MOTOR, ELECTRIC

MOTOR - electric, fan speed

1шт.

3

111787A2R

REMAN-ELECTRIC MOTOR

MOTOR - electric, fan speed

1шт.

3

111787A2C

CORE-ELECTRIC MOTOR

Return Number

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

2шт.

5

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Retaining (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

8шт.

6

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Clamp Mounting, Not Shown Hex Flg, M8 x 25, 8.8

5шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, Clamp mounting, not shown

5шт.

Выбрано товаров: 11
