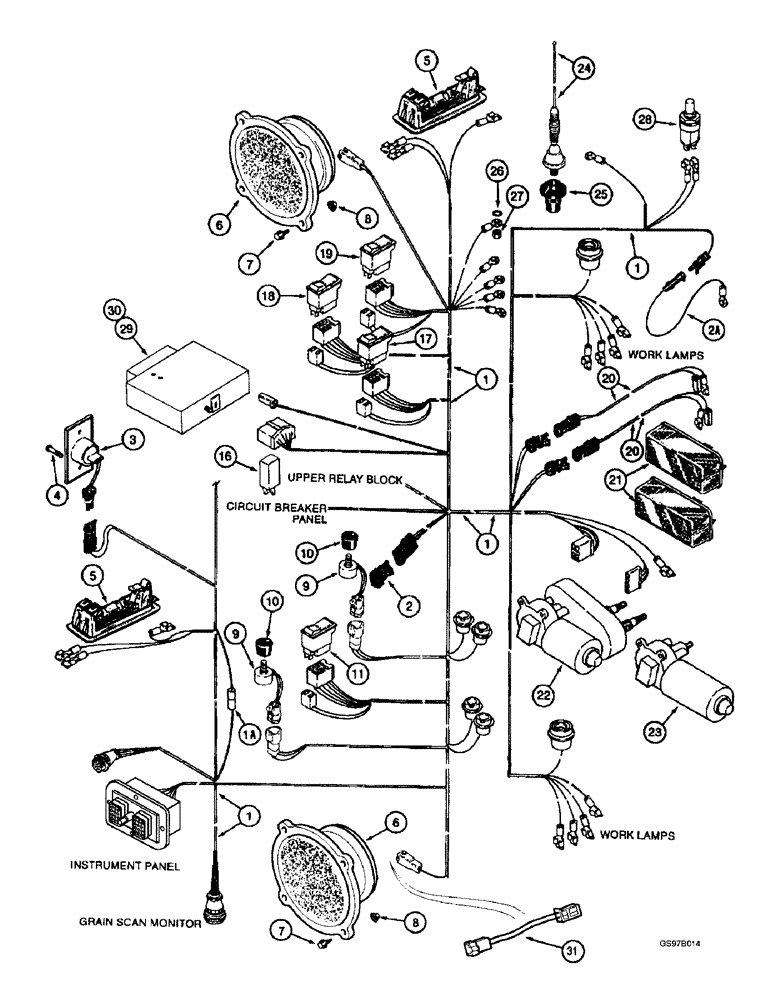

Запчасти Case IH 2144 (4-21A) - CAB HARNESS, OVERHEAD, COMBINE P.I.N. JJC0172845 AND AFTER (06) - ELECTRICAL

1

184513A4

HARNESS

ASSEMBLY - cab, includes items 1A - 2A on this figure, items 2 and 3 on figure 4-21C and items 1A and 1B on figure 4-21E, combine P.I.N. JJC0172845 - JJC0173149

1шт.

1

243186A2

HARNESS

ASSEMBLY - cab, includes items 1A - 2A on this figure, items 2 and 3 on figure 4-21E and items 1A and 1B on figure 4-21E, combine P.I.N. JJC0173150 and after

1шт.

1a

113699A1

RECTIFIER

- locking, 2-5/8 inch long

1шт.

2

A187874

MODULE

MODULE - diode

1шт.

2a

196133A1

HARNESS

WIRE - ground, radio antenna

1шт.

3

83882C91

LAMP

ASSEMBLY - console illumination, parts list figure 4-48

1шт.

4

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

- machine, pan Phillips, No. 8 NC x 3/4 inch

2шт.

5

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, parts list figure 4-48

2шт.

6

182721A1

SPEAKER

- radio, 5-1/4 inch, round (Replaces speaker 141924A1)

2шт.

7

281-53516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self-tapping, hex washer head, No. 10 NC x 1 inch

8шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

9

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Air Conditioning Fan Speed and Temperature 2500 Ohm, 500V

2шт.

10

1977521C1

BUTTON

KNOB - includes screw, potentiometer

2шт.

11

124535A1

SWITCH

- rocker, air conditioning

1шт.

12

26069R1

BULB

- lamp, No. 192, not shown

4шт.

13

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

CIRCUIT BREAKER, , Not shown 10 Amp, Mini

1шт.

14

139719A1

CIRCUIT BREAKER,15 Amp, Mini

Not shown 15 Amp, Mini

2шт.

15

139720A1

CIRCUIT-BREAKER,20 Amp, Mini

CIRCUIT BREAKER, , Not shown 20 Amp, Mini

3шт.

16

105849A1

RELAY

- continuous duty, 20 amp

5шт.

17

141488A1

WINDSHIELD WIPER SWI

SWITCH - rocker, wiper, standard

1шт.

17

176854A1

WINDSHIELD WIPER SWI

SWITCH - rocker, wiper, deluxe

1шт.

18

124095A1

LIGHT SWITCH

SWITCH - rocker, lamp

1шт.

19

124094A1

SWITCH

- rocker, hazard lamp

1шт.

20

143062A1

WIRE HARNESS

HARNESS - cab warning lamp

2шт.

21

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list figure 4-48

2шт.

22

137838A1

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper, double blade, parts list Figure 4-68

1шт.

23

137608A1

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper, single blade, includes mounting bracket, parts list Figure 4-66

1шт.

24

97080C1

ANTENNA

ASSEMBLY - radio, includes base, mast, cable, and hardware

1шт.

25

R54547

GROMMET

- 1-1/32 inch (26 mm) hole size

1шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

28

1983341C1

SWITCH

- door jam

1шт.

29

ZAE1000

RADIO

- AM/FM/WB, order from ship direct (Replaces radio 141950A1)

1шт.

30

ZAE3000

RADIO

- AM/FM/WB with cassette player, order from ship direct (Replaces radio 141951A1)

1шт.

31

195551A1

HARNESS

- adapter, speakers to headliner harness to P.I.N. JJC0173150

2шт.
