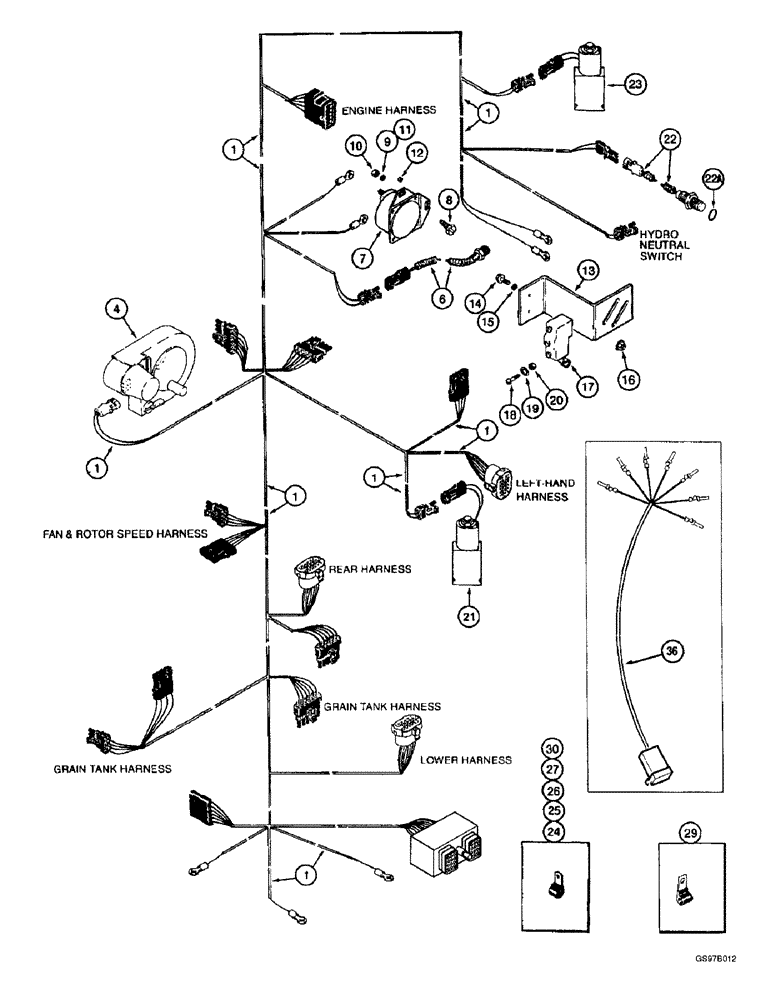

Запчасти Case IH 2144 (4-06) - CENTER HARNESS (06) - ELECTRICAL

1

184529A1

HARNESS

ASSEMBLY - center, no longer available, order harness 184529A3 to JJC0172845

1шт.

1

184529A3

HARNESS

- center, models with combine P.I.N. JJC0172845 - JC0173149, does not include items 2 and 3, Serial Range: JJC01728445-JJC0173149

1шт.

1

243189A2

HARNESS

ASSEMBLY - center, Includes: Ref. 2 and 3, Start Serial: JJC0173150

1шт.

2

187308A1

CAP

- splice connector, not shown

3шт.

3

187309A1

BAR

- buss, 6 terminal, not shown, cut as needed

3шт.

4

127813A1

LAMP

ASSEMBLY - service, reel, Includes: Ref. 5

1шт.

5

P40556

BULB,12V, 10W

- lamp, 12 volt, not shown

1шт.

6

122428A1

SWITCH

- hydraulic oil level

1шт.

7

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, parts list Figure 4-2

1шт.

8

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

12

225-14210

NUT,#10-32

1шт.

13

141944A1

SUPPORT

BRACKET - mounting, unloader switch

1шт.

14

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

141655A1

SWITCH

- limit, unloader in

1шт.

18

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch

2шт.

19

138526

LOCK WASHER

- internal tooth lock, special, No. 6

2шт.

20

225-14106

NUT,#6-32

2шт.

21

131152A1

CONTROL VALVE

VALVE ASSEMBLY - unloader clutch, parts list figure 8-50

1шт.

22

177678A1

TEMPERATURE SWITCH

ASSEMBLY - hydraulic oil temperature, Includes: Ref. 22A

1шт.

22a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

131152A1

CONTROL VALVE

VALVE ASSEMBLY - separator clutch, parts list Figure 8-5

1шт.

24

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

2шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

5шт.

26

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

P-type 1 1/4", Insul, 7/16" Bolt

3шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

2шт.

29

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Retaining, Center to front harness (Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt

4шт.

30

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

31

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

Hardware, Ref. 31 - 34, is clamp mounting hardware and is not shown in the illustration. Use as required.

1шт.

32

9804279

FLANGE NUT,Hex, M12, Cl 8

- hex flange, 12 mm - 1.75

1шт.

Hardware, Ref. 31 - 34, is clamp mounting hardware and is not shown in the illustration. Use as required.

1шт.

33

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

9шт.

Hardware, Ref. 31 - 34, is clamp mounting hardware and is not shown in the illustration. Use as required.

1шт.

34

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

14шт.

Hardware, Ref. 31 - 34, is clamp mounting hardware and is not shown in the illustration. Use as required.

1шт.

35

197514A1

SENSOR

SWITCH - neutral start, ball type, included in hydrostatic pump control valve, not shown, see Figure 6-20, item 20

1шт.

36

220024A1

HARNESS

- grain scan, center to P.I.N. JJC0173150

1шт.

102251A1

CLIP

- battery cable, used with harness 243189A2

1шт.

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

Used with clip 102251A1 Flg, USR, 1/4"-20

1шт.

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

Used with clip 102251A1 Hex Flg, 1/4"-20 x 1/2", Serr

1шт.
