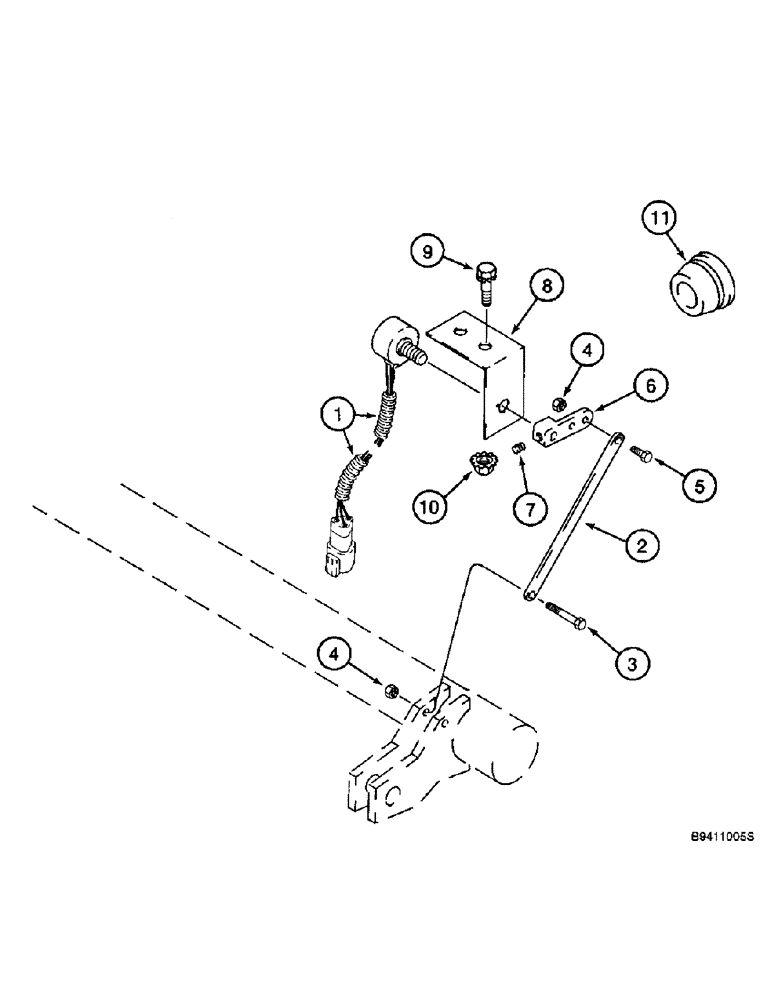

Запчасти Case IH 2144 (4-04) - CONCAVE POSITION POTENTIOMETER MOUNTING (06) - ELECTRICAL

1

122756A3

POTENTIOMETER,1000 Ohm, 8V

Single, 1K, Concave Position 1000 Ohm, 8V

1шт.

2

181760A2

LEVER

- concave sensor potentiometer

1шт.

3

463-11024

SCREW,Hex Hd, #10-24 x 1 1/2"

- machine, hex head, No. 10 NC x 1-1/2 inch

1шт.

4

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 NC

2шт.

5

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

- machine, hex head, No. 10 NC x 5/8 inch

1шт.

6

131175A1

ARM

- potentiometer control

1шт.

7

483-1084

SET SCREW,Hex Soc, #8-32 x 1/4"

SCREW - set, hex socket headless, No. 8 NC x 1/4 inch, cup point

1шт.

8

142401A1

SUPPORT

BRACKET - concave control

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

11

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 1/2 inch ID

1шт.
