Запчасти Case IH 2144 (5-48) - STEERING PRIORITY VALVE ASSEMBLY, 114851A2 (04) - STEERING

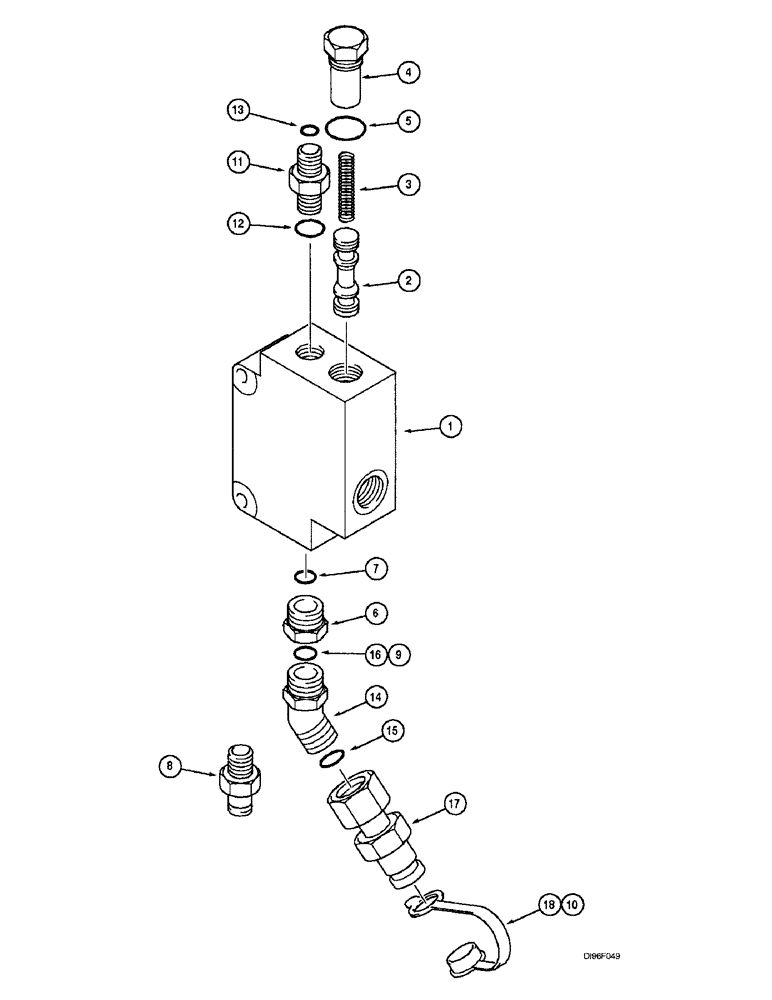

Схема запчастей Case IH 2144 - (5-48) - STEERING PRIORITY VALVE ASSEMBLY, 114851A2 (04) - STEERING
17
12
6
13
9
16
4
2
11
5
8
7
3
1
10
14
15
18

Артикул

Название

Примечание

Количество

114851A2

VALVE

ASSEMBLY - priority, steering, Includes: Ref. 1 - 10D

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 114851A2

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - priority valve, order valve assembly 114851A2

1шт.

3

192146A1

SPRING

- spool return

1шт.

4

192145A1

PLUG

- spool spring guide, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

192149A1

FITTING

ADAPTER - reducer, special, Includes: Ref. 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1541849C1

COUPLING

ASSEMBLY - diagnostic, Includes: Ref. 9 and 10

1шт.

10

H434163

DUST CAP

CAP - dust

1шт.

230984A1

KIT

- spool screen and orifice, not shown, Includes: Ref. 10A - 10D

1шт.

10a

NSS

NOT SOLD SEPARAT

ORIFICE - spool, not shown, order kit 230984A1

1шт.

10b

NSS

NOT SOLD SEPARAT

ORIFICE - spool, not shown, order kit 230984A1

1шт.

10c

NSS

NOT SOLD SEPARAT

SCREEN - spool, not shown, order kit 230984A1

2шт.

10d

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown, order kit 230984A1

1шт.

11

128328A1

FITTING

ADAPTER - special, includes orifice check valve, Includes: Ref. 12 and 13

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

45º, 9/16-18 face seal x adjustable O-ring boss, Incl Ref 15 & 16

1шт.

15

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

17

190117A1

COUPLING

COUPLER ASSEMBLY - diagnostic, Includes: Ref. 18

1шт.

18

H434163

DUST CAP

CAP - dust

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 24
