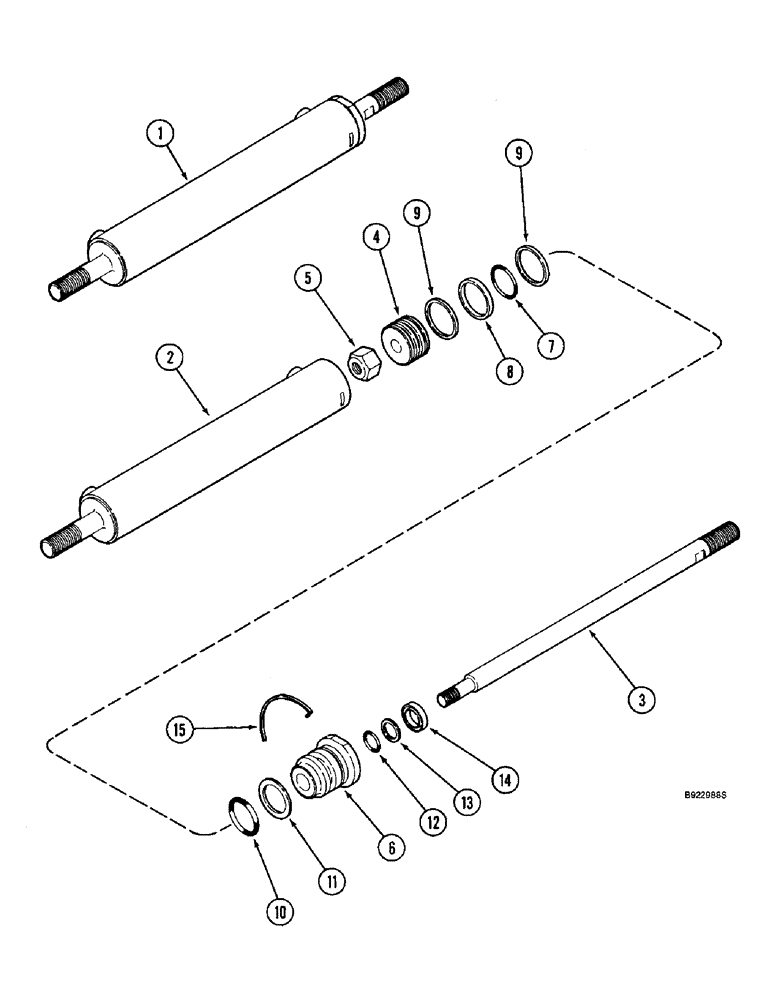

Запчасти Case IH 2144 (5-38) - STEERING CYLINDER, WITHOUT POWER GUIDE AXLE (04) - STEERING

1

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSEMBLY - 2 (51) ID x 9 inch (229 mm) stroke, Includes: Ref. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 548247R91

1шт.

3

548251R1

ROD

- piston

1шт.

4

548252R1

PISTON

- cylinder

1шт.

5

232-4609

LOCK NUT,9/16"-18, GC

NUT, LOCK, (Replaces nut 27293R1) 9/16"-18, GC

1шт.

6

548354R1

HEAD

GLAND - cylinder

1шт.

548357R91

SEAL KIT

- seal, Includes: Ref. 7 - 15

1шт.

7

238-5129

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING - piston bearing

2шт.

10

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, head

1шт.

12

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup, piston

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - wiper, piston rod

1шт.

15

NSS

NOT SOLD SEPARAT

RING - retaining wire

1шт.
