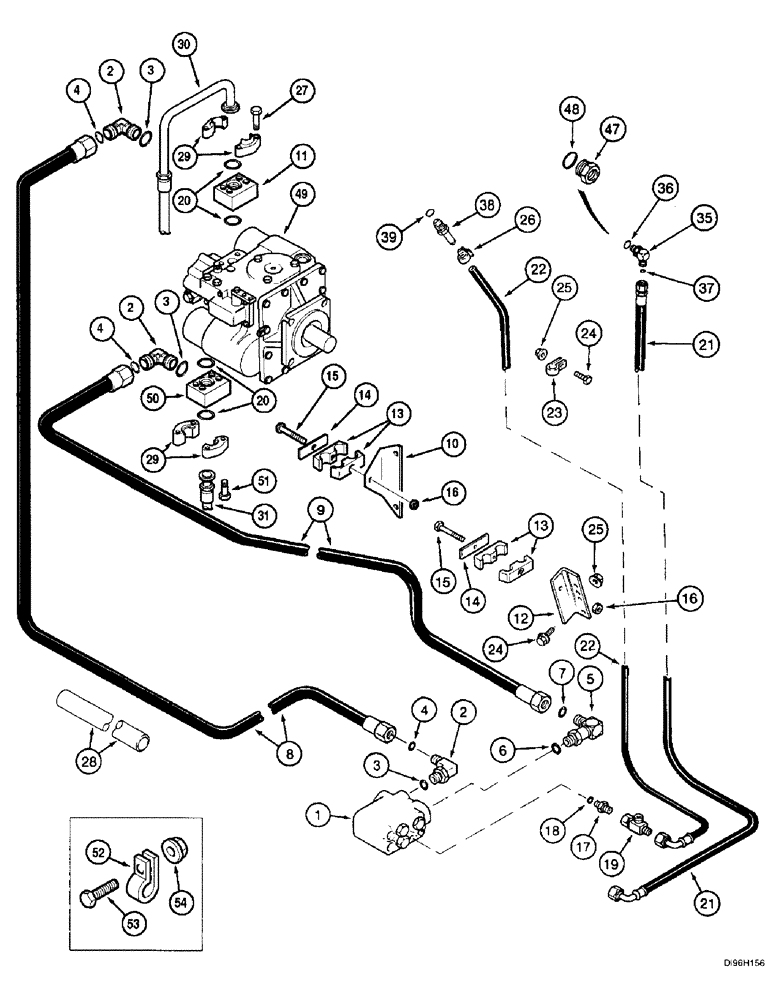

Запчасти Case IH 2144 (5-29A) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, S/N JJC0173150 AND AFTER (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
1978000C1
VALVE
ASSEMBLY - selector, corn and grain, parts list Figure 5 - 42
1шт.
2
201-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
- 90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 3 and 4
1шт.
3
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
4
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
5
201-365
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
- 90º long, 1-3/16-12 face seal x 1-1/16-12 inch Adj O-ring boss, Incl Ref. 6 and 7
1шт.
6
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
7
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
8
227643A1
HOSE,19.05mm ID x 3050mm L
- 120-5/64 inch (3050 mm) long
1шт.
9
227642A1
HOSE,19.05mm ID x 2540mm L
- 100 inch (2540 mm) long
1шт.
10
235195A1
SUPPORT
BRACKET - upper hose clamp
1шт.
11
226646A1
BLOCK
- adapter manifold
1шт.
12
1324467C2
ANGLE
BRACKET - hose angle
1шт.
13
1324473C1
CLAMP
- hose
2шт.
14
1324469C1
PLATE
- clamp
2шт.
15
326-552
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8
5/16"-18 x 3 1/4", G8
2шт.
16
232-4115
LOCK NUT,5/16"-18, GC
NUT, LOCK, 5/16"-18, GC
2шт.
17
218-5351
HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring
ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 18
1шт.
18
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
19
218-845
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run
- 3/4-16 inch flare branch x flare x swivel
1шт.
20
238-6219
O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro
4шт.
21
240455A1
HOSE
- 131-1/2 inch (3340 mm) long
1шт.
22
240456A1
HOSE,12.7mm ID x 3560mm L
- 140-5/32 inch (3560 mm) long
1шт.
23
L50062
SHIN
CLAMP - P-type
1шт.
24
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
3шт.
25
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
3шт.
26
214-1412
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP, HOSE, #12, 0.69/1.25 Type F Worm
1шт.
27
413-756
BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5
- hex, 7/16 NC x 3-1/2 inch
4шт.
28
240575A1
HOSE PROTECTION
SLEEVE - nylon, 60 inch (1524 mm) long
2шт.
29
S97224
CLAMP
- split flange, 1 inch
4шт.
30
227641A2
HOSE
- reverse, pump to motor, 159-5/8 inch (4055 mm) long
1шт.
31
227640A1
HOSE,25.4mm ID x 3455mm L
- forward, pump to motor, 136 inch (3455 mm) long
1шт.
35
135485A1
ELBOW
- 90 degree, special, with orifice
1шт.
36
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
37
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
38
217-397
FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB
Adapter - straight, 1/2 stem end x 9/16-18 inch Adj O-ring boss, Incl Ref 39
1шт.
39
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
49
REF
INSTRUCTION
PUMP ASSEMBLY - see figure 6-16
1шт.
50
226646A1
BLOCK
- adapter manifold
1шт.
51
413-756
BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5
- hex, 7/16 NC x 3-1/2 inch
4шт.
52
515-23175
CLAMP,11/16", Insul, 3/8" Bolt
- P-type, 7/8 inch ID
1шт.
52
515-23238
CLAMP,15/16", Insul, 3/8" Bolt
P-type 15/16", Insul, 3/8" Bolt
1шт.
52
515-23333
CLAMP,1 5/16", Insul, 3/8" Bolt
P-type 1 5/16", Insul, 3/8" Bolt
2шт.
53
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
4шт.
54
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
4шт.
31
227640A1
HOSE,25.4mm ID x 3455mm L
- forward, pump to motor, 136 inch (3455 mm) long
1шт.
Выбрано товаров: 45
