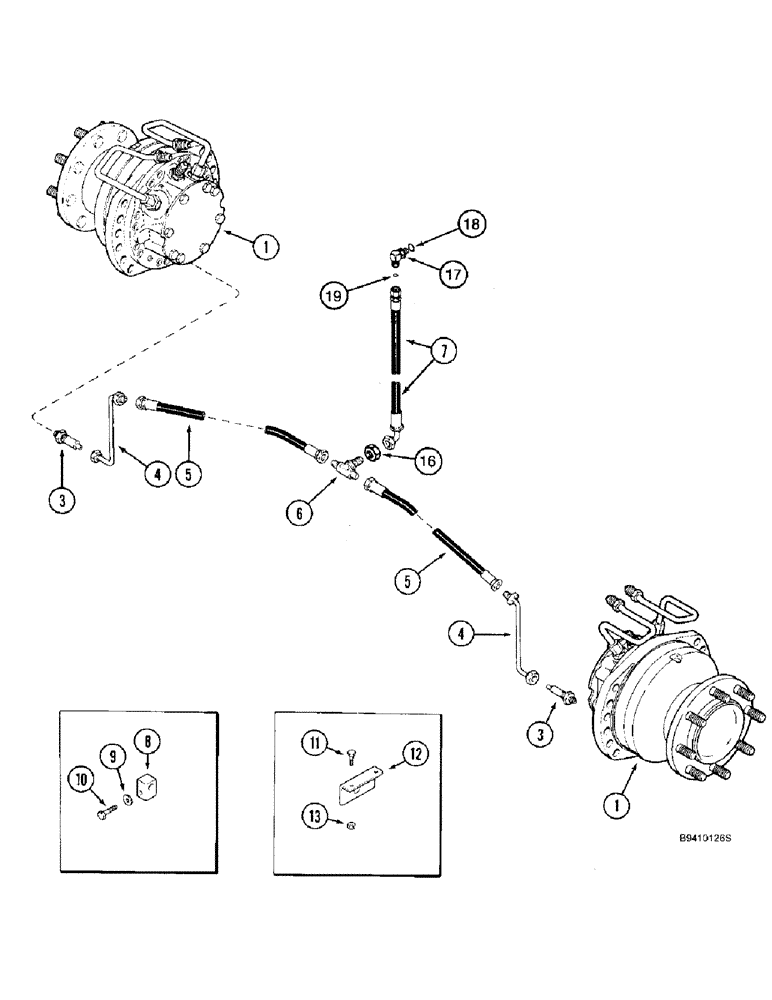

Запчасти Case IH 2144 (5-24) - WHEEL MOTOR FLUSH SYSTEM, POWER GUIDE AXLE (04) - STEERING

1

121436A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - drive, wheel, corn and grain, parts list Figure 5-44

2шт.

87300716R

REMAN-HYDROSTAT MOTO

2144 - CASE IH AXIAL-FLOW COMBINE - 1/95-12/97, Reman For New P/N's 121436A1 & 87300716

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

Motors do not include pressure tubes as shown in the illustration. See Figure 5-32 for pressure tubes.

1шт.

3

121434A1

ADAPTER

- flush port, English thread

2шт.

4

1346971C1

TUBE

- motor flush

2шт.

5

121435A1

HOSE

- 58 inch (1473 mm) long

2шт.

6

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare

1шт.

7

129187A1

FLEXIBLE HOSE

HOSE - 135-7/8 inch (3450 mm) long

1шт.

8

1347182C1

CLAMP

- flush tube

2шт.

9

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 40 mm

2шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

12

1347068C1

SUPPORT

BRACKET - support

1шт.

13

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

17

135485A1

ELBOW

- 90 degree, special, with orifice

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
