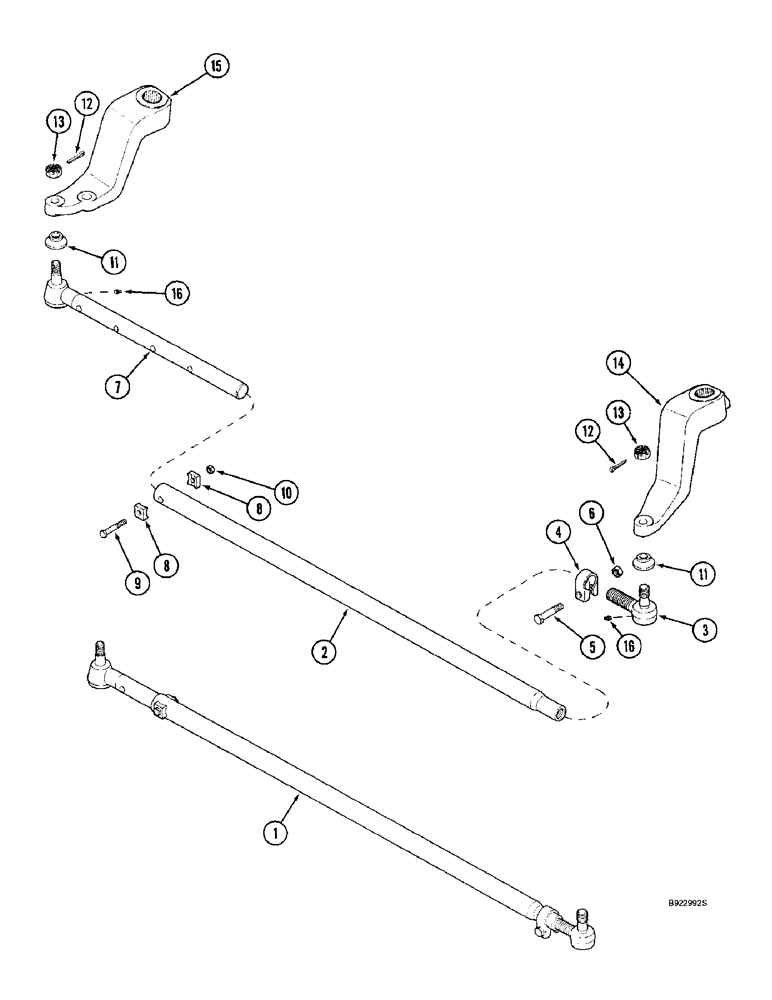

Запчасти Case IH 2144 (5-16) - STEERING TIE ROD, ADJUSTABLE AXLE, WITHOUT POWER GUIDE AXLE (04) - STEERING

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, order components separately, Includes: Ref. 2 - 10

1шт.

2

1300170C1

TUBE

- tie rod

1шт.

2

185174C1

TUBE

- tie rod

1шт.

3

1302687C1

JOINT

END - tie rod, right-hand

1шт.

3

179228C1

END ASSY.

END - tie rod, right-hand

1шт.

4

225265R1

CLAMP

- tube

1шт.

5

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

6

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

7

1302686C1

JOINT

END - tie rod

1шт.

7

193371C1

END ASSY.

END - tie rod

1шт.

8

A43369

CLAMP

- adjusting

1шт.

9

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

1шт.

11

A41424

SEAL

- end (Replaces seal 382562R1)

2шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

13

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

2шт.

14

193912C3

STEERING ARM

steering R.H.

1шт.

15

193911C4

ARM

steering L.H.

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, if used

2шт.

10

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

1шт.
