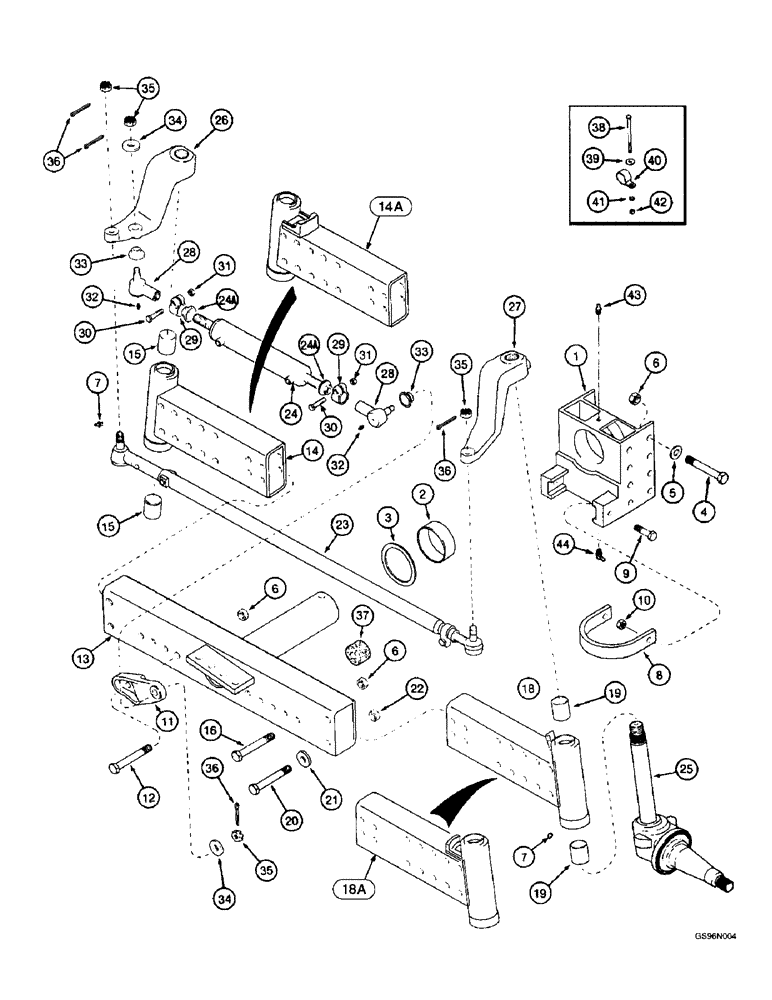

Запчасти Case IH 2144 (5-12) - STEERING AXLE, ADJUSTABLE, WITHOUT POWER GUIDE AXLE (04) - STEERING

1

177749C92

SUPPORT ASSY.

SUPPORT - axle pivot

1шт.

All except 92 to 120 inch axle.

1шт.

1

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 2

1шт.

On 92 to 120 inch axle.

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot support

1шт.

3

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

1шт.

4

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

All except 92 to 120 inch axle.

1шт.

4

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

1шт.

On 92 to 120 inch axle.

1шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

1шт.

7

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

2шт.

8

196084C2

CHANNEL

STRAP - tow, 178 mm wide, no drop

1шт.

All except 92 to 120 inch axle.

1шт.

8

1302625C1

CHANNEL

STRAP - tow, 249 mm wide, 13 mm drop

1шт.

On 92 to 120 inch axle.

1шт.

8

1979114C1

STRAP

- tow, 249 mm wide, 51 mm drop

1шт.

On 92 to 120 inch axle.

1шт.

9

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

9

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

10

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

2шт.

11

193917C1

ANCHOR

- steering cylinder

1шт.

All except 92 to 120 inch axle.

1шт.

11

182782C1

ANCHOR

- steering cylinder

1шт.

On 92 to 120 inch axle.

1шт.

12

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

1шт.

All except 92 to 120 inch axle.

1шт.

12

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4 NC x 5-1/2 inch

1шт.

On 92 to 120 inch axle.

1шт.

13

182799C2

AXLE

- adjustable, 67 to 91 inch, grain

1шт.

13

1302520C2

AXLE

- adjustable, 67 to 91 inch, corn

1шт.

13

242643A2

AXLE

- adjustable, 92 - 120 inch, grain (Replaces axle 186317C3)

1шт.

13

1302522C3

CENTER AXLE

AXLE - adjustable, 92 to 120 inch, corn

1шт.

13

243747A2

AXLE

- adjustable, 92 to 120 inch, Australia only

1шт.

14

177763C91

EXTENSION ASSY.

EXTENSION ASSEMBLY - axle, left-hand, 67 to 91 inch axle

1шт.

14

183454C91

EXTENSION

ASSEMBLY - axle, left-hand, 92 to 120 inch axle, no longer available, order extension 183454C92, item 14A

1шт.

14a

183454C92

AXLE

EXTENSION ASSEMBLY - axle, left-hand, 92 to 120 inch axle, Includes: Ref. 15

1шт.

15

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- axle extension

2шт.

16

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

1шт.

18

177764C91

EXTENSION ASSY.

EXTENSION ASSEMBLY - axle, right-hand, 67 to 91 inch axle

1шт.

18

183455C91

EXTENSION

ASSEMBLY - axle, right-hand, 92 to 120 inch axle, no longer available, order extension 183455C92, item 18A

1шт.

18a

183455C92

AXLE

EXTENSION ASSEMBLY - axle, right-hand, 92 to 120 inch axle, Includes: Ref. 19

1шт.

19

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- axle extension

2шт.

20

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

1шт.

20

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

1шт.

21

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

1шт.

22

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

1шт.

23

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, parts list figure 5-16

1шт.

24

548247R91

CYLINDER ASSY.,Double Acting, 22.35mm Rod, 228.6mm Stroke

CYLINDER ASSEMBLY - 2 (51) ID x 9 inch (229 mm) stroke, parts list Figure 5-38

1шт.

24a

A41424

SEAL

- end, cylinder (Replaces seal 382562R1)

2шт.

25

1315374C1

STEERING KNUCKLE

KNUCKLE - steering

1шт.

26

193911C4

ARM

- steering

1шт.

27

193912C3

STEERING ARM

- steering

1шт.

28

186796C1

BALL JOINT

SOCKET ASSEMBLY - cylinder end, Includes: Ref. 29 - 32

2шт.

29

384371R1

CLAMP

- cylinder end socket

1шт.

30

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

31

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

33

A41424

SEAL

- end (Replaces seal 382562R1)

2шт.

34

95-81019

WASHER,18.26mm ID x 38.1mm OD x 3.4mm Thk

- flat, 23/32 x 1-1/2 x 7/64 inch

2шт.

35

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

4шт.

36

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.

37

167955C2

SEAL

GROMMET - rubber

1шт.

38

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

1шт.

39

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

40

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

43

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

44

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.
