Запчасти Case IH 2144 (5-08) - STEERING HAND PUMP (04) - STEERING

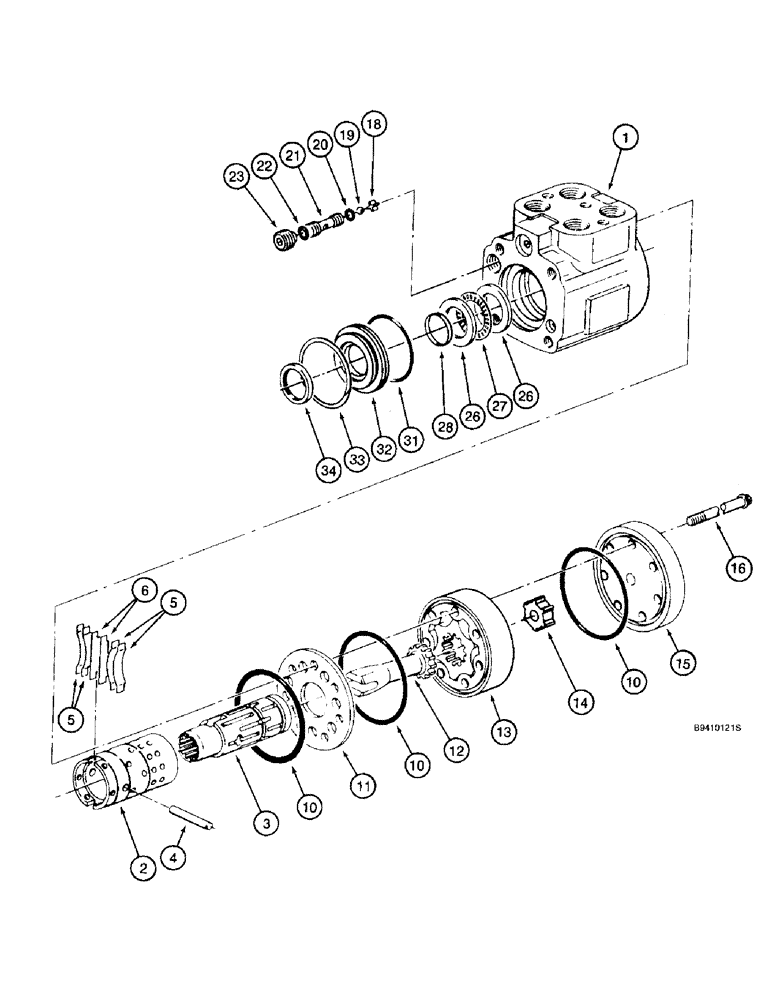

Схема запчастей Case IH 2144 - (5-08) - STEERING HAND PUMP (04) - STEERING
27
4
3
14
22
33
20
6
31
2
23
11
28
15
5
26
5
26
12
18
16
10
1
13
34
21
10
32
10
19

Артикул

Название

Примечание

Количество

123273A1

O-RING KIT

ASSEMBLY - steering, hand, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump, Includes: 2 valves

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, manual steering, not shown

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, inlet, not shown

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

4

L30888

PIN

- roll

1шт.

1986600C1

KIT

- centering spring, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

10

238-6040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro

3шт.

Kit - seal, low torque

1шт.

11

S113037

PLATE

- spacer

1шт.

12

L30878

DRIVE SHAFT

SHAFT - drive, gerotor

1шт.

13

1343638C1

ROTOR

GEROTOR - set

1шт.

14

143723A1

SPACER

- gerotor

1шт.

15

136493A1

COVER

CAP - end (Replaces cap D82809)

1шт.

16

135866A1

SCREW,Flg, Torx, 5/16" x 1 3/4", Gr 8

BOLT - 12 point flange, special, 5/16 NF x 1-3/4 inch, grade 8

7шт.

18

L35368

RETAINER

- check ball

1шт.

19

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

Kit - seal, low torque

1шт.

21

D82806

VALVE SEAT

SEAT - ball

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

Kit - seal, low torque

1шт.

23

D82805

SET SCREW

SCREW - set

1шт.

26

D82804

RACE

- thrust, bearing

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

28

121179A1

SEAL

- teflon

1шт.

Kit - seal, low torque

1шт.

31

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

Kit - seal, low torque

1шт.

32

N13312

CYLINDER END CAP

BUSHING - seal gland

1шт.

33

S110169

WASHER

RING - retaining

1шт.

34

697494R91

OIL SEAL

SEAL - 1 inch ID, oil, 1 inch ID

1шт.

Kit - seal, low torque

1шт.

1343658C3

SEAL KIT

KIT - seal, low torque

1шт.

Выбрано товаров: 37
