Запчасти Case IH 2144 (5-04) - STEERING SYSTEM, SUPPLY AND RETURN (04) - STEERING

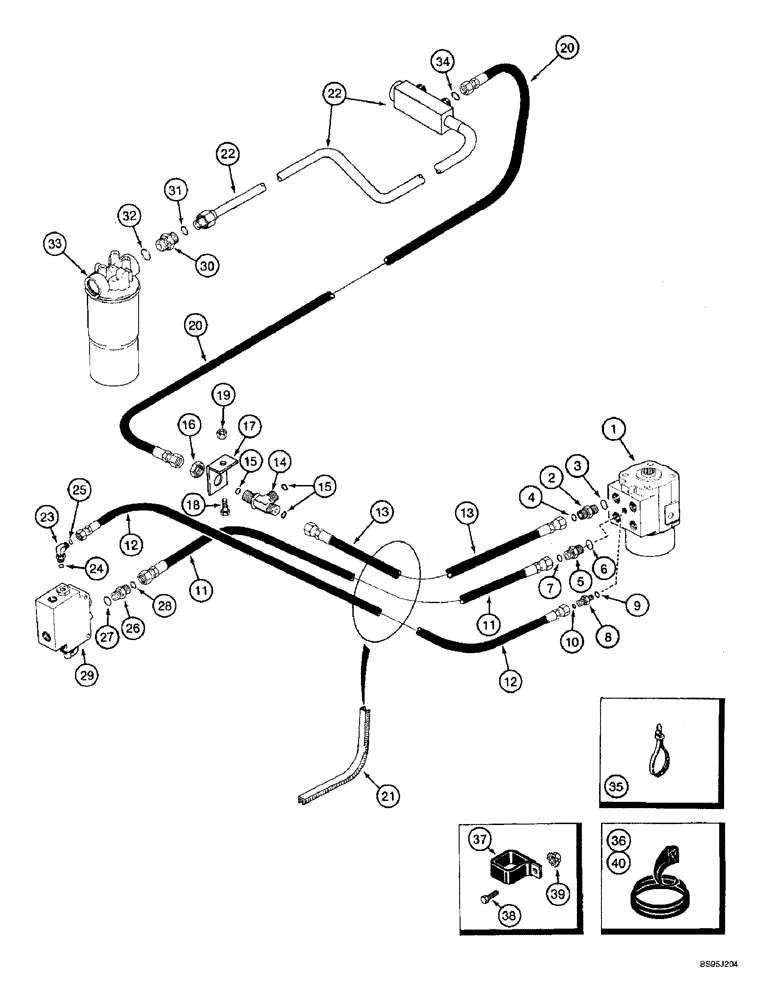

Схема запчастей Case IH 2144 - (5-04) - STEERING SYSTEM, SUPPLY AND RETURN (04) - STEERING
10
16
28
40
20
3
5
24
11
14
13
12
2
7
12
29
34
38
19
9
35
36
8
1
32
33
20
15
23
39
6
22
11
31
4
15
18
17
26
25
13
30
21
27
22
37

Артикул

Название

Примечание

Количество

1

123273A1

O-RING KIT

ASSEMBLY - steering, hand, parts list Figure 5-8

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 13/16-16 face seal x 3/4-16 inch O-ring boss, Includes Ref. 3 and 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

- straight, special, 11/16-16 face seal x 3/4-16 inch O-ring, Includes: Ref. 6 and 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 9 and 10

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

128006A1

HOSE

- steering supply, 79-15/16 inch (2030 mm) long

1шт.

12

128012A1

HOSE

- steering signal, 83-7/8 inch (2130 mm) long

1шт.

13

128009A1

FLEXIBLE HOSE

HOSE - steering return, 42-5/16 inch (1100 mm) long

1шт.

14

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

- 13/16-16 inch face seal branch x face seal x bulkhead face seal, Includes: Ref. 15

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

16

201-903

TUBE NUT,Blkhd, 13/16"-16

NUT, LOCK, Blkhd, 13/16"-16

1шт.

17

141130A1

SUPPORT

BRACKET - support, hydraulic line, bulkhead type

1шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

1шт.

20

141128A1

HOSE

Return Steering - 48 inch (1220 mm) long

1шт.

21

137818A1

GROMMET

GUARD - nylon, flexible edging, 210 mm long

1шт.

22

124372A1

HYD TUBE

TUBE - manifold, hydraulic return

1шт.

23

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

- 90 degree, 9/16-18 face seal x 7/16-20 inch adjustable O-ring boss, Includes: Ref. 24 and 25

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

201-106

HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB

ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 27 and 28

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

28

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

29

114851A2

VALVE

ASSEMBLY - priority, steering, parts list figure 5-48

1шт.

30

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

ADAPTER - straight, 1-7/16-12 face seal x 1-5/8-12 inch O-ring boss, Includes: Ref. 31 and 32

1шт.

31

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

32

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

33

87784C92

HYDRAULIC OIL FILTER

FILTER ASSEMBLY - hydraulic return, parts list Figure 8-6

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

35

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

36

1327979C1

MOLDING

TRIM - edge, 6 inch (152 mm) long, cut from 1330108CX bulk trim below

1шт.

37

1301387C2

CLIP

CLAMP - square, 2 inch ID

1шт.

38

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

1шт.

39

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

40

NSS

NOT SOLD SEPARAT

TRIM - edge, 12-5/16 inch (313 mm) long, cut from 1330108CX bulk trim below

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long

1шт.

Выбрано товаров: 41
