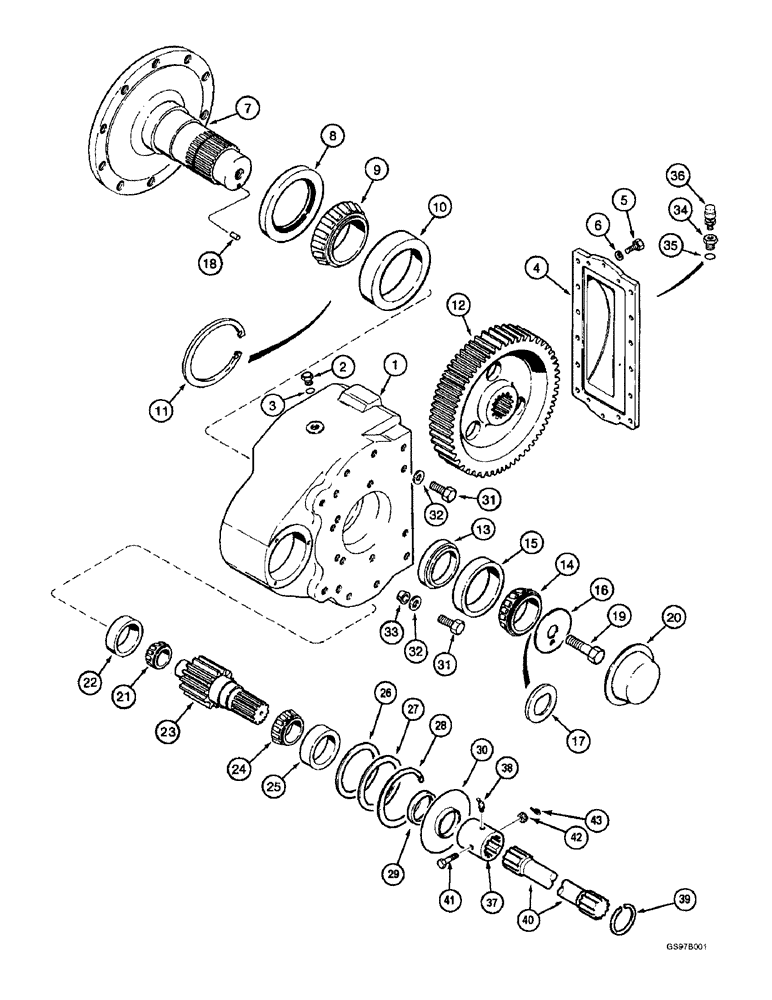

Запчасти Case IH 2144 (6-46) - FINAL DRIVE ASSEMBLY, HEAVY DUTY (03) - POWER TRAIN

1997415C3

REDUCER

DRIVE ASSEMBLY - final, heavy duty, Includes: Ref. 1 - 30

2шт.

1

135285A2

HOUSING

- final drive

1шт.

2

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

135286A1

COVER

- housing

1шт.

5

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

14шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

- flat, 17.5 x 30 x 4 mm, hardened

14шт.

7

135288A2

SHAFT

- output

1шт.

8

135293A1

OIL SEAL,158.75mm ID x 197mm OD x 12.7mm Thk

- oil

1шт.

9

135648A1

ROLLER BEARING,133.35mm ID x 46.04mm W

BEARING - tapered roller, outer shaft

1шт.

10

135649A1

BEARING CUP,196.85mm OD x 38.1mm W

CUP - tapered roller bearing, outer shaft

1шт.

11

135297A1

CIRCLIP

RING - retaining, drive gear

1шт.

12

135287A1

PINION

GEAR - final drive, 73 teeth

1шт.

13

135307A1

SPACER

- final drive

1шт.

14

135294A1

THRUST BEARING,71.44mm ID x 41.19mm W

BEARING - tapered roller, inner shaft

1шт.

15

71455R1

BEARING ASSY,136.53mm OD x 31.75mm W

CUP - tapered roller bearing, inner shaft

1шт.

16

135289A1

RETAINER

PLATE - bearing retainer

1шт.

17

135299A1

SHIM,0.051mm Thk

Bearing, Output shaft 0.051mm Thk

1шт.

17

135300A1

SHIM,0.457mm Thk

Bearing, Output shaft 0.457mm Thk

1шт.

17

135301A1

SHIM,0.635mm Thk

Bearing, Output shaft 0.635mm Thk

1шт.

18

37-1512

DOWEL,5/16" x 3/4"

PIN - dowel, 5/16 x 3/4 inch, hardened (Replaces dowel pin 837-8016)

1шт.

19

828-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

- hex, 24 - 3.0 x 90 mm, class 10.9

1шт.

20

135296A1

BEARING COVER

- final drive

1шт.

21

135295A1

ROLLER BEARING,44.46mm ID x 35.98mm W

BEARING - tapered roller, inner

1шт.

22

135650A1

BEARING CUP,101.6mm OD x 26.99mm W

CUP - tapered roller bearing, inner

1шт.

23

135290A1

SHAFT

- input, 12 teeth

1шт.

24

K4729

ROLLER BEARING,57.15mm ID x 30.96mm W

BEARING - tapered roller, outer shaft

1шт.

25

135651A1

BEARING CUP,104.78mm OD x 23.81mm W

CUP - tapered roller bearing, outer shaft

1шт.

26

135302A1

SHIM,88mm ID x 104mm OD x 0.05mm Thk

Bearing, Input shaft 0.051mm Thk

1шт.

26

135303A1

SHIM,88mm ID x 104mm OD x 0.46mm Thk

Bearing, Input shaft 0.46mm Thk

1шт.

26

135305A1

SHIM,88mm ID x 104mm OD x 0.63mm Thk

Bearing, Input shaft 0.63mm Thk

1шт.

27

135298A1

CIRCLIP

RING - retaining, if used

1шт.

27

193652A1

WASHER

- spacer

1шт.

28

101-21412

SNAP RING,#412, 4.430", Int

RING, SNAP, #412, 4.430", Int

1шт.

29

135292A1

OIL SEAL,55.6mm ID x 108.17mm OD x 12.7mm Thk

- lip, oil

1шт.

30

135291A1

GUARD

- seal

1шт.

31

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 60 mm, class 10.9

14шт.

32

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

- flat, special, 22 x 34 x 3.4 mm

14шт.

33

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

- tapered

4шт.

34

135950A1

ADAPTER

- straight, special, 1/8 PT x 1-1/16-12 inch O-ring boss, Includes: Ref. 35

2шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

36

219-434

BREATHER,1/8" - 27 NPT, Short, W/ Washer

VALVE - vent, includes felt washer, 1/8 PT x 1 inch

2шт.

37

184341C2

SPLINED COUPLING

COUPLING ASSEMBLY - axle drive shaft, Includes: Ref. 38

4шт.

38

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease, 65 degree, 1/4 drive type x 3/4 inch

1шт.

39

123763A1

SNAP RING

RING - snap, special

8шт.

40

123707A1

SHAFT

- axle drive, 612 mm, left-hand, with no axle extensions, Serial Range: -JJC0173150

1шт.

40

123706A1

SHAFT

- axle drive, 276 mm, right-hand, with no axle extensions, Serial Range: -JJC0173150

1шт.

41

113-2293

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

, Serial Range: -JJC0173150

4шт.

42

654049R1

LOCK NUT

- hex, self-locking, 3/8 inch NC, Serial Range: -JJC0173150

4шт.

43

21864R1

COTTER PIN

- retaining, S-type, Serial Range: -JJC013150

4шт.
